8TLJ

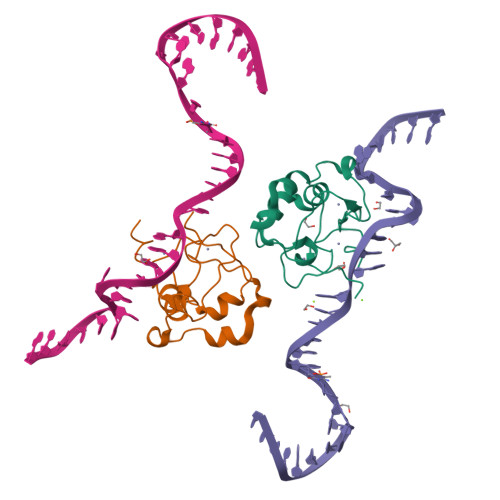

CDCA7 (Mouse) Binds Non-B-form 32-mer DNA oligo Containing a 5mC

  • Classification: DNA BINDING PROTEIN/DNA
  • Organism(s): Mus musculus
  • Expression System: Escherichia coli
  • Mutation(s): No

  • Deposited: 2023-07-26 Released: 2024-08-21
  • Deposition Author(s): Horton, J.R., Ren, R., Cheng, X.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), Cancer Prevention and Research Institute of Texas (CPRIT)

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.228
  • R-Value Work: 0.185
  • R-Value Observed: 0.187

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

The ICF syndrome protein CDCA7 harbors a unique DNA-binding domain that recognizes a CpG dyad in the context of a non-B DNA.

Hardikar, S.Ren, R.Ying, Z.Horton, J.R.Bramble, M.D.Liu, B.Lu, Y.Liu, B.Dan, J.Zhang, X.Cheng, X.Chen, T.

(2023) bioRxiv

  • DOI: https://doi.org/10.1101/2023.12.15.571946
  • Primary Citation of Related Structures:
    8TLE, 8TLF, 8TLG, 8TLH, 8TLJ, 8TLK

  • PubMed Abstract:

    CDCA7 , encoding a protein with a C-terminal cysteine-rich domain (CRD), is mutated in immunodeficiency, centromeric instability and facial anomalies (ICF) syndrome, a disease related to hypomethylation of juxtacentromeric satellite DNA. How CDCA7 directs DNA methylation to juxtacentromeric regions is unknown. Here, we show that the CDCA7 CRD adopts a unique zinc-binding structure that recognizes a CpG dyad in a non-B DNA formed by two sequence motifs. CDCA7, but not ICF mutants, preferentially binds the non-B DNA with strand-specific CpG hemi-methylation. The unmethylated sequence motif is highly enriched at centromeres of human chromosomes, whereas the methylated motif is distributed throughout the genome. At S phase, CDCA7, but not ICF mutants, is concentrated in constitutive heterochromatin foci, and the formation of such foci can be inhibited by exogenous hemi-methylated non-B DNA bound by the CRD. Binding of the non-B DNA formed in juxtacentromeric regions during DNA replication provides a mechanism by which CDCA7 controls the specificity of DNA methylation.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Cell division cycle-associated protein 7A,
C [auth B]
144Mus musculusMutation(s): 0
Gene Names: Cdca7
UniProt
Find proteins for Q9D0M2 (Mus musculus)
Explore Q9D0M2
Go to UniProtKB:  Q9D0M2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9D0M2
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains LengthOrganismImage
DNA (32-MER)B [auth X],
D [auth C]
32Mus musculus
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL

Download Ideal Coordinates CCD File
E [auth A],
N [auth X],
S [auth C]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
F [auth A]
G [auth A]
H [auth A]
P [auth B]
Q [auth B]
F [auth A],
G [auth A],
H [auth A],
P [auth B],
Q [auth B],
R [auth B]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
I [auth A],
J [auth A],
M [auth X],
O [auth X]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
K [auth X],
L [auth X]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.228
  • R-Value Work: 0.185
  • R-Value Observed: 0.187
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 169.874α = 90
b = 31.533β = 110.75
c = 91.823γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM049245-23
Cancer Prevention and Research Institute of Texas (CPRIT)United StatesRR160029

Revision History  (Full details and data files)

  • Version 1.0: 2024-08-21
    Type: Initial release
  • Version 1.1: 2024-08-28
    Changes: Database references
