8SZQ

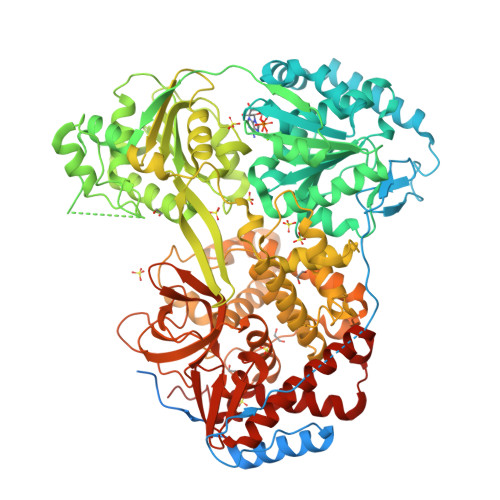

Cat DHX9 bound to ADP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.71 Å
  • R-Value Free: 0.274
  • R-Value Work: 0.226

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Crystal structures of the DExH-box RNA helicase DHX9.

Lee, Y.T.Sickmier, E.A.Grigoriu, S.Castro, J.Boriack-Sjodin, P.A.

(2023) Acta Crystallogr D Struct Biol 79: 980-991

  • DOI: https://doi.org/10.1107/S2059798323007611
  • Primary Citation of Related Structures:
    8SZP, 8SZQ, 8SZR

  • PubMed Abstract:

    DHX9 is a DExH-box RNA helicase with versatile functions in transcription, translation, RNA processing and regulation of DNA replication. DHX9 has recently emerged as a promising target for oncology, but to date no mammalian structures have been published. Here, crystal structures of human, dog and cat DHX9 bound to ADP are reported. The three mammalian DHX9 structures share identical structural folds. Additionally, the overall architecture and the individual domain structures of DHX9 are highly conserved with those of MLE, the Drosophila orthologue of DHX9 previously solved in complex with RNA and a transition-state analogue of ATP. Due to differences in the bound substrates and global domain orientations, the localized loop conformations and occupancy of dsRNA-binding domain 2 (dsRBD2) differ between the mammalian DHX9 and MLE structures. The combined effects of the structural changes considerably alter the RNA-binding channel, providing an opportunity to compare active and inactive states of the helicase. Finally, the mammalian DHX9 structures provide a potential tool for structure-based drug-design efforts.


  • Organizational Affiliation

    Accent Therapeutics, 1050 Waltham Street, Lexington, MA 02421, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
RNA helicase1,010Felis catusMutation(s): 0
Gene Names: DHX9
EC: 3.6.4.13
UniProt
Find proteins for M3WPI7 (Felis catus)
Explore M3WPI7
Go to UniProtKB:  M3WPI7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupM3WPI7
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ADP (Subject of Investigation/LOI)
Query on ADP

Download Ideal Coordinates CCD File
B [auth A]ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
D [auth A]
E [auth A]
F [auth A]
G [auth A]
H [auth A]
D [auth A],
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A],
J [auth A],
K [auth A]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
EDO
Query on EDO

Download Ideal Coordinates CCD File
L [auth A],
M [auth A],
N [auth A],
O [auth A],
P [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
C [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.71 Å
  • R-Value Free: 0.274
  • R-Value Work: 0.226
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 86.01α = 90
b = 86.01β = 90
c = 348.85γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2023-08-02
    Type: Initial release
  • Version 1.1: 2023-11-01
    Changes: Data collection, Database references
  • Version 1.2: 2023-11-08
    Changes: Database references
