8OEA | pdb_00008oea

Crystal structure of the Z-DNA duplex d(CGCGCG) soaked in copper(II) chloride, in preparation to hydrogen peroxide soaking, first collection at room temperature

PDB DOI: https://doi.org/10.2210/pdb8OEA/pdb
NAKB: 8OEA

Classification: DNA
Organism(s): synthetic construct
Mutation(s): No

Deposited: 2023-03-10 Released: 2024-03-27
Deposition Author(s): Lambert, M.C., Hall, J.P.
Funding Organization(s): Engineering and Physical Sciences Research Council

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free:
0.228 (Depositor), 0.218 (DCC)
R-Value Work:
0.179 (Depositor), 0.180 (DCC)
R-Value Observed:
0.184 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8OEA

This is version 1.0 of the entry. See complete history.

Literature

Structural analysis of peroxide-soaked DNA crystals containing ordered copper binding sites: towards understanding oxidative damage at the atomic scale

Lambert, M.C., Hall, J.P.

To be published.

Macromolecule Content

Total Structure Weight: 7.94 kDa
Atom Count: 594
Modeled Residue Count: 24
Deposited Residue Count: 24
Unique nucleic acid chains: 1

Macromolecules

Find similar nucleic acids by: Sequence

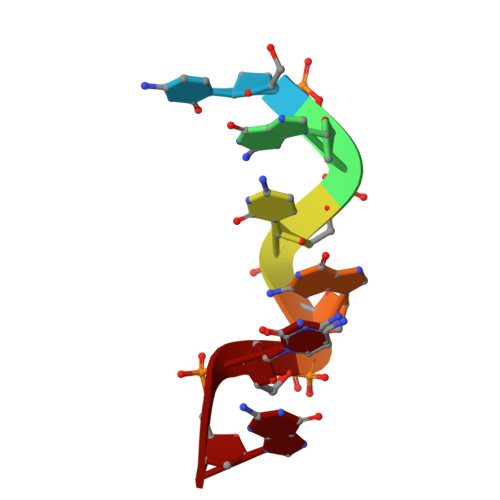

Molecule	Chains	Length	Organism	Image
Entity ID: 1
DNA (5'-D(CPGPCPGPCPG)-3')	A, B, C, D	6	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CU (Subject of Investigation/LOI) Query on CU Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth B] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth C] SDF format, chain L [auth C] SDF format, chain M [auth C] SDF format, chain N [auth D] SDF format, chain O [auth D] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth B] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth C] MOL2 format, chain L [auth C] MOL2 format, chain M [auth C] MOL2 format, chain N [auth D] MOL2 format, chain O [auth D] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth B] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth C] mmCIF format, chain L [auth C] mmCIF format, chain M [auth C] mmCIF format, chain N [auth D] mmCIF format, chain O [auth D]	E [auth A] F [auth A] G [auth A] H [auth B] I [auth B] E [auth A], F [auth A], G [auth A], H [auth B], I [auth B], J [auth B], K [auth C], L [auth C], M [auth C], N [auth D], O [auth D]	COPPER (II) ION Cu JPVYNHNXODAKFH-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth C] Focus chain L [auth C] Focus chain M [auth C] Focus chain N [auth D] Focus chain O [auth D] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth C] Focus chain L [auth C] Focus chain M [auth C] Focus chain N [auth D] Focus chain O [auth D]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free: 0.228 (Depositor), 0.218 (DCC)
R-Value Work: 0.179 (Depositor), 0.180 (DCC)
R-Value Observed: 0.184 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 18.091	α = 90
b = 30.651	β = 90
c = 42.999	γ = 90

Software Package:

Software Name	Purpose
CrysalisPro	data collection
CrysalisPro	data reduction
CrysalisPro	data scaling
PHENIX	phasing
PHENIX	refinement
Coot	model building

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2024-03-27

Deposition Author(s):

Funding Organization	Location	Grant Number
Engineering and Physical Sciences Research Council	United Kingdom	--

Revision History (Full details and data files)

Version 1.0: 2024-03-27
Type: Initial release
