8J25

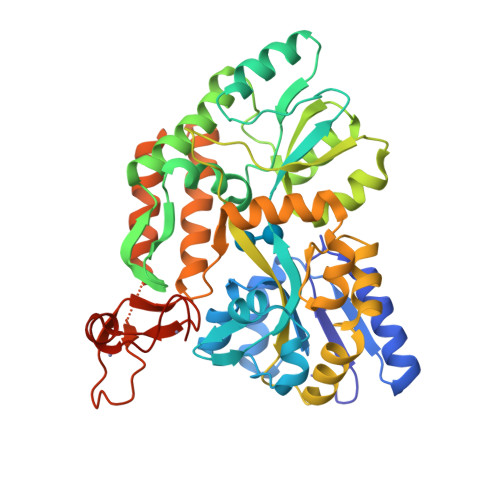

Crystal structure of PML B-box2 mutant


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free: 0.248
  • R-Value Work: 0.204
  • R-Value Observed: 0.206

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural Basis of PML-RARA Oncoprotein Targeting by Arsenic Unravels a Cysteine Rheostat Controlling PML Body Assembly and Function.

Bercier, P.Wang, Q.Q.Zang, N.Zhang, J.Yang, C.Maimaitiyiming, Y.Abou-Ghali, M.Berthier, C.Wu, C.Niwa-Kawakita, M.Dirami, T.Geoffroy, M.C.Ferhi, O.Quentin, S.Benhenda, S.Ogra, Y.Gueroui, Z.Zhou, C.Naranmandura, H.de The, H.Lallemand-Breitenbach, V.

(2023) Cancer Discov 13: 2548-2565

  • DOI: https://doi.org/10.1158/2159-8290.CD-23-0453
  • Primary Citation of Related Structures:
    8J25, 8J2P

  • PubMed Abstract:

    PML nuclear bodies (NB) are disrupted in PML-RARA-driven acute promyelocytic leukemia (APL). Arsenic trioxide (ATO) cures 70% of patients with APL, driving PML-RARA degradation and NB reformation. In non-APL cells, arsenic binding onto PML also amplifies NB formation. Yet, the actual molecular mechanism(s) involved remain(s) elusive. Here, we establish that PML NBs display some features of liquid-liquid phase separation and that ATO induces a gel-like transition. PML B-box-2 structure reveals an alpha helix driving B2 trimerization and positioning a cysteine trio to form an ideal arsenic-binding pocket. Altering either of the latter impedes ATO-driven NB assembly, PML sumoylation, and PML-RARA degradation, mechanistically explaining clinical ATO resistance. This B2 trimer and the C213 trio create an oxidation-sensitive rheostat that controls PML NB assembly dynamics and downstream signaling in both basal state and during stress response. These findings identify the structural basis for arsenic targeting of PML that could pave the way to novel cancer drugs. Arsenic curative effects in APL rely on PML targeting. We report a PML B-box-2 structure that drives trimer assembly, positioning a cysteine trio to form an arsenic-binding pocket, which is disrupted in resistant patients. Identification of this ROS-sensitive triad controlling PML dynamics and functions could yield novel drugs. See related commentary by Salomoni, p. 2505. This article is featured in Selected Articles from This Issue, p. 2489.


  • Organizational Affiliation

    Center for Interdisciplinary Research in Biology (CIRB), Collège de France, CNRS, INSERM, Université PSL, Paris, France.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Maltose/maltodextrin-binding periplasmic protein,Protein PML428Escherichia coli K-12Homo sapiens
This entity is chimeric
Mutation(s): 2
Gene Names: malEb4034JW3994PMLMYLPP8675RNF71TRIM19
EC: 2.3.2
UniProt & NIH Common Fund Data Resources
Find proteins for P0AEX9 (Escherichia coli (strain K12))
Explore P0AEX9
Go to UniProtKB:  P0AEX9
Find proteins for P29590 (Homo sapiens)
Explore P29590
Go to UniProtKB:  P29590
PHAROS:  P29590
GTEx:  ENSG00000140464
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsP29590P0AEX9
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 2
MoleculeChains Length2D Diagram Glycosylation3D Interactions
alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
B
2N/A
Glycosylation Resources
GlyTouCan:  G07411ON
GlyCosmos:  G07411ON
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free: 0.248
  • R-Value Work: 0.204
  • R-Value Observed: 0.206
  • Space Group: H 3 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 121.568α = 90
b = 121.568β = 90
c = 161.332γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2023-09-20
    Type: Initial release
  • Version 1.1: 2023-12-20
    Changes: Database references
