8HOG

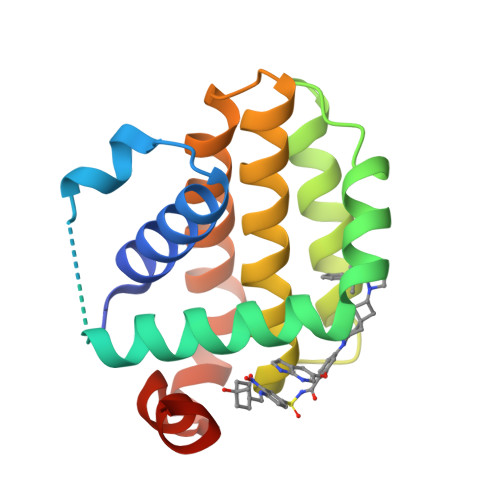

Crystal structure of Bcl-2 in complex with sonrotoclax


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.238
  • R-Value Work: 0.216
  • R-Value Observed: 0.217

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Sonrotoclax overcomes BCL2 G101V mutation-induced venetoclax resistance in preclinical models of hematologic malignancy.

Liu, J.Li, S.Wang, Q.Feng, Y.Xing, H.Yang, X.Guo, Y.Guo, Y.Sun, H.Liu, X.Yang, S.Mei, Z.Zhu, Y.Cheng, Z.Chen, S.Xu, M.Zhang, W.Wan, N.Wang, J.Ma, Y.Zhang, S.Luan, X.Xu, A.Li, L.Wang, H.Yang, X.Hong, Y.Xue, H.Yuan, X.Hu, N.Song, X.Wang, Z.Liu, X.Wang, L.Liu, Y.

(2024) Blood 143: 1825-1836

  • DOI: https://doi.org/10.1182/blood.2023019706
  • Primary Citation of Related Structures:
    8HOG, 8HOH, 8HOI

  • PubMed Abstract:

    Venetoclax, the first-generation inhibitor of the apoptosis regulator B-cell lymphoma 2 (BCL2), disrupts the interaction between BCL2 and proapoptotic proteins, promoting the apoptosis in malignant cells. Venetoclax is the mainstay of therapy for relapsed chronic lymphocytic leukemia and is under investigation in multiple clinical trials for the treatment of various cancers. Although venetoclax treatment can result in high rates of durable remission, relapse has been widely observed, indicating the emergence of drug resistance. The G101V mutation in BCL2 is frequently observed in patients who relapsed treated with venetoclax and sufficient to confer resistance to venetoclax by interfering with compound binding. Therefore, the development of next-generation BCL2 inhibitors to overcome drug resistance is urgently needed. In this study, we discovered that sonrotoclax, a potent and selective BCL2 inhibitor, demonstrates stronger cytotoxic activity in various hematologic cancer cells and more profound tumor growth inhibition in multiple hematologic tumor models than venetoclax. Notably, sonrotoclax effectively inhibits venetoclax-resistant BCL2 variants, such as G101V. The crystal structures of wild-type BCL2/BCL2 G101V in complex with sonrotoclax revealed that sonrotoclax adopts a novel binding mode within the P2 pocket of BCL2 and could explain why sonrotoclax maintains stronger potency than venetoclax against the G101V mutant. In summary, sonrotoclax emerges as a potential second-generation BCL2 inhibitor for the treatment of hematologic malignancies with the potential to overcome BCL2 mutation-induced venetoclax resistance. Sonrotoclax is currently under investigation in multiple clinical trials.


  • Organizational Affiliation

    Department of Molecular Science, BeiGene (Beijing) Co, Ltd, Beijing, People's Republic of China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Apoptosis regulator Bcl-2162Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P10415 (Homo sapiens)
Explore P10415
Go to UniProtKB:  P10415
PHAROS:  P10415
GTEx:  ENSG00000171791
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP10415
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
98I (Subject of Investigation/LOI)
Query on 98I

Download Ideal Coordinates CCD File
B [auth A]~{N}-[4-[(4-methyl-4-oxidanyl-cyclohexyl)methylamino]-3-nitro-phenyl]sulfonyl-4-[2-[(2~{S})-2-(2-propan-2-ylphenyl)pyrrolidin-1-yl]-7-azaspiro[3.5]nonan-7-yl]-2-(1~{H}-pyrrolo[2,3-b]pyridin-5-yloxy)benzamide
C49 H59 N7 O7 S
ZQTKOYMWCCSKON-XKXNWSITSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.238
  • R-Value Work: 0.216
  • R-Value Observed: 0.217
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 32.56α = 90
b = 47.549β = 90
c = 101.084γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2024-01-17
    Type: Initial release
  • Version 1.1: 2024-01-31
    Changes: Database references
  • Version 1.2: 2024-05-15
    Changes: Database references
