8G0E

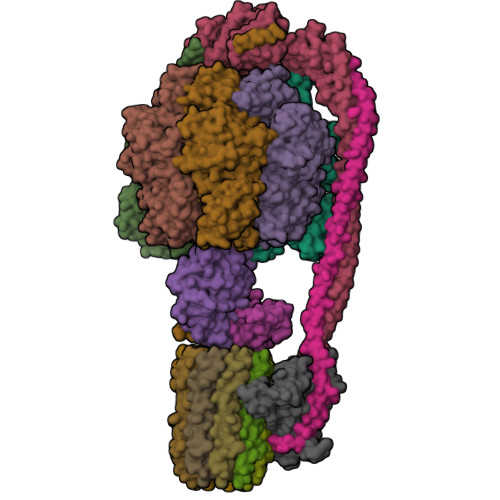

Cryo-EM structure of TBAJ-876-bound Mycobacterium smegmatis ATP synthase rotational state 3


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Mechanism of mycobacterial ATP synthase inhibition by squaramides and second generation diarylquinolines.

Courbon, G.M.Palme, P.R.Mann, L.Richter, A.Imming, P.Rubinstein, J.L.

(2023) EMBO J 42: e113687-e113687

  • DOI: https://doi.org/10.15252/embj.2023113687
  • Primary Citation of Related Structures:
    8G07, 8G08, 8G09, 8G0A, 8G0B, 8G0C, 8G0D, 8G0E

  • PubMed Abstract:

    Mycobacteria, such as Mycobacterium tuberculosis, depend on the activity of adenosine triphosphate (ATP) synthase for growth. The diarylquinoline bedaquiline (BDQ), a mycobacterial ATP synthase inhibitor, is an important medication for treatment of drug-resistant tuberculosis but suffers from off-target effects and is susceptible to resistance mutations. Consequently, both new and improved mycobacterial ATP synthase inhibitors are needed. We used electron cryomicroscopy and biochemical assays to study the interaction of Mycobacterium smegmatis ATP synthase with the second generation diarylquinoline TBAJ-876 and the squaramide inhibitor SQ31f. The aryl groups of TBAJ-876 improve binding compared with BDQ, while SQ31f, which blocks ATP synthesis ~10 times more potently than ATP hydrolysis, binds a previously unknown site in the enzyme's proton-conducting channel. Remarkably, BDQ, TBAJ-876, and SQ31f all induce similar conformational changes in ATP synthase, suggesting that the resulting conformation is particularly suited for drug binding. Further, high concentrations of the diarylquinolines uncouple the transmembrane proton motive force while for SQ31f they do not, which may explain why high concentrations of diarylquinolines, but not SQ31f, have been reported to kill mycobacteria.


  • Organizational Affiliation

    Molecular Medicine Program, The Hospital for Sick Children, Toronto, ON, Canada.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit alpha
A, B, C
548Mycolicibacterium smegmatis MC2 155Mutation(s): 0
EC: 7.1.2.2
Membrane Entity: Yes
UniProt
Find proteins for A0R202 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R202
Go to UniProtKB:  A0R202
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R202
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit beta
D, E, F
475Mycolicibacterium smegmatis MC2 155Mutation(s): 0
EC: 7.1.2.2
Membrane Entity: Yes
UniProt
Find proteins for A0R200 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R200
Go to UniProtKB:  A0R200
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R200
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase gamma chain307Mycolicibacterium smegmatis MC2 155Mutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0R201 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R201
Go to UniProtKB:  A0R201
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R201
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase epsilon chain121Mycolicibacterium smegmatis MC2 155Mutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0R1Z9 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R1Z9
Go to UniProtKB:  A0R1Z9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R1Z9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit bI [auth b]170Mycolicibacterium smegmatis MC2 155Mutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0R204 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R204
Go to UniProtKB:  A0R204
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R204
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit b-deltaJ [auth d]445Mycolicibacterium smegmatis MC2 155Mutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0R203 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R203
Go to UniProtKB:  A0R203
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R203
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit c86Mycolicibacterium smegmatis MC2 155Mutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0R205 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R205
Go to UniProtKB:  A0R205
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R205
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit aT [auth a]252Mycolicibacterium smegmatis MC2 155Mutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0R206 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R206
Go to UniProtKB:  A0R206
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R206
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
YGR (Subject of Investigation/LOI)
Query on YGR

Download Ideal Coordinates CCD File
DA [auth 9]
EA [auth 3]
FA [auth 4]
GA [auth 5]
HA [auth 6]
DA [auth 9],
EA [auth 3],
FA [auth 4],
GA [auth 5],
HA [auth 6],
IA [auth 7],
JA [auth 8]
(1R,2S)-1-(6-bromo-2-methoxyquinolin-3-yl)-2-(2,6-dimethoxypyridin-4-yl)-4-(dimethylamino)-1-(2,3,6-trimethoxypyridin-4-yl)butan-2-ol
C31 H37 Br N4 O7
HHDDKDPLFXIPBX-DLFZDVPBSA-N
ATP
Query on ATP

Download Ideal Coordinates CCD File
AA [auth E],
U [auth A],
W [auth B],
Y [auth C]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
PO4
Query on PO4

Download Ideal Coordinates CCD File
CA [auth F]PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
MG
Query on MG

Download Ideal Coordinates CCD File
BA [auth E],
V [auth A],
X [auth B],
Z [auth C]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Canadian Institutes of Health Research (CIHR)CanadaPJT162186

Revision History  (Full details and data files)

  • Version 1.0: 2023-02-15
    Type: Initial release
  • Version 1.1: 2023-07-12
    Changes: Database references
  • Version 1.2: 2023-08-09
    Changes: Database references
  • Version 1.3: 2024-06-19
    Changes: Data collection
