7ZGU | pdb_00007zgu

Human NLRP3-deltaPYD hexamer

PDB DOI: https://doi.org/10.2210/pdb7ZGU/pdb
EM Map EMD-14713: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Spodoptera frugiperda
Mutation(s): No

Deposited: 2022-04-04 Released: 2022-05-18
Deposition Author(s): Raisch, T., Machtens, D.A., Bresch, I.B., Eberhage, J., Prumbaum, D., Reubold, T.F., Raunser, S., Eschenburg, S.
Funding Organization(s): Max Planck Society

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.40 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

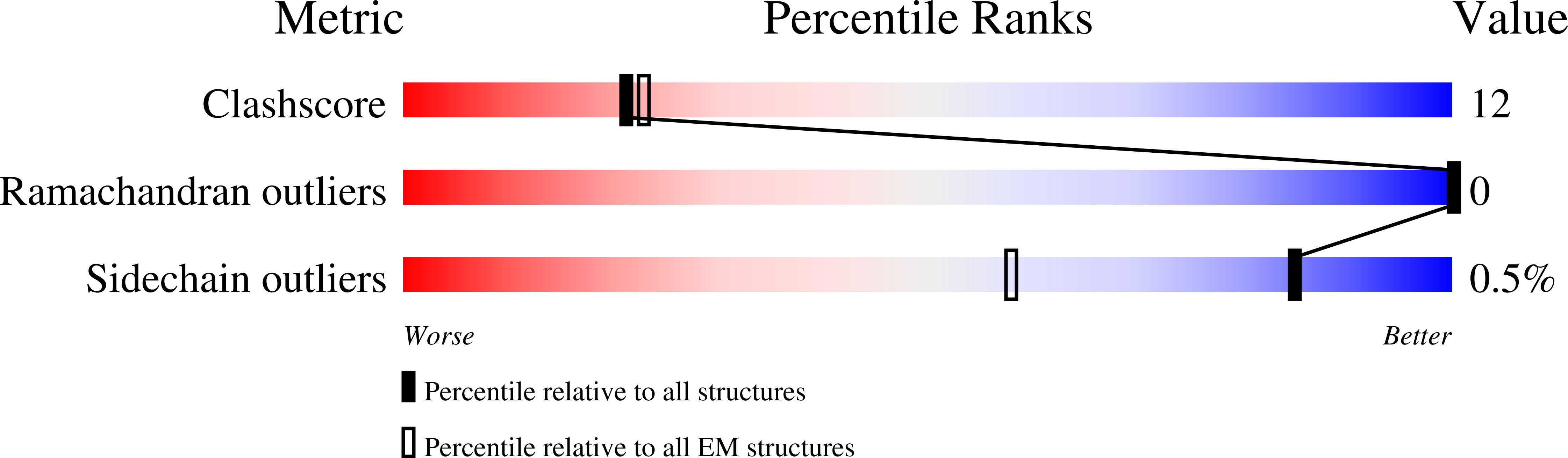

Validation slider image for 7ZGU

This is version 1.2 of the entry. See complete history.

Literature

Cryo-EM structure of the NEK7-independent NLRP3 inflammasome

Raisch, T., Machtens, D.A., Bresch, I.B., Eberhage, J., Prumbaum, D., Reubold, T.F., Raunser, S., Eschenburg, S.

To be published.

Macromolecule Content

Total Structure Weight: 633.58 kDa
Atom Count: 38,940
Modeled Residue Count: 4,854
Deposited Residue Count: 5,544
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
NACHT, LRR and PYD domains-containing protein 3	A, B, C, D, E A, B, C, D, E, F	924	Homo sapiens	Mutation(s): 0 Gene Names: NLRP3, C1orf7, CIAS1, NALP3, PYPAF1 EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for Q96P20 (Homo sapiens) Explore Q96P20 Go to UniProtKB: Q96P20
PHAROS: Q96P20
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q96P20
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP Query on ADP Download:Ideal Coordinates CCD File SDF format, chain L [auth F] SDF format, chain K [auth E] SDF format, chain J [auth D] SDF format, chain I [auth C] SDF format, chain H [auth B] SDF format, chain G [auth A] MOL2 format, chain L [auth F] MOL2 format, chain K [auth E] MOL2 format, chain J [auth D] MOL2 format, chain I [auth C] MOL2 format, chain H [auth B] MOL2 format, chain G [auth A] mmCIF format, chain L [auth F] mmCIF format, chain K [auth E] mmCIF format, chain J [auth D] mmCIF format, chain I [auth C] mmCIF format, chain H [auth B] mmCIF format, chain G [auth A]	G [auth A] H [auth B] I [auth C] J [auth D] K [auth E] G [auth A], H [auth B], I [auth C], J [auth D], K [auth E], L [auth F]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth C] Focus chain J [auth D] Focus chain K [auth E] Focus chain L [auth F] Interactions & Density Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth C] Focus chain J [auth D] Focus chain K [auth E] Focus chain L [auth F]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.40 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	SPHIRE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2022-05-18

Deposition Author(s):

Funding Organization	Location	Grant Number
Max Planck Society	Germany	--

Revision History (Full details and data files)

Version 1.0: 2022-05-18
Type: Initial release
Version 1.1: 2024-07-24
Changes: Data collection
Version 1.2: 2025-07-02
Changes: Data collection, Structure summary
