7VZG

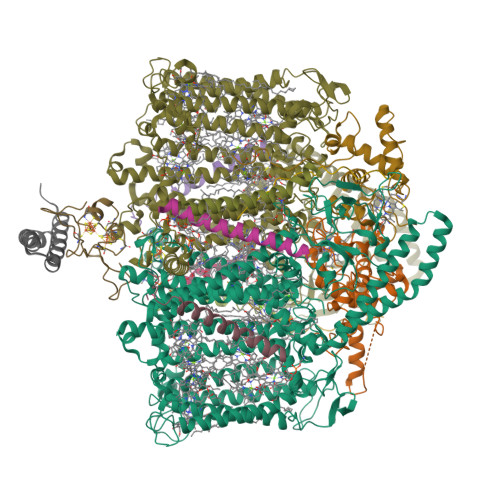

Structure of the Acidobacteria homodimeric reaction center bound with cytochrome c (the larger form)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.61 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structure of the Acidobacteria homodimeric reaction center bound with cytochrome c.

Dong, S.Huang, G.Wang, C.Wang, J.Sui, S.F.Qin, X.

(2022) Nat Commun 13: 7745-7745

  • DOI: https://doi.org/10.1038/s41467-022-35460-6
  • Primary Citation of Related Structures:
    7VZG

  • PubMed Abstract:

    Photosynthesis converts light energy to chemical energy to fuel life on earth. Light energy is harvested by antenna pigments and transferred to reaction centers (RCs) to drive the electron transfer (ET) reactions. Here, we present cryo-electron microscopy (cryo-EM) structures of two forms of the RC from the microaerophilic Chloracidobacterium thermophilum (CabRC): one containing 10 subunits, including two different cytochromes; and the other possessing two additional subunits, PscB and PscZ. The larger form contained 2 Zn-bacteriochlorophylls, 16 bacteriochlorophylls, 10 chlorophylls, 2 lycopenes, 2 hemes, 3 Fe 4 S 4 clusters, 12 lipids, 2 Ca 2+ ions and 6 water molecules, revealing a type I RC with an ET chain involving two hemes and a hybrid antenna containing bacteriochlorophylls and chlorophylls. Our results provide a structural basis for understanding the excitation energy and ET within the CabRC and offer evolutionary insights into the origin and adaptation of photosynthetic RCs.


  • Organizational Affiliation

    School of Biological Science and Technology, University of Jinan, Jinan, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
PscAA,
G [auth a]
858Chloracidobacterium thermophilumMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for G2LDR8 (Chloracidobacterium thermophilum (strain B))
Explore G2LDR8
Go to UniProtKB:  G2LDR8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2LDR8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome c, mono-and diheme variantsB [auth C]204Chloracidobacterium thermophilumMutation(s): 0
UniProt
Find proteins for G2LDR4 (Chloracidobacterium thermophilum (strain B))
Explore G2LDR4
Go to UniProtKB:  G2LDR4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2LDR4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
PscEC [auth E],
I [auth e]
35Chloracidobacterium thermophilumMutation(s): 0
UniProt
Find proteins for G2LK98 (Chloracidobacterium thermophilum (strain B))
Explore G2LK98
Go to UniProtKB:  G2LK98
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2LK98
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
PscFD [auth F],
J [auth f]
35Chloracidobacterium thermophilumMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for G2LEN5 (Chloracidobacterium thermophilum (strain B))
Explore G2LEN5
Go to UniProtKB:  G2LEN5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2LEN5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
PscGE [auth G],
K [auth g]
38Chloracidobacterium thermophilumMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for G2LJ20 (Chloracidobacterium thermophilum (strain B))
Explore G2LJ20
Go to UniProtKB:  G2LJ20
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2LJ20
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
undefined polypeptideF [auth H],
L [auth h]
19Chloracidobacterium thermophilumMutation(s): 0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome c domain-containing proteinH [auth c]145Chloracidobacterium thermophilumMutation(s): 0
UniProt
Find proteins for G2LDR3 (Chloracidobacterium thermophilum (strain B))
Explore G2LDR3
Go to UniProtKB:  G2LDR3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2LDR3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem P840 reaction center iron-sulfur proteinM [auth B]76Chloracidobacterium thermophilumMutation(s): 0
UniProt
Find proteins for A8DJF8 (Chloracidobacterium thermophilum)
Explore A8DJF8
Go to UniProtKB:  A8DJF8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA8DJF8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
PscD'N [auth D]70Chloracidobacterium thermophilumMutation(s): 0
UniProt
Find proteins for G2LHG2 (Chloracidobacterium thermophilum (strain B))
Explore G2LHG2
Go to UniProtKB:  G2LHG2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2LHG2
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 11 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
2GO (Subject of Investigation/LOI)
Query on 2GO

Download Ideal Coordinates CCD File
DB [auth a],
O [auth A]
[methyl 9-acetyl-14-ethyl-20-hydroxy-4,8,13,18-tetramethyl-3-{3-oxo-3-[(3,7,11,15-tetramethylhexadec-2-en-1-yl)oxy]propyl}-3,4,20,21-tetradehydrophorbine-21-carboxylatato(2-)-kappa~4~N~23~,N~24~,N~25~,N~26~]zinc
C55 H70 N4 O6 Zn
WIUVDOQKCIQUQM-HCIDKWDRSA-L
BCL (Subject of Investigation/LOI)
Query on BCL

Download Ideal Coordinates CCD File
EB [auth a]
FB [auth a]
GB [auth a]
HB [auth a]
IB [auth a]
EB [auth a],
FB [auth a],
GB [auth a],
HB [auth a],
IB [auth a],
JB [auth a],
KB [auth a],
LB [auth a],
P [auth A],
Q [auth A],
R [auth A],
S [auth A],
T [auth A],
U [auth A],
V [auth A],
W [auth A]
BACTERIOCHLOROPHYLL A
C55 H74 Mg N4 O6
DSJXIQQMORJERS-AGGZHOMASA-M
CLA (Subject of Investigation/LOI)
Query on CLA

Download Ideal Coordinates CCD File
BB [auth a]
MB [auth a]
NB [auth a]
OB [auth a]
PB [auth a]
BB [auth a],
MB [auth a],
NB [auth a],
OB [auth a],
PB [auth a],
SA [auth A],
UA [auth A],
X [auth A],
Y [auth A],
Z [auth A]
CHLOROPHYLL A
C55 H72 Mg N4 O5
ATNHDLDRLWWWCB-AENOIHSZSA-M
85N (Subject of Investigation/LOI)
Query on 85N

Download Ideal Coordinates CCD File
AB [auth G],
CB [auth a],
OC [auth g],
TA [auth A]
[(2~{S})-2-[[(1~{R})-1,2-bis(13-methyltetradecanoyloxy)ethoxy]methyl]-3-oxidanyl-3-oxidanylidene-propyl]-trimethyl-azanium
C39 H76 N O7
HRFZWHLOBWLUBX-ZGAWMTGXSA-O
85I (Subject of Investigation/LOI)
Query on 85I

Download Ideal Coordinates CCD File
CA [auth A]
DA [auth A]
EA [auth A]
SB [auth a]
TB [auth a]
CA [auth A],
DA [auth A],
EA [auth A],
SB [auth a],
TB [auth a],
UB [auth a]
[(2~{R})-2-[2-(methylamino)ethoxy-oxidanyl-phosphoryl]oxy-2-(13-methyltetradecanoyloxy)ethyl] 13-methyltetradecanoate
C35 H70 N O8 P
JRBIDHJPLMRMHE-PGUFJCEWSA-N
84Q (Subject of Investigation/LOI)
Query on 84Q

Download Ideal Coordinates CCD File
VB [auth a],
XA [auth E]
[(2S)-2-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-2-(13-methyltetradecanoyloxy)ethyl] 13-methyltetradecanoate
C34 H68 N O8 P
TWGQVFCVUIINRS-UMSFTDKQSA-N
HEC (Subject of Investigation/LOI)
Query on HEC

Download Ideal Coordinates CCD File
KC [auth c],
VA [auth C]
HEME C
C34 H34 Fe N4 O4
HXQIYSLZKNYNMH-LJNAALQVSA-N
LYC
Query on LYC

Download Ideal Coordinates CCD File
AA [auth A],
JC [auth c]
LYCOPENE
C40 H56
OAIJSZIZWZSQBC-GYZMGTAESA-N
SF4
Query on SF4

Download Ideal Coordinates CCD File
PC [auth B],
QC [auth B],
RB [auth a]
IRON/SULFUR CLUSTER
Fe4 S4
LJBDFODJNLIPKO-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
BA [auth A],
QB [auth a]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
UNL (Subject of Investigation/LOI)
Query on UNL

Download Ideal Coordinates CCD File
AC [auth a]
BC [auth a]
CC [auth a]
DC [auth a]
EC [auth a]
AC [auth a],
BC [auth a],
CC [auth a],
DC [auth a],
EC [auth a],
FA [auth A],
FC [auth a],
GA [auth A],
GC [auth a],
HA [auth A],
HC [auth a],
IA [auth A],
IC [auth a],
JA [auth A],
KA [auth A],
LA [auth A],
LC [auth c],
MA [auth A],
MC [auth e],
NA [auth A],
NC [auth e],
OA [auth A],
PA [auth A],
QA [auth A],
RA [auth A],
WA [auth C],
WB [auth a],
XB [auth a],
YA [auth E],
YB [auth a],
ZA [auth E],
ZB [auth a]
Unknown ligand
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.61 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2023-02-22
    Type: Initial release
