7S6P

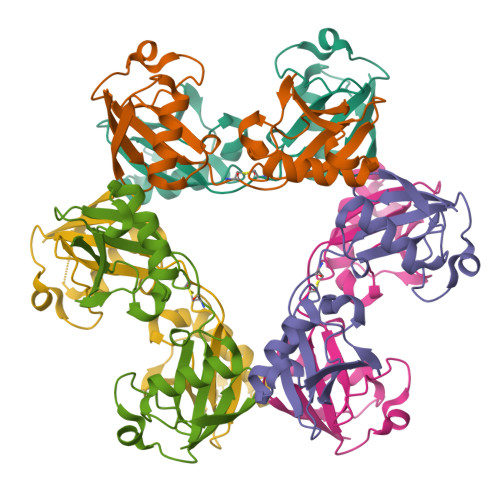

The crystal structure of human ISG15


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.15 Å
  • R-Value Free: 0.268
  • R-Value Work: 0.221
  • R-Value Observed: 0.223

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Dual domain recognition determines SARS-CoV-2 PLpro selectivity for human ISG15 and K48-linked di-ubiquitin.

Wydorski, P.M.Osipiuk, J.Lanham, B.T.Tesar, C.Endres, M.Engle, E.Jedrzejczak, R.Mullapudi, V.Michalska, K.Fidelis, K.Fushman, D.Joachimiak, A.Joachimiak, L.A.

(2023) Nat Commun 14: 2366-2366

  • DOI: https://doi.org/10.1038/s41467-023-38031-5
  • Primary Citation of Related Structures:
    7RBR, 7RBS, 7S6O, 7S6P, 7UV5

  • PubMed Abstract:

    The Papain-like protease (PLpro) is a domain of a multi-functional, non-structural protein 3 of coronaviruses. PLpro cleaves viral polyproteins and posttranslational conjugates with poly-ubiquitin and protective ISG15, composed of two ubiquitin-like (UBL) domains. Across coronaviruses, PLpro showed divergent selectivity for recognition and cleavage of posttranslational conjugates despite sequence conservation. We show that SARS-CoV-2 PLpro binds human ISG15 and K48-linked di-ubiquitin (K48-Ub 2 ) with nanomolar affinity and detect alternate weaker-binding modes. Crystal structures of untethered PLpro complexes with ISG15 and K48-Ub 2 combined with solution NMR and cross-linking mass spectrometry revealed how the two domains of ISG15 or K48-Ub 2 are differently utilized in interactions with PLpro. Analysis of protein interface energetics predicted differential binding stabilities of the two UBL/Ub domains that were validated experimentally. We emphasize how substrate recognition can be tuned to cleave specifically ISG15 or K48-Ub 2 modifications while retaining capacity to cleave mono-Ub conjugates. These results highlight alternative druggable surfaces that would inhibit PLpro function.


  • Organizational Affiliation

    Molecular Biophysics Graduate Program, University of Texas Southwestern Medical Center, Dallas, TX, 75390, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Ubiquitin-like protein ISG15
A, B, C, D, E
A, B, C, D, E, F
159Homo sapiensMutation(s): 0
Gene Names: ISG15G1P2UCRP
UniProt & NIH Common Fund Data Resources
Find proteins for P05161 (Homo sapiens)
Explore P05161
Go to UniProtKB:  P05161
PHAROS:  P05161
GTEx:  ENSG00000187608
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP05161
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

Unit Cell:
Length ( Å )Angle ( ˚ )
a = 52.21α = 90
b = 134.862β = 108.42
c = 78.016γ = 90
Software Package:
Software NamePurpose
HKL-3000data scaling
REFMACrefinement
PDB_EXTRACTdata extraction
HKL-3000data reduction
HKL-3000phasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesHHSN272201200026C
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesHHSN272201700060C

Revision History  (Full details and data files)

  • Version 1.0: 2021-09-22
    Type: Initial release
  • Version 1.1: 2023-05-31
    Changes: Database references, Refinement description
  • Version 1.2: 2023-10-25
    Changes: Data collection, Refinement description
  • Version 1.3: 2024-11-13
    Changes: Structure summary
