7QYW

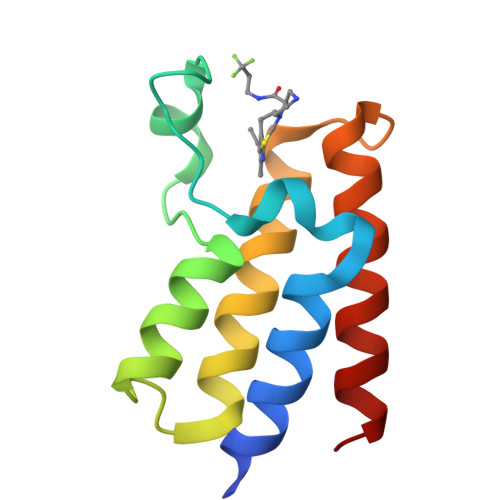

BAZ2A bromodomain in complex with acetylpyrrole derivative compound 111


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.209
  • R-Value Work: 0.181
  • R-Value Observed: 0.182

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Identification of a BAZ2A-Bromodomain Hit Compound by Fragment Growing.

Dalle Vedove, A.Cazzanelli, G.Batiste, L.Marchand, J.R.Spiliotopoulos, D.Corsi, J.D'Agostino, V.G.Caflisch, A.Lolli, G.

(2022) ACS Med Chem Lett 13: 1434-1443

  • DOI: https://doi.org/10.1021/acsmedchemlett.2c00173
  • Primary Citation of Related Structures:
    7B7B, 7B7G, 7B7I, 7B82, 7BC2, 7QVT, 7QVU, 7QVV, 7QWF, 7QWU, 7QWY, 7QX2, 7QX9, 7QXL, 7QYE, 7QYO, 7QYT, 7QYU, 7QYV, 7QYW, 7QZ0, 7QZ4, 7QZB, 7QZC, 7QZI, 7QZT, 7R01, 7R0B

  • PubMed Abstract:

    BAZ2A is an epigenetic regulator affecting transcription of ribosomal RNA. It is overexpressed in aggressive and recurrent prostate cancer, promoting cellular migration. Its bromodomain is characterized by a shallow and difficult-to-drug pocket. Here, we describe a structure-based fragment-growing campaign for the identification of ligands of the BAZ2A bromodomain. By combining docking, competition binding assays, and protein crystallography, we have extensively explored the interactions of the ligands with the rim of the binding pocket, and in particular ionic interactions with the side chain of Glu1820, which is unique to BAZ2A. We present 23 high-resolution crystal structures of the holo BAZ2A bromodomain and analyze common bromodomain/ligand motifs and favorable intraligand interactions. Binding of some of the compounds is enantiospecific, with affinity in the low micromolar range. The most potent ligand has an equilibrium dissociation constant of 7 μM and a good selectivity over the paralog BAZ2B bromodomain.


  • Organizational Affiliation

    Department of Cellular, Computational and Integrative Biology - CIBIO, University of Trento, via Sommarive 9, 38123 Povo - Trento, Italy.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Bromodomain adjacent to zinc finger domain protein 2A105Homo sapiensMutation(s): 2
Gene Names: BAZ2AKIAA0314TIP5
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UIF9 (Homo sapiens)
Explore Q9UIF9
Go to UniProtKB:  Q9UIF9
PHAROS:  Q9UIF9
GTEx:  ENSG00000076108
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UIF9
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GIJ (Subject of Investigation/LOI)
Query on GIJ

Download Ideal Coordinates CCD File
B [auth A](2~{R})-1-[4-(4-ethanoyl-3-ethyl-5-methyl-1~{H}-pyrrol-2-yl)-1,3-thiazol-2-yl]-~{N}-[3,3,3-tris(fluoranyl)propyl]piperazine-2-carboxamide
C20 H26 F3 N5 O2 S
PLKCLYWKGAEBFY-OAHLLOKOSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
C [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
GIJ BindingDB:  7QYW IC50: 1.10e+4 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.209
  • R-Value Work: 0.181
  • R-Value Observed: 0.182
  • Space Group: P 31 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 94.557α = 90
b = 94.557β = 90
c = 33.174γ = 120
Software Package:
Software NamePurpose
XDSdata reduction
Aimlessdata scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Italian Association for Cancer ResearchItalyMFAG 2017 - ID. 19882

Revision History  (Full details and data files)

  • Version 1.0: 2022-09-28
    Type: Initial release
  • Version 1.1: 2024-01-31
    Changes: Data collection, Refinement description
