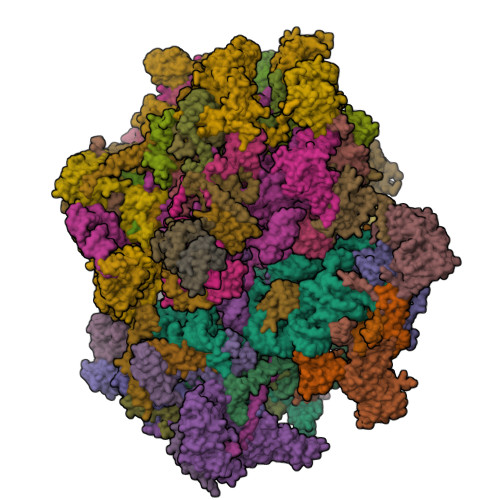

7QI5

Human mitochondrial ribosome in complex with mRNA, A/A-, P/P- and E/E-tRNAs at 2.63 A resolution

  • Classification: RIBOSOME
  • Organism(s): Homo sapiens
  • Mutation(s): Yes

  • Deposited: 2021-12-14 Released: 2023-07-05
  • Deposition Author(s): Singh, V., Itoh, Y., Amunts, A.
  • Funding Organization(s): Swedish Research Council, Knut and Alice Wallenberg Foundation, European Research Council (ERC), European Molecular Biology Organization (EMBO), H2020 Marie Curie Actions of the European Commission

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.63 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 3.1 of the entry. See complete history


Literature

Mitoribosome structure with cofactors and modifications reveals mechanism of ligand binding and interactions with L1 stalk.

Singh, V.Itoh, Y.Del'Olio, S.Hassan, A.Naschberger, A.Flygaard, R.K.Nobe, Y.Izumikawa, K.Aibara, S.Andrell, J.Whitford, P.C.Barrientos, A.Taoka, M.Amunts, A.

(2024) Nat Commun 15: 4272-4272

  • DOI: https://doi.org/10.1038/s41467-024-48163-x
  • Primary Citation of Related Structures:
    7QI4, 7QI5, 7QI6

  • PubMed Abstract:

    The mitoribosome translates mitochondrial mRNAs and regulates energy conversion that is a signature of aerobic life forms. We present a 2.2 Å resolution structure of human mitoribosome together with validated mitoribosomal RNA (rRNA) modifications, including aminoacylated CP-tRNA Val . The structure shows how mitoribosomal proteins stabilise binding of mRNA and tRNA helping to align it in the decoding center, whereas the GDP-bound mS29 stabilizes intersubunit communication. Comparison between different states, with respect to tRNA position, allowed us to characterize a non-canonical L1 stalk, and molecular dynamics simulations revealed how it facilitates tRNA transitions in a way that does not require interactions with rRNA. We also report functionally important polyamines that are depleted when cells are subjected to an antibiotic treatment. The structural, biochemical, and computational data illuminate the principal functional components of the translation mechanism in mitochondria and provide a description of the structure and function of the human mitoribosome.


  • Organizational Affiliation

    Science for Life Laboratory, Department of Biochemistry and Biophysics, Stockholm University, 17165, Solna, Sweden.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S2, mitochondrialB [auth AB]296Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y399 (Homo sapiens)
Explore Q9Y399
Go to UniProtKB:  Q9Y399
PHAROS:  Q9Y399
GTEx:  ENSG00000122140
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y399
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S24, mitochondrialC [auth AC]167Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96EL2 (Homo sapiens)
Explore Q96EL2
Go to UniProtKB:  Q96EL2
GTEx:  ENSG00000062582
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96EL2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S5, mitochondrialD [auth AD]430Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82675 (Homo sapiens)
Explore P82675
Go to UniProtKB:  P82675
PHAROS:  P82675
GTEx:  ENSG00000144029
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82675
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S6, mitochondrialE [auth AE]125Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82932 (Homo sapiens)
Explore P82932
Go to UniProtKB:  P82932
PHAROS:  P82932
GTEx:  ENSG00000243927
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82932
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S7, mitochondrialF [auth AF]242Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y2R9 (Homo sapiens)
Explore Q9Y2R9
Go to UniProtKB:  Q9Y2R9
PHAROS:  Q9Y2R9
GTEx:  ENSG00000125445
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y2R9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S9, mitochondrialG [auth AG]396Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82933 (Homo sapiens)
Explore P82933
Go to UniProtKB:  P82933
PHAROS:  P82933
GTEx:  ENSG00000135972
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82933
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S10, mitochondrialH [auth AH]201Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82664 (Homo sapiens)
Explore P82664
Go to UniProtKB:  P82664
PHAROS:  P82664
GTEx:  ENSG00000048544
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82664
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S11, mitochondrialI [auth AI]194Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82912 (Homo sapiens)
Explore P82912
Go to UniProtKB:  P82912
PHAROS:  P82912
GTEx:  ENSG00000181991
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82912
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S12, mitochondrialJ [auth AJ]138Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O15235 (Homo sapiens)
Explore O15235
Go to UniProtKB:  O15235
PHAROS:  O15235
GTEx:  ENSG00000128626
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO15235
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S14, mitochondrialK [auth AK]128Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O60783 (Homo sapiens)
Explore O60783
Go to UniProtKB:  O60783
PHAROS:  O60783
GTEx:  ENSG00000120333
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO60783
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S15, mitochondrialL [auth AL]257Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82914 (Homo sapiens)
Explore P82914
Go to UniProtKB:  P82914
PHAROS:  P82914
GTEx:  ENSG00000116898
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82914
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S16, mitochondrialM [auth AM]137Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y3D3 (Homo sapiens)
Explore Q9Y3D3
Go to UniProtKB:  Q9Y3D3
PHAROS:  Q9Y3D3
GTEx:  ENSG00000182180
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y3D3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S17, mitochondrialN [auth AN]130Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y2R5 (Homo sapiens)
Explore Q9Y2R5
Go to UniProtKB:  Q9Y2R5
PHAROS:  Q9Y2R5
GTEx:  ENSG00000239789
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y2R5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S18b, mitochondrialO [auth AO]258Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y676 (Homo sapiens)
Explore Q9Y676
Go to UniProtKB:  Q9Y676
PHAROS:  Q9Y676
GTEx:  ENSG00000204568
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y676
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S18c, mitochondrialP [auth AP]142Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y3D5 (Homo sapiens)
Explore Q9Y3D5
Go to UniProtKB:  Q9Y3D5
PHAROS:  Q9Y3D5
GTEx:  ENSG00000163319
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y3D5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChains Sequence LengthOrganismDetailsImage
MRPS21 isoform 1Q [auth AQ]87Homo sapiensMutation(s): 0
UniProt
Find proteins for A0A2J8VEN6 (Pongo abelii)
Explore A0A2J8VEN6
Go to UniProtKB:  A0A2J8VEN6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A2J8VEN6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 18
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S22, mitochondrialR [auth AR]360Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82650 (Homo sapiens)
Explore P82650
Go to UniProtKB:  P82650
PHAROS:  P82650
GTEx:  ENSG00000175110
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82650
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 19
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S23, mitochondrialS [auth AS]190Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y3D9 (Homo sapiens)
Explore Q9Y3D9
Go to UniProtKB:  Q9Y3D9
PHAROS:  Q9Y3D9
GTEx:  ENSG00000181610
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y3D9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 20
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S25, mitochondrialT [auth AT]173Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82663 (Homo sapiens)
Explore P82663
Go to UniProtKB:  P82663
PHAROS:  P82663
GTEx:  ENSG00000131368
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82663
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 21
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S26, mitochondrialU [auth AU]205Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYN8 (Homo sapiens)
Explore Q9BYN8
Go to UniProtKB:  Q9BYN8
GTEx:  ENSG00000125901
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYN8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 22
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S27, mitochondrialV [auth AV]414Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q92552 (Homo sapiens)
Explore Q92552
Go to UniProtKB:  Q92552
PHAROS:  Q92552
GTEx:  ENSG00000113048
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92552
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 23
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S28, mitochondrialW [auth AW]187Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y2Q9 (Homo sapiens)
Explore Q9Y2Q9
Go to UniProtKB:  Q9Y2Q9
PHAROS:  Q9Y2Q9
GTEx:  ENSG00000147586
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y2Q9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 24
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S29, mitochondrialX [auth AX]398Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P51398 (Homo sapiens)
Explore P51398
Go to UniProtKB:  P51398
PHAROS:  P51398
GTEx:  ENSG00000132676
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP51398
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 25
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S31, mitochondrialY [auth AY]395Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q92665 (Homo sapiens)
Explore Q92665
Go to UniProtKB:  Q92665
PHAROS:  Q92665
GTEx:  ENSG00000102738
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92665
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 26
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S33, mitochondrialZ [auth AZ]106Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y291 (Homo sapiens)
Explore Q9Y291
Go to UniProtKB:  Q9Y291
PHAROS:  Q9Y291
GTEx:  ENSG00000090263
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y291
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 27
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S34, mitochondrialAA [auth A0]217Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82930 (Homo sapiens)
Explore P82930
Go to UniProtKB:  P82930
PHAROS:  P82930
GTEx:  ENSG00000074071
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82930
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 28
MoleculeChains Sequence LengthOrganismDetailsImage
28S ribosomal protein S35, mitochondrialBA [auth A1]323Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P82673 (Homo sapiens)
Explore P82673
Go to UniProtKB:  P82673
PHAROS:  P82673
GTEx:  ENSG00000061794
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82673
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 29
MoleculeChains Sequence LengthOrganismDetailsImage
Coiled-coil-helix-coiled-coil-helix domain-containing protein 1CA [auth A2]118Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96BP2 (Homo sapiens)
Explore Q96BP2
Go to UniProtKB:  Q96BP2
PHAROS:  Q96BP2
GTEx:  ENSG00000172586
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96BP2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 30
MoleculeChains Sequence LengthOrganismDetailsImage
Aurora kinase A-interacting proteinDA [auth A3]199Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NWT8 (Homo sapiens)
Explore Q9NWT8
Go to UniProtKB:  Q9NWT8
PHAROS:  Q9NWT8
GTEx:  ENSG00000175756
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NWT8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 31
MoleculeChains Sequence LengthOrganismDetailsImage
Pentatricopeptide repeat domain-containing protein 3, mitochondrialEA [auth A4]689Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96EY7 (Homo sapiens)
Explore Q96EY7
Go to UniProtKB:  Q96EY7
PHAROS:  Q96EY7
GTEx:  ENSG00000132300
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96EY7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 38
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L2, mitochondrialLA [auth D]305Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q5T653 (Homo sapiens)
Explore Q5T653
Go to UniProtKB:  Q5T653
PHAROS:  Q5T653
GTEx:  ENSG00000112651
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5T653
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 39
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L3, mitochondrialMA [auth E]348Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P09001 (Homo sapiens)
Explore P09001
Go to UniProtKB:  P09001
PHAROS:  P09001
GTEx:  ENSG00000114686
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP09001
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 40
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L4, mitochondrialNA [auth F]311Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYD3 (Homo sapiens)
Explore Q9BYD3
Go to UniProtKB:  Q9BYD3
PHAROS:  Q9BYD3
GTEx:  ENSG00000105364
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYD3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 41
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L10, mitochondrialOA [auth I]261Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q7Z7H8 (Homo sapiens)
Explore Q7Z7H8
Go to UniProtKB:  Q7Z7H8
PHAROS:  Q7Z7H8
GTEx:  ENSG00000159111
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7Z7H8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 42
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L11, mitochondrialPA [auth J]192Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y3B7 (Homo sapiens)
Explore Q9Y3B7
Go to UniProtKB:  Q9Y3B7
PHAROS:  Q9Y3B7
GTEx:  ENSG00000174547
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y3B7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 43
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L13, mitochondrialQA [auth K]178Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYD1 (Homo sapiens)
Explore Q9BYD1
Go to UniProtKB:  Q9BYD1
PHAROS:  Q9BYD1
GTEx:  ENSG00000172172
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYD1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 44
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L14, mitochondrialRA [auth L]145Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q6P1L8 (Homo sapiens)
Explore Q6P1L8
Go to UniProtKB:  Q6P1L8
PHAROS:  Q6P1L8
GTEx:  ENSG00000180992
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6P1L8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 45
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L15, mitochondrialSA [auth M]296Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9P015 (Homo sapiens)
Explore Q9P015
Go to UniProtKB:  Q9P015
PHAROS:  Q9P015
GTEx:  ENSG00000137547
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9P015
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 46
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L16, mitochondrialTA [auth N]251Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NX20 (Homo sapiens)
Explore Q9NX20
Go to UniProtKB:  Q9NX20
PHAROS:  Q9NX20
GTEx:  ENSG00000166902
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NX20
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 47
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L17, mitochondrialUA [auth O]175Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NRX2 (Homo sapiens)
Explore Q9NRX2
Go to UniProtKB:  Q9NRX2
PHAROS:  Q9NRX2
GTEx:  ENSG00000158042
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NRX2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 48
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L18, mitochondrialVA [auth P]180Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H0U6 (Homo sapiens)
Explore Q9H0U6
Go to UniProtKB:  Q9H0U6
PHAROS:  Q9H0U6
GTEx:  ENSG00000112110
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H0U6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 49
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L19, mitochondrialWA [auth Q]292Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P49406 (Homo sapiens)
Explore P49406
Go to UniProtKB:  P49406
PHAROS:  P49406
GTEx:  ENSG00000115364
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49406
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 50
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L20, mitochondrialXA [auth R]149Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYC9 (Homo sapiens)
Explore Q9BYC9
Go to UniProtKB:  Q9BYC9
PHAROS:  Q9BYC9
GTEx:  ENSG00000242485
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYC9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 51
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L21, mitochondrialYA [auth S]205Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q7Z2W9 (Homo sapiens)
Explore Q7Z2W9
Go to UniProtKB:  Q7Z2W9
GTEx:  ENSG00000197345
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7Z2W9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 52
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L22, mitochondrialZA [auth T]206Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NWU5 (Homo sapiens)
Explore Q9NWU5
Go to UniProtKB:  Q9NWU5
PHAROS:  Q9NWU5
GTEx:  ENSG00000082515
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NWU5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 53
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L23, mitochondrialAB [auth U]153Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q16540 (Homo sapiens)
Explore Q16540
Go to UniProtKB:  Q16540
PHAROS:  Q16540
GTEx:  ENSG00000214026
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ16540
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 54
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L24, mitochondrialBB [auth V]216Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96A35 (Homo sapiens)
Explore Q96A35
Go to UniProtKB:  Q96A35
PHAROS:  Q96A35
GTEx:  ENSG00000143314
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96A35
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 55
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L27, mitochondrialCB [auth W]148Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9P0M9 (Homo sapiens)
Explore Q9P0M9
Go to UniProtKB:  Q9P0M9
PHAROS:  Q9P0M9
GTEx:  ENSG00000108826
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9P0M9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 56
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L28, mitochondrialDB [auth X]256Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q13084 (Homo sapiens)
Explore Q13084
Go to UniProtKB:  Q13084
PHAROS:  Q13084
GTEx:  ENSG00000086504
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13084
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 57
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L47, mitochondrialEB [auth Y]250Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9HD33 (Homo sapiens)
Explore Q9HD33
Go to UniProtKB:  Q9HD33
PHAROS:  Q9HD33
GTEx:  ENSG00000136522
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9HD33
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 58
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L30, mitochondrialFB [auth Z]161Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q8TCC3 (Homo sapiens)
Explore Q8TCC3
Go to UniProtKB:  Q8TCC3
PHAROS:  Q8TCC3
GTEx:  ENSG00000185414
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8TCC3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 59
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L32, mitochondrialGB [auth 0]188Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYC8 (Homo sapiens)
Explore Q9BYC8
Go to UniProtKB:  Q9BYC8
PHAROS:  Q9BYC8
GTEx:  ENSG00000106591
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYC8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 60
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L33, mitochondrialHB [auth 1]65Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O75394 (Homo sapiens)
Explore O75394
Go to UniProtKB:  O75394
PHAROS:  O75394
GTEx:  ENSG00000243147
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO75394
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 61
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L34, mitochondrialIB [auth 2]92Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BQ48 (Homo sapiens)
Explore Q9BQ48
Go to UniProtKB:  Q9BQ48
PHAROS:  Q9BQ48
GTEx:  ENSG00000130312
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BQ48
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 62
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L35, mitochondrialJB [auth 3]188Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NZE8 (Homo sapiens)
Explore Q9NZE8
Go to UniProtKB:  Q9NZE8
PHAROS:  Q9NZE8
GTEx:  ENSG00000132313
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NZE8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 63
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L36, mitochondrialKB [auth 4]103Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9P0J6 (Homo sapiens)
Explore Q9P0J6
Go to UniProtKB:  Q9P0J6
PHAROS:  Q9P0J6
GTEx:  ENSG00000171421
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9P0J6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 64
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L37, mitochondrialLB [auth 5]423Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BZE1 (Homo sapiens)
Explore Q9BZE1
Go to UniProtKB:  Q9BZE1
PHAROS:  Q9BZE1
GTEx:  ENSG00000116221
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BZE1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 65
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L38, mitochondrialMB [auth 6]380Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96DV4 (Homo sapiens)
Explore Q96DV4
Go to UniProtKB:  Q96DV4
GTEx:  ENSG00000204316
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96DV4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 66
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L39, mitochondrialNB [auth 7]338Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NYK5 (Homo sapiens)
Explore Q9NYK5
Go to UniProtKB:  Q9NYK5
PHAROS:  Q9NYK5
GTEx:  ENSG00000154719
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NYK5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 67
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L40, mitochondrialOB [auth 8]206Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NQ50 (Homo sapiens)
Explore Q9NQ50
Go to UniProtKB:  Q9NQ50
PHAROS:  Q9NQ50
GTEx:  ENSG00000185608
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NQ50
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 68
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L41, mitochondrialPB [auth 9]137Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q8IXM3 (Homo sapiens)
Explore Q8IXM3
Go to UniProtKB:  Q8IXM3
PHAROS:  Q8IXM3
GTEx:  ENSG00000182154
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IXM3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 69
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L42, mitochondrialQB [auth a]142Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y6G3 (Homo sapiens)
Explore Q9Y6G3
Go to UniProtKB:  Q9Y6G3
PHAROS:  Q9Y6G3
GTEx:  ENSG00000198015
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y6G3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 70
MoleculeChains Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein mL43RB [auth b]215Homo sapiensMutation(s): 1
UniProt & NIH Common Fund Data Resources
Find proteins for Q8N983 (Homo sapiens)
Explore Q8N983
Go to UniProtKB:  Q8N983
PHAROS:  Q8N983
GTEx:  ENSG00000055950
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8N983
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 71
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L44, mitochondrialSB [auth c]332Homo sapiensMutation(s): 0
EC: 3.1.26
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H9J2 (Homo sapiens)
Explore Q9H9J2
Go to UniProtKB:  Q9H9J2
PHAROS:  Q9H9J2
GTEx:  ENSG00000135900
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H9J2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 72
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L45, mitochondrialTB [auth d]306Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BRJ2 (Homo sapiens)
Explore Q9BRJ2
Go to UniProtKB:  Q9BRJ2
PHAROS:  Q9BRJ2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BRJ2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 73
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L46, mitochondrialUB [auth e]279Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H2W6 (Homo sapiens)
Explore Q9H2W6
Go to UniProtKB:  Q9H2W6
GTEx:  ENSG00000259494
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H2W6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 74
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L48, mitochondrialVB [auth f]212Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96GC5 (Homo sapiens)
Explore Q96GC5
Go to UniProtKB:  Q96GC5
PHAROS:  Q96GC5
GTEx:  ENSG00000175581
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96GC5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 75
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L49, mitochondrialWB [auth g]166Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q13405 (Homo sapiens)
Explore Q13405
Go to UniProtKB:  Q13405
PHAROS:  Q13405
GTEx:  ENSG00000149792
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13405
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 76
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L50, mitochondrialXB [auth h]158Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q8N5N7 (Homo sapiens)
Explore Q8N5N7
Go to UniProtKB:  Q8N5N7
PHAROS:  Q8N5N7
GTEx:  ENSG00000136897
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8N5N7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 77
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L51, mitochondrialYB [auth i]128Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q4U2R6 (Homo sapiens)
Explore Q4U2R6
Go to UniProtKB:  Q4U2R6
PHAROS:  Q4U2R6
GTEx:  ENSG00000111639
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ4U2R6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 78
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L52, mitochondrialZB [auth j]123Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q86TS9 (Homo sapiens)
Explore Q86TS9
Go to UniProtKB:  Q86TS9
PHAROS:  Q86TS9
GTEx:  ENSG00000172590
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ86TS9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 79
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L53, mitochondrialAC [auth k]112Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96EL3 (Homo sapiens)
Explore Q96EL3
Go to UniProtKB:  Q96EL3
GTEx:  ENSG00000204822
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96EL3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 80
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L54, mitochondrialBC [auth l]138Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q6P161 (Homo sapiens)
Explore Q6P161
Go to UniProtKB:  Q6P161
PHAROS:  Q6P161
GTEx:  ENSG00000183617
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6P161
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 81
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L55, mitochondrialCC [auth m]128Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q7Z7F7 (Homo sapiens)
Explore Q7Z7F7
Go to UniProtKB:  Q7Z7F7
PHAROS:  Q7Z7F7
GTEx:  ENSG00000162910
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7Z7F7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 82
MoleculeChains Sequence LengthOrganismDetailsImage
Ribosomal protein 63, mitochondrialDC [auth o]102Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BQC6 (Homo sapiens)
Explore Q9BQC6
Go to UniProtKB:  Q9BQC6
PHAROS:  Q9BQC6
GTEx:  ENSG00000173141
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BQC6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 83
MoleculeChains Sequence LengthOrganismDetailsImage
Peptidyl-tRNA hydrolase ICT1, mitochondrialEC [auth p]206Homo sapiensMutation(s): 0
EC: 3.1.1.29
UniProt & NIH Common Fund Data Resources
Find proteins for Q14197 (Homo sapiens)
Explore Q14197
Go to UniProtKB:  Q14197
PHAROS:  Q14197
GTEx:  ENSG00000167862
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ14197
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 84
MoleculeChains Sequence LengthOrganismDetailsImage
Growth arrest and DNA damage-inducible proteins-interacting protein 1FC [auth q]222Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q8TAE8 (Homo sapiens)
Explore Q8TAE8
Go to UniProtKB:  Q8TAE8
PHAROS:  Q8TAE8
GTEx:  ENSG00000179271
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8TAE8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 85
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein S18a, mitochondrialGC [auth r]196Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NVS2 (Homo sapiens)
Explore Q9NVS2
Go to UniProtKB:  Q9NVS2
PHAROS:  Q9NVS2
GTEx:  ENSG00000096080
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NVS2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 86
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein S30, mitochondrialHC [auth s]439Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NP92 (Homo sapiens)
Explore Q9NP92
Go to UniProtKB:  Q9NP92
PHAROS:  Q9NP92
GTEx:  ENSG00000112996
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NP92
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 87
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L12, mitochondrial198Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P52815 (Homo sapiens)
Explore P52815
Go to UniProtKB:  P52815
PHAROS:  P52815
GTEx:  ENSG00000262814
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52815
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 88
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L9, mitochondrialOC [auth H]267Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYD2 (Homo sapiens)
Explore Q9BYD2
Go to UniProtKB:  Q9BYD2
PHAROS:  Q9BYD2
GTEx:  ENSG00000143436
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYD2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 89
MoleculeChains Sequence LengthOrganismDetailsImage
39S ribosomal protein L1, mitochondrialPC [auth z]325Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYD6 (Homo sapiens)
Explore Q9BYD6
Go to UniProtKB:  Q9BYD6
PHAROS:  Q9BYD6
GTEx:  ENSG00000169288
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYD6
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains LengthOrganismImage
12S mitochondrial rRNAA [auth AA]954Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 32
MoleculeChains LengthOrganismImage
A/A-tRNAFA [auth Aw]68Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 33
MoleculeChains LengthOrganismImage
P/P-tRNAGA [auth Ax]70Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 34
MoleculeChains LengthOrganismImage
E/E-tRNAHA [auth Ay]70Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 35
MoleculeChains LengthOrganismImage
mRNAIA [auth Az]34Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 36
MoleculeChains LengthOrganismImage
16S mitochondrial rRNAJA [auth A]1,561Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 37
MoleculeChains LengthOrganismImage
mitochondrial tRNAValKA [auth B]72Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 11 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAD
Query on NAD

Download Ideal Coordinates CCD File
QC [auth AA]NICOTINAMIDE-ADENINE-DINUCLEOTIDE
C21 H27 N7 O14 P2
BAWFJGJZGIEFAR-NNYOXOHSSA-N
ATP
Query on ATP

Download Ideal Coordinates CCD File
AG [auth AX]ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
GDP
Query on GDP

Download Ideal Coordinates CCD File
CG [auth AX]GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
SPM
Query on SPM

Download Ideal Coordinates CCD File
RC [auth AA]SPERMINE
C10 H26 N4
PFNFFQXMRSDOHW-UHFFFAOYSA-N
FES
Query on FES

Download Ideal Coordinates CCD File
HN [auth r],
YF [auth AP],
ZF [auth AT]
FE2/S2 (INORGANIC) CLUSTER
Fe2 S2
NIXDOXVAJZFRNF-UHFFFAOYSA-N
SPD
Query on SPD

Download Ideal Coordinates CCD File
EG [auth A],
FG [auth A],
GG [auth A],
SC [auth AA]
SPERMIDINE
C7 H19 N3
ATHGHQPFGPMSJY-UHFFFAOYSA-N
VAL
Query on VAL

Download Ideal Coordinates CCD File
TM [auth B]VALINE
C5 H11 N O2
KZSNJWFQEVHDMF-BYPYZUCNSA-N
PUT
Query on PUT

Download Ideal Coordinates CCD File
HG [auth A]1,4-DIAMINOBUTANE
C4 H12 N2
KIDHWZJUCRJVML-UHFFFAOYSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
AN [auth 0],
CN [auth 4],
XF [auth AO]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
K
Query on K

Download Ideal Coordinates CCD File
AM [auth A]
BM [auth A]
BN [auth 3]
CM [auth A]
DM [auth A]
AM [auth A],
BM [auth A],
BN [auth 3],
CM [auth A],
DM [auth A],
DN [auth 6],
EF [auth AA],
EM [auth A],
FF [auth AA],
FM [auth A],
FN [auth i],
GF [auth AA],
GM [auth A],
GN [auth o],
HF [auth AA],
HM [auth A],
IF [auth AA],
IM [auth A],
JF [auth AA],
JM [auth A],
KF [auth AA],
KM [auth A],
LF [auth AA],
LM [auth A],
MF [auth AA],
MM [auth A],
NF [auth AA],
NM [auth A],
OF [auth AA],
OM [auth A],
PF [auth AA],
PM [auth A],
QF [auth AA],
QL [auth A],
QM [auth A],
RF [auth AA],
RL [auth A],
RM [auth A],
SF [auth AA],
SL [auth A],
SM [auth A],
TF [auth AA],
TL [auth A],
UF [auth AA],
UL [auth A],
VF [auth AA],
VL [auth A],
WL [auth A],
WM [auth D],
XL [auth A],
YL [auth A],
YM [auth M],
ZL [auth A],
ZM [auth W]
POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
AD [auth AA]
AE [auth AA]
AF [auth AA]
AH [auth A]
AI [auth A]
AD [auth AA],
AE [auth AA],
AF [auth AA],
AH [auth A],
AI [auth A],
AJ [auth A],
AK [auth A],
AL [auth A],
BD [auth AA],
BE [auth AA],
BF [auth AA],
BG [auth AX],
BH [auth A],
BI [auth A],
BJ [auth A],
BK [auth A],
BL [auth A],
CD [auth AA],
CE [auth AA],
CF [auth AA],
CH [auth A],
CI [auth A],
CJ [auth A],
CK [auth A],
CL [auth A],
DD [auth AA],
DE [auth AA],
DF [auth AA],
DG [auth A3],
DH [auth A],
DI [auth A],
DJ [auth A],
DK [auth A],
DL [auth A],
ED [auth AA],
EE [auth AA],
EH [auth A],
EI [auth A],
EJ [auth A],
EK [auth A],
EL [auth A],
EN [auth g],
FD [auth AA],
FE [auth AA],
FH [auth A],
FI [auth A],
FJ [auth A],
FK [auth A],
FL [auth A],
GD [auth AA],
GE [auth AA],
GH [auth A],
GI [auth A],
GJ [auth A],
GK [auth A],
GL [auth A],
HD [auth AA],
HE [auth AA],
HH [auth A],
HI [auth A],
HJ [auth A],
HK [auth A],
HL [auth A],
ID [auth AA],
IE [auth AA],
IG [auth A],
IH [auth A],
II [auth A],
IJ [auth A],
IK [auth A],
IL [auth A],
JD [auth AA],
JE [auth AA],
JG [auth A],
JH [auth A],
JI [auth A],
JJ [auth A],
JK [auth A],
JL [auth A],
KD [auth AA],
KE [auth AA],
KG [auth A],
KH [auth A],
KI [auth A],
KJ [auth A],
KK [auth A],
KL [auth A],
LD [auth AA],
LE [auth AA],
LG [auth A],
LH [auth A],
LI [auth A],
LJ [auth A],
LK [auth A],
LL [auth A],
MD [auth AA],
ME [auth AA],
MG [auth A],
MH [auth A],
MI [auth A],
MJ [auth A],
MK [auth A],
ML [auth A],
ND [auth AA],
NE [auth AA],
NG [auth A],
NH [auth A],
NI [auth A],
NJ [auth A],
NK [auth A],
NL [auth A],
OD [auth AA],
OE [auth AA],
OG [auth A],
OH [auth A],
OI [auth A],
OJ [auth A],
OK [auth A],
OL [auth A],
PD [auth AA],
PE [auth AA],
PG [auth A],
PH [auth A],
PI [auth A],
PJ [auth A],
PK [auth A],
PL [auth A],
QD [auth AA],
QE [auth AA],
QG [auth A],
QH [auth A],
QI [auth A],
QJ [auth A],
QK [auth A],
RD [auth AA],
RE [auth AA],
RG [auth A],
RH [auth A],
RI [auth A],
RJ [auth A],
RK [auth A],
SD [auth AA],
SE [auth AA],
SG [auth A],
SH [auth A],
SI [auth A],
SJ [auth A],
SK [auth A],
TC [auth AA],
TD [auth AA],
TE [auth AA],
TG [auth A],
TH [auth A],
TI [auth A],
TJ [auth A],
TK [auth A],
UC [auth AA],
UD [auth AA],
UE [auth AA],
UG [auth A],
UH [auth A],
UI [auth A],
UJ [auth A],
UK [auth A],
UM [auth D],
VC [auth AA],
VD [auth AA],
VE [auth AA],
VG [auth A],
VH [auth A],
VI [auth A],
VJ [auth A],
VK [auth A],
VM [auth D],
WC [auth AA],
WD [auth AA],
WE [auth AA],
WF [auth AB],
WG [auth A],
WH [auth A],
WI [auth A],
WJ [auth A],
WK [auth A],
XC [auth AA],
XD [auth AA],
XE [auth AA],
XG [auth A],
XH [auth A],
XI [auth A],
XJ [auth A],
XK [auth A],
XM [auth E],
YC [auth AA],
YD [auth AA],
YE [auth AA],
YG [auth A],
YH [auth A],
YI [auth A],
YJ [auth A],
YK [auth A],
ZC [auth AA],
ZD [auth AA],
ZE [auth AA],
ZG [auth A],
ZH [auth A],
ZI [auth A],
ZJ [auth A],
ZK [auth A]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Modified Residues  2 Unique
IDChains TypeFormula2D DiagramParent
AYA
Query on AYA
Q [auth AQ]L-PEPTIDE LINKINGC5 H9 N O3ALA
SAC
Query on SAC
QA [auth K]L-PEPTIDE LINKINGC5 H9 N O4SER
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.63 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Swedish Research CouncilEuropean Union--
Knut and Alice Wallenberg FoundationEuropean Union--
European Research Council (ERC)European Union--
European Molecular Biology Organization (EMBO)European Union--
H2020 Marie Curie Actions of the European CommissionEuropean Union--

Revision History  (Full details and data files)

  • Version 1.0: 2023-07-05
    Type: Initial release
  • Version 1.1: 2023-07-12
    Changes: Database references
  • Version 1.2: 2023-08-09
    Changes: Database references
  • Version 2.0: 2023-11-15
    Changes: Atomic model, Data collection, Derived calculations
  • Version 2.1: 2024-01-17
    Changes: Structure summary
  • Version 2.2: 2024-04-24
    Changes: Data collection
  • Version 3.0: 2024-06-26
    Changes: Advisory, Atomic model, Data collection, Database references, Derived calculations, Non-polymer description, Polymer sequence, Structure summary
  • Version 3.1: 2024-07-31
    Changes: Data collection, Database references
