7CXD

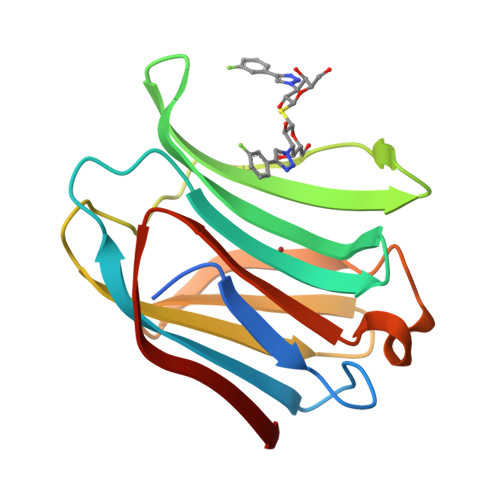

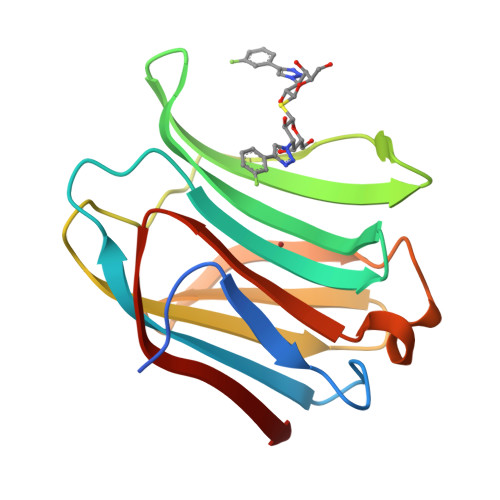

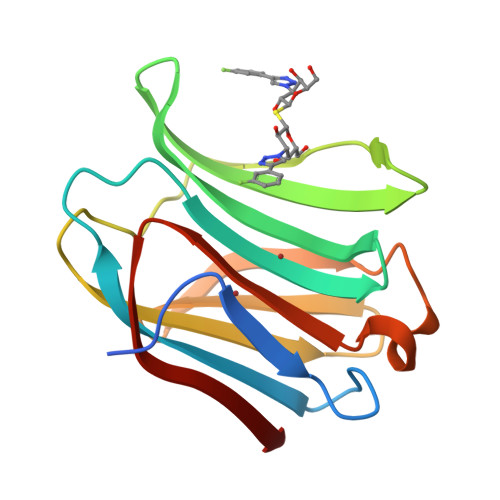

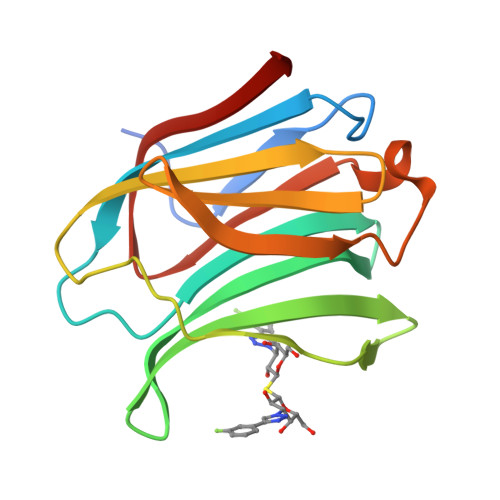

Xray structure of rat Galectin-3 CRD in complex with TD-139 belonging to P121 space group


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.71 Å
  • R-Value Free: 0.248
  • R-Value Work: 0.226
  • R-Value Observed: 0.227

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Molecular mechanism of interspecies differences in the binding affinity of TD139 to Galectin-3.

Kumar, A.Paul, M.Panda, M.Jayaram, S.Kalidindi, N.Sale, H.Vetrichelvan, M.Gupta, A.Mathur, A.Beno, B.Regueiro-Ren, A.Cheng, D.Ramarao, M.Ghosh, K.

(2021) Glycobiology 31: 1390-1400

  • DOI: https://doi.org/10.1093/glycob/cwab072
  • Primary Citation of Related Structures:
    7CXA, 7CXB, 7CXC, 7CXD

  • PubMed Abstract:

    Galectin-3 (Gal-3), a β-galactoside-binding lectin, has been implicated in a plethora of pathological disorders including fibrosis, inflammation, cancer and metabolic diseases. TD139-a thio-digalactoside inhibitor developed by Galecto Biotech as a potential therapeutic for idiopathic pulmonary fibrosis-is the most advanced small-molecule Gal-3 inhibitor in clinical studies. It binds to human Gal-3 with high affinity but has lower affinity towards mouse and rat homologs, which is also manifested in the differential inhibition of Gal-3 function. Using biophysical methods and high-resolution X-ray co-crystal structures of TD139 and Gal-3 proteins, we demonstrate that a single amino acid change corresponding to A146 in human Gal-3 is sufficient for the observed reduction in the binding affinity of TD139 in rodents. Site-directed mutagenesis of A146V (in human Gal-3) and V160A (in mouse Gal-3) was sufficient to interchange the affinities, mainly by affecting the off rates of the inhibitor binding. In addition, molecular dynamics simulations of both wild-type and mutant structures revealed the sustained favorable noncovalent interactions between the fluorophenyl ring and the active site A146 (human Gal-3 and mouse V160A) that corroborate the finding from biophysical studies. Current findings have ramifications in the context of optimization of drug candidates against Gal-3.


  • Organizational Affiliation

    Discovery Biology and Translational Medicine, Biocon Bristol-Myers Squibb R&D Center, Bristol-Myers Squibb India Pvt. Ltd, Bangalore 560099, India.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Galectin-3A,
B,
C [auth D],
D [auth E]
146Rattus norvegicusMutation(s): 0
Gene Names: Lgals3
UniProt
Find proteins for P08699 (Rattus norvegicus)
Explore P08699
Go to UniProtKB:  P08699
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08699
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
TD2 (Subject of Investigation/LOI)
Query on TD2

Download Ideal Coordinates CCD File
F [auth A],
H [auth B],
K [auth D],
M [auth E]
3-deoxy-3-[4-(3-fluorophenyl)-1H-1,2,3-triazol-1-yl]-beta-D-galactopyranosyl 3-deoxy-3-[4-(3-fluorophenyl)-1H-1,2,3-triazol-1-yl]-1-thio-beta-D-galactopyranoside
C28 H30 F2 N6 O8 S
YGIDGBAHDZEYMT-MQFIMZJJSA-N
BR
Query on BR

Download Ideal Coordinates CCD File
E [auth A],
G [auth B],
I [auth D],
J [auth D],
L [auth E]
BROMIDE ION
Br
CPELXLSAUQHCOX-UHFFFAOYSA-M
Binding Affinity Annotations
IDSourceBinding Affinity
TD2 BindingDB:  7CXD IC50: min: 67, max: 300 (nM) from 2 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.71 Å
  • R-Value Free: 0.248
  • R-Value Work: 0.226
  • R-Value Observed: 0.227
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 67.241α = 90
b = 58.712β = 113.85
c = 70.773γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
Aimlessdata scaling
PDB_EXTRACTdata extraction
MOSFLMdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

  • Released Date: 2021-09-01
  • Deposition Author(s): Kumar, A.

Revision History  (Full details and data files)

  • Version 1.0: 2021-09-01
    Type: Initial release
  • Version 1.1: 2022-02-16
    Changes: Database references
  • Version 1.2: 2023-11-29
    Changes: Data collection, Refinement description
