7AOC

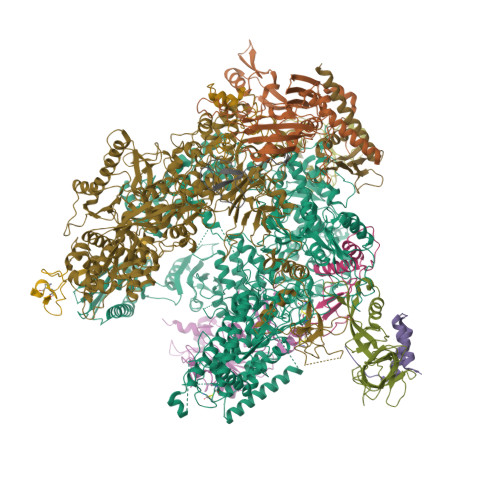

Schizosaccharomyces pombe RNA polymerase I (monomer)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.84 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Conserved strategies of RNA polymerase I hibernation and activation.

Heiss, F.B.Daiss, J.L.Becker, P.Engel, C.

(2021) Nat Commun 12: 758-758

  • DOI: https://doi.org/10.1038/s41467-021-21031-8
  • Primary Citation of Related Structures:
    7AOC, 7AOD, 7AOE

  • PubMed Abstract:

    RNA polymerase (Pol) I transcribes the ribosomal RNA precursor in all eukaryotes. The mechanisms 'activation by cleft contraction' and 'hibernation by dimerization' are unique to the regulation of this enzyme, but structure-function analysis is limited to baker's yeast. To understand whether regulation by such strategies is specific to this model organism or conserved among species, we solve three cryo-EM structures of Pol I from Schizosaccharomyces pombe in different functional states. Comparative analysis of structural models derived from high-resolution reconstructions shows that activation is accomplished by a conserved contraction of the active center cleft. In contrast to current beliefs, we find that dimerization of the S. pombe polymerase is also possible. This dimerization is achieved independent of the 'connector' domain but relies on two previously undescribed interfaces. Our analyses highlight the divergent nature of Pol I transcription systems from their counterparts and suggest conservation of regulatory mechanisms among organisms.


  • Organizational Affiliation

    Regensburg Center for Biochemistry, University of Regensburg, Universitätsstraße 31, 93053, Regensburg, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase I subunit rpa11,689Schizosaccharomyces pombe 972h-Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for P15398 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore P15398
Go to UniProtKB:  P15398
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP15398
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Probable DNA-directed RNA polymerase I subunit RPA21,174Schizosaccharomyces pombe 972h-Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q9P7X8 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore Q9P7X8
Go to UniProtKB:  Q9P7X8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9P7X8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I and III subunit RPAC1348Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for O94616 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O94616
Go to UniProtKB:  O94616
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO94616
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase I subunit rpa14147Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for Q9P7P1 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore Q9P7P1
Go to UniProtKB:  Q9P7P1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9P7P1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC1210Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for Q09191 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore Q09191
Go to UniProtKB:  Q09191
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ09191
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC2142Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for P36595 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore P36595
Go to UniProtKB:  P36595
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP36595
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase I subunit rpa43173Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for O43036 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O43036
Go to UniProtKB:  O43036
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO43036
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC3125Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for Q92399 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore Q92399
Go to UniProtKB:  Q92399
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92399
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase I subunit RPA12119Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for O94703 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O94703
Go to UniProtKB:  O94703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO94703
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC571Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for O13877 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O13877
Go to UniProtKB:  O13877
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO13877
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I and III subunit RPAC2125Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for Q09177 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore Q09177
Go to UniProtKB:  Q09177
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ09177
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC463Schizosaccharomyces pombe 972h-Mutation(s): 0
UniProt
Find proteins for P48011 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore P48011
Go to UniProtKB:  P48011
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP48011
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.84 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)GermanySFB 960 (TP-A8)
German Research Foundation (DFG)GermanyEN 1204/1-1

Revision History  (Full details and data files)

  • Version 1.0: 2021-02-24
    Type: Initial release
  • Version 1.1: 2024-10-16
    Changes: Advisory, Data collection, Database references, Derived calculations, Structure summary
