7A4C | pdb_00007a4c

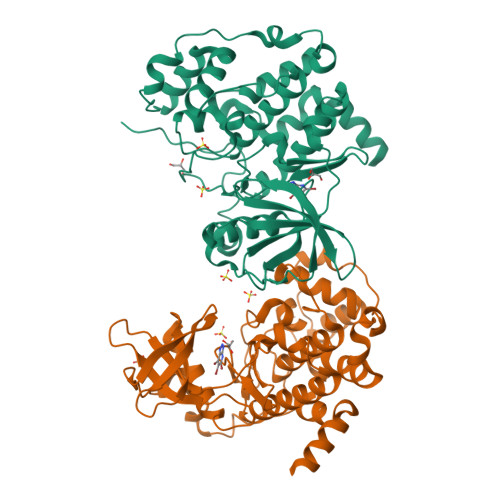

Crystal structure of human protein kinase CK2alpha (CSNK2A1 gene product) in complex with the ATP-competitive inhibitor 5,6,7-tribromo-1H-triazolo[4,5-b]pyridine

PDB DOI: https://doi.org/10.2210/pdb7A4C/pdb

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2020-08-19 Released: 2020-12-09
Deposition Author(s): Niefind, K., Lindenblatt, D., Toelzer, C., Bretner, M., Chojnacki, K., Wielechowska, M., Winska, P.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.50 Å
R-Value Free:
0.232 (Depositor), 0.233 (DCC)
R-Value Work:
0.206 (Depositor), 0.206 (DCC)
R-Value Observed:
0.207 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.3 of the entry. See complete history.

Literature

Synthesis, biological properties and structural study of new halogenated azolo[4,5-b]pyridines as inhibitors of CK2 kinase.

Chojnacki, K., Lindenblatt, D., Winska, P., Wielechowska, M., Toelzer, C., Niefind, K., Bretner, M.

(2021) Bioorg Chem 106: 104502-104502

PubMed: 33317841 Search on PubMed
DOI: https://doi.org/10.1016/j.bioorg.2020.104502
Primary Citation Related Structures:
7A1B, 7A1Z, 7A22, 7A2H, 7A49, 7A4B, 7A4C

PubMed Abstract:
The new halogenated 1H-triazolo[4,5-b]pyridines and 1H-imidazo[4,5-b]pyridines were synthesised as analogues of known CK2 inhibitors: 4,5,6,7-tetrabromo-1H-benzotriazole (TBBt) and 4,5,6,7-tetrabromo-1H-benzimidazole (TBBi). Their influence on the activity of recombinant human CK2α, CK2α' and PIM1 kinases was determined. The most active inhibitors were di- and trihalogenated 1H-triazolo[4,5-b]pyridines (4a, 5a and 10a) with IC ₅₀ values 2.56, 3.82 and 3.26 μM respectively for CK2α. Furthermore, effect on viability of cancer cell lines MCF-7 (human breast adenocarcinoma) and CCRF-CEM (T lymphoblast leukemia) of all final compounds was evaluated. Finally, three crystal structures of complexes of CK2α ^1-335 with inhibitors 4a, 5a and 10a were obtained. In addition, new protocol was used to obtain high-resolution crystal structures of CK2α' ^Cys336Ser in complex with four inhibitors (4a, 5a, 5b, 10a).

Organizational Affiliation

Faculty of Chemistry, Warsaw University of Technology, Noakowskiego St. 3, 00-664 Warsaw, Poland. Electronic address: kchojnacki@ch.pw.edu.pl.

Macromolecule Content

Total Structure Weight: 81.7 kDa
Atom Count: 5,892
Modeled Residue Count: 668
Deposited Residue Count: 670
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Casein kinase II subunit alpha	A, B	335	Homo sapiens	Mutation(s): 0 Gene Names: CSNK2A1, CK2A1 EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for P68400 (Homo sapiens) Explore P68400 Go to UniProtKB: P68400
PHAROS: P68400 GTEx: ENSG00000101266
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P68400
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
QWW (Subject of Investigation/LOI) Query on QWW Download:Ideal Coordinates CCD File SDF format, chain I [auth B] SDF format, chain C [auth A] MOL2 format, chain I [auth B] MOL2 format, chain C [auth A] mmCIF format, chain I [auth B] mmCIF format, chain C [auth A]	C [auth A], I [auth B]	5,6,7-tris(bromanyl)-1~{H}-[1,2,3]triazolo[4,5-b]pyridine C₅ H Br₃ N₄ SIDPOVAKIOFKQR-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain I [auth B] Interactions & Density Focus chain C [auth A] Focus chain I [auth B]
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain M [auth B] SDF format, chain L [auth B] SDF format, chain K [auth B] SDF format, chain H [auth A] SDF format, chain G [auth A] SDF format, chain F [auth A] MOL2 format, chain M [auth B] MOL2 format, chain L [auth B] MOL2 format, chain K [auth B] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] mmCIF format, chain M [auth B] mmCIF format, chain L [auth B] mmCIF format, chain K [auth B] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A]	F [auth A] G [auth A] H [auth A] K [auth B] L [auth B] F [auth A], G [auth A], H [auth A], K [auth B], L [auth B], M [auth B]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain J [auth B] SDF format, chain E [auth A] SDF format, chain D [auth A] MOL2 format, chain J [auth B] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] mmCIF format, chain J [auth B] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A]	D [auth A], E [auth A], J [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain J [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain J [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.50 Å
R-Value Free: 0.232 (Depositor), 0.233 (DCC)
R-Value Work: 0.206 (Depositor), 0.206 (DCC)
R-Value Observed: 0.207 (Depositor)

Space Group: P 4₃ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 127.681	α = 90
b = 127.681	β = 90
c = 126.296	γ = 90

Software Package:

Software Name	Purpose
XDS	data reduction
Aimless	data scaling
PHASER	phasing
PHENIX	refinement

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2020-12-09

Deposition Author(s):

Funding Organization	Location	Grant Number
German Research Foundation (DFG)	Germany	NI 643/4-2

Revision History (Full details and data files)

Version 1.0: 2020-12-09
Type: Initial release
Version 1.1: 2020-12-23
Changes: Database references
Version 1.2: 2021-01-13
Changes: Database references
Version 1.3: 2024-01-31
Changes: Data collection, Database references, Refinement description
