6YBK

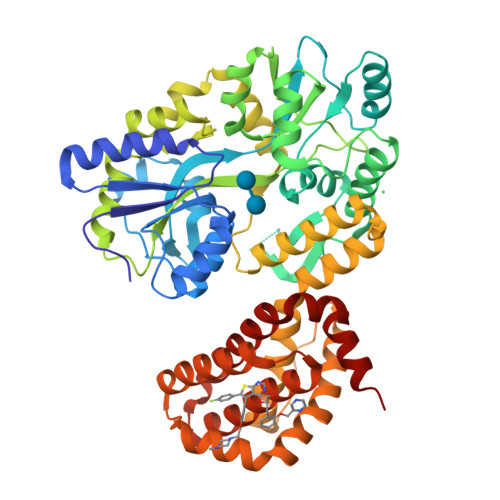

Structure of MBP-Mcl-1 in complex with compound 4d


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.235
  • R-Value Work: 0.187
  • R-Value Observed: 0.189

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Discovery of S64315, a Potent and Selective Mcl-1 Inhibitor.

Szlavik, Z.Csekei, M.Paczal, A.Szabo, Z.B.Sipos, S.Radics, G.Proszenyak, A.Balint, B.Murray, J.Davidson, J.Chen, I.Dokurno, P.Surgenor, A.E.Daniels, Z.M.Hubbard, R.E.Le Toumelin-Braizat, G.Claperon, A.Lysiak-Auvity, G.Girard, A.M.Bruno, A.Chanrion, M.Colland, F.Maragno, A.L.Demarles, D.Geneste, O.Kotschy, A.

(2020) J Med Chem 63: 13762-13795

  • DOI: https://doi.org/10.1021/acs.jmedchem.0c01234
  • Primary Citation of Related Structures:
    6YBG, 6YBJ, 6YBK, 6YBL

  • PubMed Abstract:

    Myeloid cell leukemia 1 (Mcl-1) has emerged as an attractive target for cancer therapy. It is an antiapoptotic member of the Bcl-2 family of proteins, whose upregulation in human cancers is associated with high tumor grade, poor survival, and resistance to chemotherapy. Here we report the discovery of our clinical candidate S64315, a selective small molecule inhibitor of Mcl-1. Starting from a fragment derived lead compound, we have conducted structure guided optimization that has led to a significant (3 log) improvement of target affinity as well as cellular potency. The presence of hindered rotation along a biaryl axis has conferred high selectivity to the compounds against other members of the Bcl-2 family. During optimization, we have also established predictive PD markers of Mcl-1 inhibition and achieved both efficient in vitro cell killing and tumor regression in Mcl-1 dependent cancer models. The preclinical candidate has drug-like properties that have enabled its development and entry into clinical trials.


  • Organizational Affiliation

    Servier Research Institute of Medicinal Chemistry, Záhony u. 7, H-1031 Budapest, Hungary.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Maltose/maltodextrin-binding periplasmic protein,Induced myeloid leukemia cell differentiation protein Mcl-1518Escherichia coli O157:H7Homo sapiens
This entity is chimeric
Mutation(s): 6
Gene Names: malEZ5632ECs5017MCL1BCL2L3
UniProt & NIH Common Fund Data Resources
Find proteins for P0AEX9 (Escherichia coli (strain K12))
Explore P0AEX9
Go to UniProtKB:  P0AEX9
Find proteins for Q07820 (Homo sapiens)
Explore Q07820
Go to UniProtKB:  Q07820
PHAROS:  Q07820
GTEx:  ENSG00000143384
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsP0AEX9Q07820
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 2
MoleculeChains Length2D Diagram Glycosylation3D Interactions
alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
B
2N/A
Glycosylation Resources
GlyTouCan:  G07411ON
GlyCosmos:  G07411ON
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
OK2 (Subject of Investigation/LOI)
Query on OK2

Download Ideal Coordinates CCD File
D [auth A](2~{R})-2-[5-[3-chloranyl-2-methyl-4-[2-(4-methylpiperazin-1-yl)ethoxy]phenyl]-6-(4-fluorophenyl)thieno[2,3-d]pyrimidin-4-yl]oxy-3-[2-(pyrazin-2-ylmethoxy)phenyl]propanoic acid
C40 H38 Cl F N6 O5 S
SADZXBZFMGZHNM-MGBGTMOVSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
C [auth A]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Biologically Interesting Molecules (External Reference) 1 Unique
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.235
  • R-Value Work: 0.187
  • R-Value Observed: 0.189
  • Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 98.89α = 90
b = 136.6β = 90
c = 38.31γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XSCALEdata scaling
MOLREPphasing
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2020-11-18
    Type: Initial release
  • Version 1.1: 2020-12-02
    Changes: Database references
  • Version 1.2: 2024-01-24
    Changes: Data collection, Database references, Refinement description
