6PPP

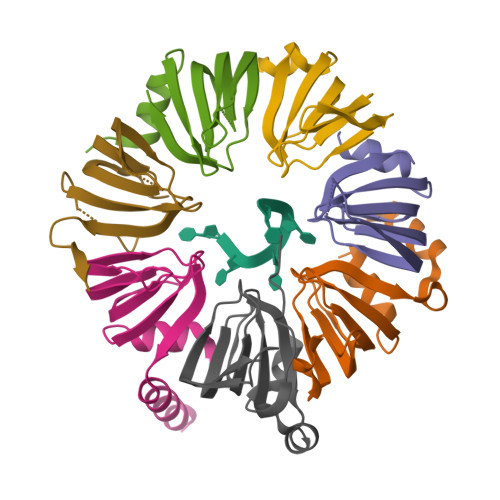

Structure of S. pombe Lsm2-8 with processed U6 snRNA


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.33 Å

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Molecular basis for the distinct cellular functions of the Lsm1-7 and Lsm2-8 complexes.

Montemayor, E.J.Virta, J.M.Hayes, S.M.Nomura, Y.Brow, D.A.Butcher, S.E.

(2020) RNA 26: 1400-1413

  • DOI: https://doi.org/10.1261/rna.075879.120
  • Primary Citation of Related Structures:
    6PPN, 6PPP, 6PPQ, 6PPV

  • PubMed Abstract:

    Eukaryotes possess eight highly conserved Lsm (like Sm) proteins that assemble into circular, heteroheptameric complexes, bind RNA, and direct a diverse range of biological processes. Among the many essential functions of Lsm proteins, the cytoplasmic Lsm1-7 complex initiates mRNA decay, while the nuclear Lsm2-8 complex acts as a chaperone for U6 spliceosomal RNA. It has been unclear how these complexes perform their distinct functions while differing by only one out of seven subunits. Here, we elucidate the molecular basis for Lsm-RNA recognition and present four high-resolution structures of Lsm complexes bound to RNAs. The structures of Lsm2-8 bound to RNA identify the unique 2',3' cyclic phosphate end of U6 as a prime determinant of specificity. In contrast, the Lsm1-7 complex strongly discriminates against cyclic phosphates and tightly binds to oligouridylate tracts with terminal purines. Lsm5 uniquely recognizes purine bases, explaining its divergent sequence relative to other Lsm subunits. Lsm1-7 loads onto RNA from the 3' end and removal of the Lsm1 carboxy-terminal region allows Lsm1-7 to scan along RNA, suggesting a gated mechanism for accessing internal binding sites. These data reveal the molecular basis for RNA binding by Lsm proteins, a fundamental step in the formation of molecular assemblies that are central to eukaryotic mRNA metabolism.


  • Organizational Affiliation

    Department of Biochemistry, University of Wisconsin-Madison, Madison, Wisconsin 53706, USA.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
U6 snRNA-associated Sm-like protein LSm2
B, J
96Schizosaccharomyces pombe 972h-Mutation(s): 0
Gene Names: lsm2SPCC1620.01c
UniProt
Find proteins for O94408 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O94408
Go to UniProtKB:  O94408
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO94408
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Probable U6 snRNA-associated Sm-like protein LSm3
C, K
95Schizosaccharomyces pombe 972h-Mutation(s): 0
Gene Names: lsm3SPBC9B6.05c
UniProt
Find proteins for Q9Y7M4 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore Q9Y7M4
Go to UniProtKB:  Q9Y7M4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y7M4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Probable U6 snRNA-associated Sm-like protein LSm4
D, L
129Schizosaccharomyces pombe 972h-Mutation(s): 0
Gene Names: lsm4SPBC30D10.06
UniProt
Find proteins for O14352 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O14352
Go to UniProtKB:  O14352
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO14352
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
U6 snRNA-associated Sm-like protein LSm5
E, M
80Schizosaccharomyces pombe 972h-Mutation(s): 0
Gene Names: lsm5SPBC20F10.09
UniProt
Find proteins for O42978 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O42978
Go to UniProtKB:  O42978
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO42978
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
U6 snRNA-associated Sm-like protein LSm6
F, N
77Schizosaccharomyces pombe 972h-Mutation(s): 0
Gene Names: lsm6SPAC2F3.17c
UniProt
Find proteins for Q9UUI1 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore Q9UUI1
Go to UniProtKB:  Q9UUI1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UUI1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
U6 snRNA-associated Sm-like protein LSm7
G, O
119Schizosaccharomyces pombe 972h-Mutation(s): 0
Gene Names: lsm7SPCC285.12
UniProt
Find proteins for O74499 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O74499
Go to UniProtKB:  O74499
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO74499
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
U6 snRNA-associated Sm-like protein LSm8
H, P
94Schizosaccharomyces pombe 972h-Mutation(s): 0
Gene Names: lsm8SPCC1840.10
UniProt
Find proteins for O74483 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O74483
Go to UniProtKB:  O74483
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO74483
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains LengthOrganismImage
Mimic of processed U6 snRNA
A, I
6synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.33 Å
  • Space Group: P 2 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 70.26α = 90
b = 139.69β = 90
c = 153.92γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
STARANISOdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR35 GM118131

Revision History  (Full details and data files)

  • Version 1.0: 2020-06-17
    Type: Initial release
  • Version 1.1: 2020-09-30
    Changes: Database references
  • Version 1.2: 2023-10-11
    Changes: Data collection, Database references, Refinement description
