6JEZ | pdb_00006jez

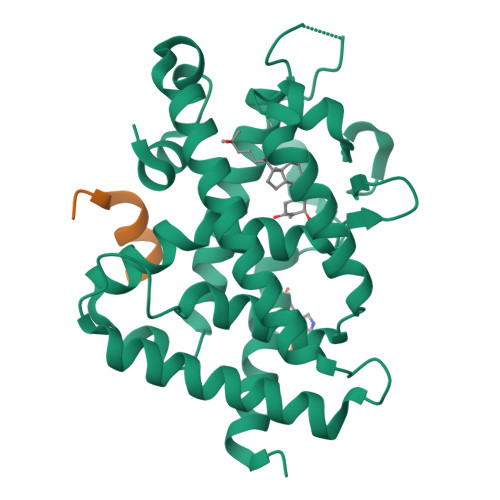

Covalent labeling of rVDR-LBD by turn-on fluorescent probe mediated by conjugate addition and cyclization


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free:
    0.256 (Depositor), 0.270 (DCC)
  • R-Value Work:
    0.202 (Depositor), 0.210 (DCC)
  • R-Value Observed:
    0.205 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted YSVClick on this verticalbar to view detailsBest fitted EJOClick on this verticalbar to view details

This is version 1.2 of the entry. See complete history


Literature

Cyclization Reaction-Based Turn-on Probe for Covalent Labeling of Target Proteins.

Kojima, H.Fujita, Y.Takeuchi, R.Ikebe, Y.Ohashi, N.Yamamoto, K.Itoh, T.

(2020) Cell Chem Biol 27: 334

  • DOI: https://doi.org/10.1016/j.chembiol.2020.01.006
  • Primary Citation of Related Structures:
    6JEY, 6JEZ, 6JF0

  • PubMed Abstract:

    Fluorescent molecules have contributed to basic biological research but there are currently only a limited number of probes available for the detection of non-enzymatic proteins. Here, we report turn-on fluorescent probes mediated by conjugate addition and cyclization (TCC probes). These probes react with multiple amino acids and exhibit a 36-fold greater emission intensity after reaction. We analyzed the reactions between TCC probes and nuclear receptors by electrospray ionization mass spectrometry, X-ray crystallography, spectrofluorometry, and fluorescence microscopy. In vitro analysis showed that probes consisting of a protein ligand and TCC could label vitamin D receptor and peroxisome proliferator-activated receptor γ. Moreover, we demonstrated that not only a ligand unit but also a peptide unit can label the target protein in a complex mixture.


  • Organizational Affiliation

    Showa Pharmaceutical University, 3-3165 Higashi-Tamagawagakuen, Machida, Tokyo 194-8543, Japan.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Vitamin D3 receptor,Vitamin D3 receptor271Rattus norvegicusMutation(s): 0
Gene Names: VdrNr1i1
UniProt
Find proteins for P13053 (Rattus norvegicus)
Explore P13053
Go to UniProtKB:  P13053
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP13053
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 1B [auth C]13Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q15648 (Homo sapiens)
Explore Q15648
Go to UniProtKB:  Q15648
PHAROS:  Q15648
GTEx:  ENSG00000125686
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15648
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
YSV
Query on YSV

Download Ideal Coordinates CCD File
C [auth A](1R,3R)-5-(2-((1R,3aS,7aR,E)-1-((R)-6-hydroxy-6-methylheptan-2-yl)-7a-methyloctahydro-4H-inden-4-ylidene)ethylidene)-2- methylenecyclohexane-1,3-diol
C27 H44 O3
UHMPCVGLSKFXHR-JUTHDLPNSA-N
EJO
Query on EJO

Download Ideal Coordinates CCD File
D [auth A]7-(diethylamino)chromen-2-one
C13 H15 N O2
QXAMGWKESXGGNV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free:  0.256 (Depositor), 0.270 (DCC)
  • R-Value Work:  0.202 (Depositor), 0.210 (DCC)
  • R-Value Observed: 0.205 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 153.93α = 90
b = 43.39β = 95.3
c = 42γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
iMOSFLMdata reduction
Aimlessdata scaling
REFMACphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted YSVClick on this verticalbar to view detailsBest fitted EJOClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2020-02-12
    Type: Initial release
  • Version 1.1: 2020-04-08
    Changes: Database references
  • Version 1.2: 2023-11-22
    Changes: Data collection, Database references, Derived calculations, Refinement description, Structure summary
