6TZY

Crystal Structure of a lipin/Pah Phosphatidic Acid Phosphatase

• PDB DOI: https://doi.org/10.2210/pdb6TZY/pdb

• Classification: HYDROLASE
• Organism(s): Tetrahymena thermophila
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2019-08-13 Released: 2020-03-18
• Deposition Author(s): Khayyo, V.I., Airola, M.V.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), American Heart Association

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 3.00 Å
• R-Value Free: 0.268
• R-Value Work: 0.237
• R-Value Observed: 0.238

Starting Model: experimental

Literature

Crystal Structure of a lipin/Pah Phosphatidic Acid Phosphatase

Khayyo, V.I., Hoffmann, R.M., Wang, H., Bell, J.A., Burke, J.E., Reue, K., Airola, M.V.

(2020) Nat Commun 11: 1309

• DOI: https://doi.org/10.1038/s41467-020-15124-z

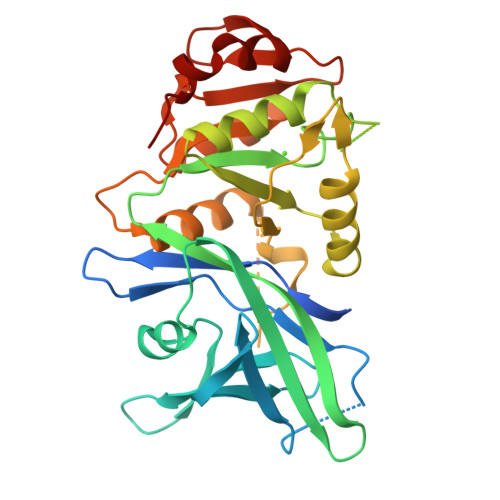

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

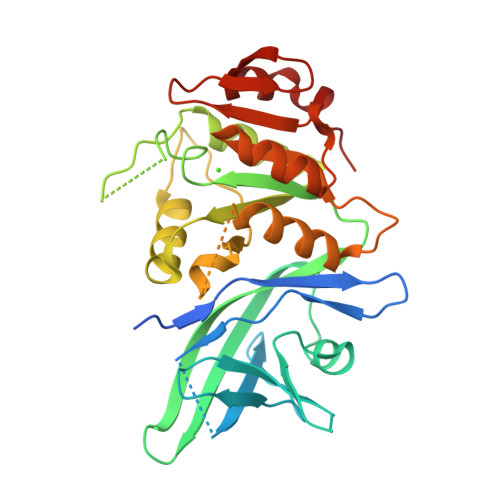

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

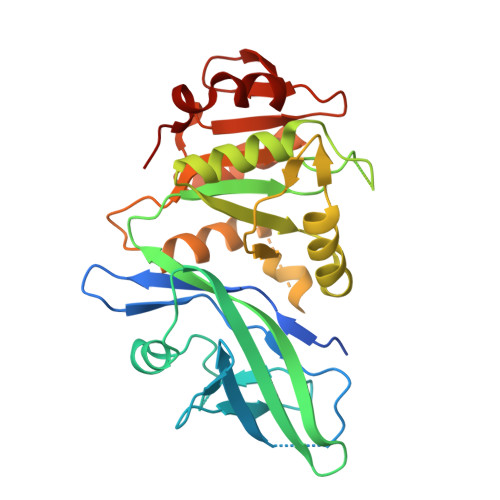

Biological Assembly 3

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 3 assigned by authors and generated by PISA (software)

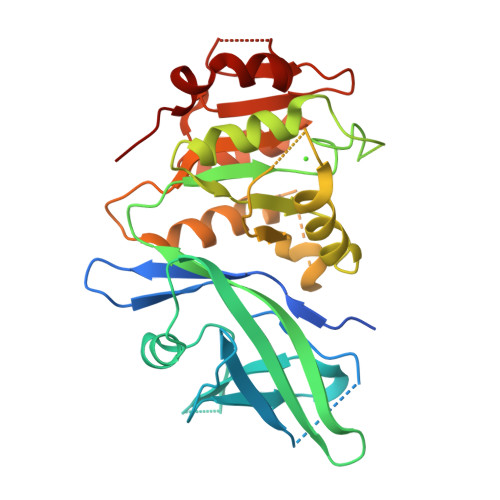

Biological Assembly 4

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 4 assigned by authors and generated by PISA (software)

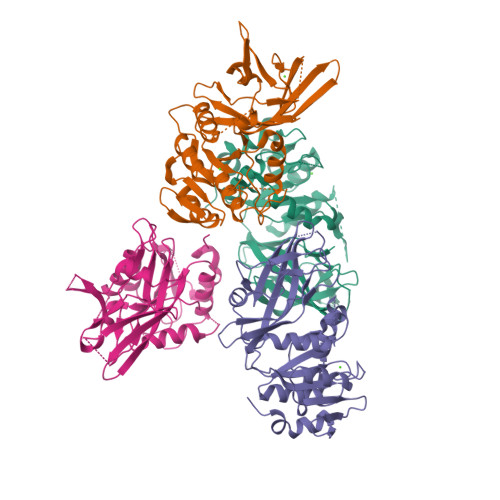

Macromolecule Content

• Total Structure Weight: 147.14 kDa
• Atom Count: 8,653
• Modelled Residue Count: 1,063
• Deposited Residue Count: 1,284
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Nuclear elongation and deformation protein	A, B, C, D	321	Tetrahymena thermophila	Mutation(s): 0  Gene Names: TTHERM_00215970
UniProt
Find proteins for I7MFJ3 (Tetrahymena thermophila (strain SB210)) Explore I7MFJ3  Go to UniProtKB:  I7MFJ3

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CA	E [auth A], F [auth B], G [auth B], H [auth C], I [auth D]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 3.00 Å
• R-Value Free: 0.268
• R-Value Work: 0.237
• R-Value Observed: 0.238
• Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 108.017	α = 90
b = 135.126	β = 116.19
c = 90.974	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
PHASER	phasing
PDB_EXTRACT	data extraction
DIALS	data reduction

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2020-03-18
Deposition Author(s): Khayyo, V.I., Airola, M.V.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM128666
American Heart Association	United States	17SDG33410860
American Heart Association	United States	19PRE34450192

Revision History

• Version 1.0: 2020-03-18
  Type: Initial release

• Version 1.1: 2023-10-11
  Changes: Data collection, Database references, Derived calculations, Refinement description
