6O7V

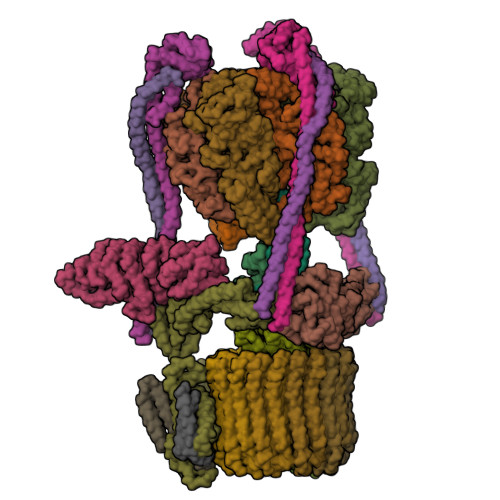

Saccharomyces cerevisiae V-ATPase Stv1-V1VO State 1


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 6.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Structural comparison of the vacuolar and Golgi V-ATPases fromSaccharomyces cerevisiae.

Vasanthakumar, T.Bueler, S.A.Wu, D.Beilsten-Edmands, V.Robinson, C.V.Rubinstein, J.L.

(2019) Proc Natl Acad Sci U S A 116: 7272-7277

  • DOI: https://doi.org/10.1073/pnas.1814818116
  • Primary Citation of Related Structures:
    6O7T, 6O7U, 6O7V, 6O7W, 6O7X

  • PubMed Abstract:

    Proton-translocating vacuolar-type ATPases (V-ATPases) are necessary for numerous processes in eukaryotic cells, including receptor-mediated endocytosis, protein maturation, and lysosomal acidification. In mammals, V-ATPase subunit isoforms are differentially targeted to various intracellular compartments or tissues, but how these subunit isoforms influence enzyme activity is not clear. In the yeast Saccharomyces cerevisiae , isoform diversity is limited to two different versions of the proton-translocating subunit a: Vph1p, which is targeted to the vacuole, and Stv1p, which is targeted to the Golgi apparatus and endosomes. We show that purified V-ATPase complexes containing Vph1p have higher ATPase activity than complexes containing Stv1p and that the relative difference in activity depends on the presence of lipids. We also show that V O complexes containing Stv1p could be readily purified without attached V 1 regions. We used this effect to determine structures of the membrane-embedded V O region with Stv1p at 3.1-Å resolution, which we compare with a structure of the V O region with Vph1p that we determine to 3.2-Å resolution. These maps reveal differences in the surface charge near the cytoplasmic proton half-channel. Both maps also show the presence of bound lipids, as well as regularly spaced densities that may correspond to ergosterol or bound detergent, around the c-ring.


  • Organizational Affiliation

    Molecular Medicine Program, The Hospital for Sick Children, Toronto, ON M5G 0A4, Canada.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit DA [auth M]256Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P32610 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32610
Go to UniProtKB:  P32610
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32610
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit FB [auth N]118Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P39111 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P39111
Go to UniProtKB:  P39111
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP39111
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Vacuolar ATP synthase catalytic subunit AC [auth A],
E [auth C],
G [auth E]
639Saccharomyces cerevisiae RM11-1aMutation(s): 0
EC: 7.1.2.2
UniProt
Find proteins for B3LH69 (Saccharomyces cerevisiae (strain RM11-1a))
Explore B3LH69
Go to UniProtKB:  B3LH69
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupB3LH69
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit BD [auth B],
F [auth D],
H [auth F]
517Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P16140 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P16140
Go to UniProtKB:  P16140
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP16140
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit GI [auth L],
M [auth H],
O [auth J]
114Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P48836 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P48836
Go to UniProtKB:  P48836
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP48836
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit EJ [auth K],
N [auth G],
P [auth I]
233Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P22203 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22203
Go to UniProtKB:  P22203
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22203
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit HK [auth P]478Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P41807 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P41807
Go to UniProtKB:  P41807
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP41807
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit CL [auth O]392Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P31412 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P31412
Go to UniProtKB:  P31412
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP31412
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit a, Golgi isoformQ [auth a]890Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P37296 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P37296
Go to UniProtKB:  P37296
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP37296
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
V0 assembly protein 1R [auth b]265Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P53262 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P53262
Go to UniProtKB:  P53262
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53262
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit c''S [auth c]213Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P23968 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P23968
Go to UniProtKB:  P23968
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23968
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit dT [auth d]345Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P32366 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32366
Go to UniProtKB:  P32366
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32366
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit c160Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P25515 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P25515
Go to UniProtKB:  P25515
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25515
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit c'CA [auth o]164Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P32842 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32842
Go to UniProtKB:  P32842
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32842
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit eDA [auth e]73Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for Q3E7B6 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q3E7B6
Go to UniProtKB:  Q3E7B6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3E7B6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage
Putative protein YPR170W-BEA [auth f]85Saccharomyces cerevisiae S288CMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P0C5R9 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P0C5R9
Go to UniProtKB:  P0C5R9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0C5R9
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 6.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Canadian Institutes of Health Research (CIHR)CanadaMOP81294

Revision History  (Full details and data files)

  • Version 1.0: 2019-04-03
    Type: Initial release
  • Version 1.1: 2019-04-10
    Changes: Data collection, Database references
  • Version 1.2: 2019-04-24
    Changes: Data collection, Database references
  • Version 1.3: 2020-01-15
    Changes: Author supporting evidence
  • Version 1.4: 2024-03-20
    Changes: Data collection, Database references
