6MBY

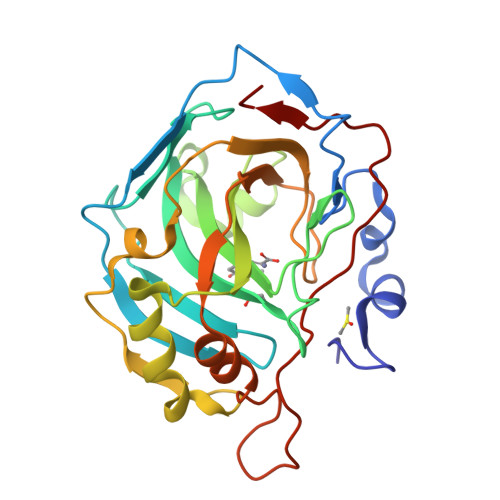

Carbonic Anhydrase II in complex with Ferulic Acid

• PDB DOI: https://doi.org/10.2210/pdb6MBY/pdb

• Classification: LYASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2018-08-30 Released: 2019-03-13
• Deposition Author(s): Lomelino, C.L., McKenna, R.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.50 Å
• R-Value Free: 0.174
• R-Value Work: 0.152
• R-Value Observed: 0.153

Starting Model: experimental

Literature

Carbonic anhydrase II in complex with carboxylic acid-based inhibitors.

Lomelino, C.L., McKenna, R.

(2019) Acta Crystallogr F Struct Biol Commun 75: 166-170

• PubMed: 30839290
• DOI: https://doi.org/10.1107/S2053230X18018344
• Primary Citation of Related Structures:
  6MBV, 6MBY


• PubMed Abstract:


  Carbonic anhydrases (CAs) are molecular targets in various diseases. While many sulfonamide-based drugs are in clinical use, CA inhibitor design is moving towards the incorporation of alternative zinc-binding groups, such as carboxylic acids, to promote CA isoform-specific inhibition. Here, X-ray crystal structures of CA II in complex with nicotinic acid and ferulic acid determined to 1.70 and 1.50 Å resolution, respectively, are reported. Furthermore, the structures of these two compounds are superimposed with previously determined structures to compare the mechanisms of inhibition and the properties of carboxylic acid-based CA inhibitors. This study examines an important class of alternative, non-sulfonamide-based CA inhibitors and provides insight to facilitate the structure-guided design of CA isoform-specific inhibitors.

---

Organizational Affiliation:

Department of Biochemistry and Molecular Biology, College of Medicine, University of Florida, Gainesville, FL 32610, USA.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 29.36 kDa
• Atom Count: 2,295
• Modelled Residue Count: 257
• Deposited Residue Count: 257
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Carbonic anhydrase 2	A	257	Homo sapiens	Mutation(s): 0  Gene Names: CA2 EC: 4.2.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for P00918 (Homo sapiens) Explore P00918  Go to UniProtKB:  P00918
PHAROS:  P00918 GTEx:  ENSG00000104267

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
FER	C [auth A]	3-(4-HYDROXY-3-METHOXYPHENYL)-2-PROPENOIC ACID C10 H10 O4 KSEBMYQBYZTDHS-HWKANZROSA-N
GOL	D [auth A]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N
DMS	E [auth A]	DIMETHYL SULFOXIDE C2 H6 O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N
ZN	B [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Binding Affinity Annotations
ID	Source	Binding Affinity
FER	BindingDB:  6MBY	Ki: min: 2400, max: 2.10e+5 (nM) from 2 assay(s)
		IC50: 6440 (nM) from 1 assay(s)

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.50 Å
• R-Value Free: 0.174
• R-Value Work: 0.152
• R-Value Observed: 0.153
• Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 42.146	α = 90
b = 41.334	β = 104.32
c = 72.051	γ = 90

Software Package:

Software Name	Purpose
XDS	data reduction
Aimless	data scaling
PHENIX	refinement
PDB_EXTRACT	data extraction
PHENIX	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2019-03-13
Deposition Author(s): Lomelino, C.L., McKenna, R.

Revision History

• Version 1.0: 2019-03-13
  Type: Initial release

• Version 1.1: 2023-10-11
  Changes: Data collection, Database references, Derived calculations, Refinement description
