6KJ1

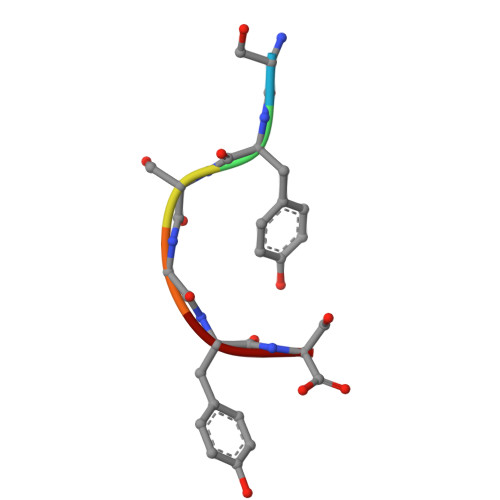

200kV MicroED structure of FUS (37-42) SYSGYS solved from merged datasets at 0.65 A


Experimental Data Snapshot

  • Method: ELECTRON CRYSTALLOGRAPHY
  • Resolution: 0.65 Å
  • R-Value Free: 0.240
  • R-Value Work: 0.229
  • R-Value Observed: 0.230

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Programming Conventional Electron Microscopes for Solving Ultrahigh-Resolution Structures of Small and Macro-Molecules.

Zhou, H.Luo, F.Luo, Z.Li, D.Liu, C.Li, X.

(2019) Anal Chem 91: 10996-11003

  • DOI: https://doi.org/10.1021/acs.analchem.9b01162
  • Primary Citation of Related Structures:
    6KJ1, 6KJ2, 6KJ3, 6KJ4

  • PubMed Abstract:

    Microcrystal electron diffraction (MicroED) is becoming a powerful tool in determining the crystal structures of biological macromolecules and small organic compounds. However, wide applications of this technique are still limited by the special requirement for radiation-tolerated movie-mode camera and the lack of automated data collection methods. Herein, we develop a stage-camera synchronization scheme to minimize the hardware requirements and enable the use of the conventional electron cryo-microscope with a single-frame CCD camera, which ensures not only the acquisition of ultrahigh-resolution diffraction data but also low cost in practice. This method renders the structure determination of both peptide and small organic compounds at ultrahigh resolution up to ∼0.60 Å with unambiguous assignment of nearly all hydrogen atoms. The present work provides a widely applicable solution for routine structure determination of MicroED and demonstrates the capability of the low-end 120 kV microscope with a CCD camera in solving ultrahigh resolution structures of both organic compounds and biological macromolecules.


  • Organizational Affiliation

    Key Laboratory of Protein Sciences ( Tsinghua University ), Ministry of Education, Beijing 100084 , China.


Macromolecules

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
RNA-binding protein FUS6Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P35637 (Homo sapiens)
Explore P35637
Go to UniProtKB:  P35637
PHAROS:  P35637
GTEx:  ENSG00000089280
Entity Groups
UniProt GroupP35637
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON CRYSTALLOGRAPHY
  • Resolution: 0.65 Å
  • R-Value Free: 0.240
  • R-Value Work: 0.229
  • R-Value Observed: 0.230
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 18.21α = 90
b = 4.93β = 91
c = 18.77γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Technology (China)China2016YFA0501902
Ministry of Science and Technology (China)China2016YFA0501102
National Natural Science Foundation of ChinaChina31570730
National Natural Science Foundation of ChinaChina91853113

Revision History  (Full details and data files)

  • Version 1.0: 2019-10-02
    Type: Initial release
  • Version 1.1: 2019-11-20
    Changes: Data processing
  • Version 1.2: 2024-03-27
    Changes: Data collection, Database references
