6J60

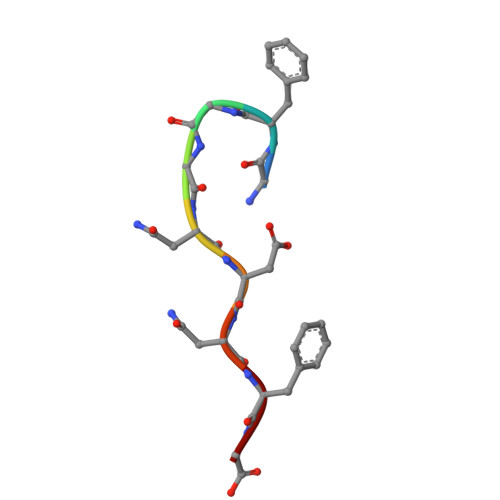

hnRNP A1 reversible amyloid core GFGGNDNFG (residues 209-217)


Experimental Data Snapshot

  • Method: ELECTRON CRYSTALLOGRAPHY
  • Resolution: 0.96 Å
  • R-Value Free: 0.248
  • R-Value Work: 0.233
  • R-Value Observed: 0.235

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structural basis for reversible amyloids of hnRNPA1 elucidates their role in stress granule assembly.

Gui, X.Luo, F.Li, Y.Zhou, H.Qin, Z.Liu, Z.Gu, J.Xie, M.Zhao, K.Dai, B.Shin, W.S.He, J.He, L.Jiang, L.Zhao, M.Sun, B.Li, X.Liu, C.Li, D.

(2019) Nat Commun 10: 2006-2006

  • DOI: https://doi.org/10.1038/s41467-019-09902-7
  • Primary Citation of Related Structures:
    5ZGD, 5ZGL, 6J60

  • PubMed Abstract:

    Subcellular membrane-less organelles consist of proteins with low complexity domains. Many of them, such as hnRNPA1, can assemble into both a polydisperse liquid phase and an ordered solid phase of amyloid fibril. The former mirrors biological granule assembly, while the latter is usually associated with neurodegenerative disease. Here, we observe a reversible amyloid formation of hnRNPA1 that synchronizes with liquid-liquid phase separation, regulates the fluidity and mobility of the liquid-like droplets, and facilitates the recruitment of hnRNPA1 into stress granules. We identify the reversible amyloid-forming cores of hnRNPA1 (named hnRACs). The atomic structures of hnRACs reveal a distinct feature of stacking Asp residues, which contributes to fibril reversibility and explains the irreversible pathological fibril formation caused by the Asp mutations identified in familial ALS. Our work characterizes the structural diversity and heterogeneity of reversible amyloid fibrils and illuminates the biological function of reversible amyloid formation in protein phase separation.


  • Organizational Affiliation

    Interdisciplinary Research Center on Biology and Chemistry, Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences, Shanghai, 201210, China.


Macromolecules

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
9-mer peptide (GFGGNDNFG) from Heterogeneous nuclear ribonucleoprotein A19Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P09651 (Homo sapiens)
Explore P09651
Go to UniProtKB:  P09651
PHAROS:  P09651
GTEx:  ENSG00000135486
Entity Groups
UniProt GroupP09651
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON CRYSTALLOGRAPHY
  • Resolution: 0.96 Å
  • R-Value Free: 0.248
  • R-Value Work: 0.233
  • R-Value Observed: 0.235
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 5.01α = 90
b = 27.8β = 90
c = 36.45γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONSHELXD
RECONSTRUCTIONPHENIX
RECONSTRUCTIONCoot
MODEL REFINEMENTPHENIX1.13-2998-000

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2019-04-03
    Type: Initial release
  • Version 1.1: 2019-10-16
    Changes: Data collection, Database references
  • Version 1.2: 2024-03-27
    Changes: Data collection, Database references
