Download MendeleyStructure of human DNA polymerase beta complexed with 8-ClG in the template base paired with incoming non-hydrolyzable CTP and MANGANESE
Koag, M.-C., Lee, S.To be published.
6CU9

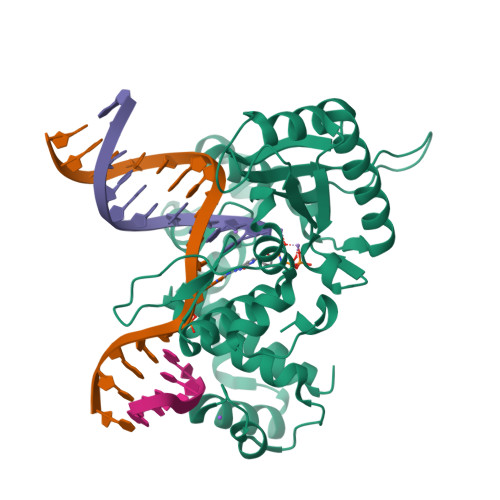

Structure of human DNA polymerase beta complexed with 8-ClG in the template base paired with incoming non-hydrolyzable CTP and MANGANESE
- PDB DOI: https://doi.org/10.2210/pdb6CU9/pdb
- NAKB: 6CU9
- Classification: Transferase, Lyase/DNA
- Organism(s): Homo sapiens
- Expression System: Escherichia coli
- Mutation(s): No
- Deposited: 2018-03-24 Released: 2019-03-27
Experimental Data Snapshot
- Method: X-RAY DIFFRACTION
- Resolution: 2.04 Å
- R-Value Free: 0.241
- R-Value Work: 0.194
- R-Value Observed: 0.196
This is version 1.1 of the entry. See complete history.
Literature
To be published.
Macromolecules
Find similar proteins by:
(by identity cutoff) | 3D Structure
Entity ID: 1 | |||||
|---|---|---|---|---|---|
| Molecule | Chains | Sequence Length | Organism | Details | Image |
| DNA polymerase beta | 335 | Homo sapiens | Mutation(s): 0 Gene Names: POLB EC: 2.7.7.7 (PDB Primary Data), 4.2.99 (PDB Primary Data), 4.2.99.18 (UniProt) |  | |
UniProt & NIH Common Fund Data Resources | |||||
Find proteins for P06746 (Homo sapiens) Explore P06746 Go to UniProtKB: P06746 | |||||
PHAROS: P06746 GTEx: ENSG00000070501 | |||||
Entity Groups | |||||
| Sequence Clusters | 30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity | ||||
| UniProt Group | P06746 | ||||
Sequence AnnotationsExpand | |||||
| |||||
Find similar nucleic acids by: Sequence | 3D Structure
Entity ID: 2 | |||||
|---|---|---|---|---|---|
| Molecule | Chains | Length | Organism | Image | |
| DNA (5'-D(*CP*CP*GP*AP*CP*(CGM)P*TP*CP*GP*CP*AP*TP*CP*AP*GP*C)-3') | B [auth T] | 16 | Homo sapiens |  | |
Sequence AnnotationsExpand | |||||
| |||||
Find similar nucleic acids by: Sequence | 3D Structure
Entity ID: 3 | |||||
|---|---|---|---|---|---|
| Molecule | Chains | Length | Organism | Image | |
| DNA (5'-D(*GP*CP*TP*GP*AP*TP*GP*CP*GP*A)-3') | C [auth P] | 10 | Homo sapiens |  | |
Sequence AnnotationsExpand | |||||
| |||||
Find similar nucleic acids by: Sequence | 3D Structure
Entity ID: 4 | |||||
|---|---|---|---|---|---|
| Molecule | Chains | Length | Organism | Image | |
| DNA (5'-D(P*GP*TP*CP*GP*G)-3') | 5 | Homo sapiens |  | ||
Sequence AnnotationsExpand | |||||
| |||||
Small Molecules
| Ligands 3 Unique | |||||
|---|---|---|---|---|---|
| ID | Chains | Name / Formula / InChI Key | 2D Diagram | 3D Interactions | |
| 0KX Query on 0KX | I [auth A] | 2'-deoxy-5'-O-[(R)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]cytidine C9 H17 N4 O12 P3 STYMTWKSQLVXJN-SHYZEUOFSA-N |  | ||
| MN Query on MN | E [auth A], F [auth A] | MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N |  | ||
| NA Query on NA | G [auth A], H [auth A] | SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N |  | ||
Experimental Data & Validation
Experimental Data
- Method: X-RAY DIFFRACTION
- Resolution: 2.04 Å
- R-Value Free: 0.241
- R-Value Work: 0.194
- R-Value Observed: 0.196
- Space Group: P 1 21 1
Unit Cell:
| Length ( Å ) | Angle ( ˚ ) |
|---|---|
| a = 50.707 | α = 90 |
| b = 80.049 | β = 107.7 |
| c = 55.602 | γ = 90 |
| Software Name | Purpose |
|---|---|
| PHENIX | refinement |
| HKL-2000 | data reduction |
| HKL-2000 | data scaling |
| MOLREP | phasing |
Entry History
Deposition Data
- Released Date: 2019-03-27 Deposition Author(s): Koag, M.-C., Lee, S.
Revision History (Full details and data files)
- Version 1.0: 2019-03-27
Type: Initial release - Version 1.1: 2024-03-13
Changes: Data collection, Database references, Derived calculations
