6CJ5

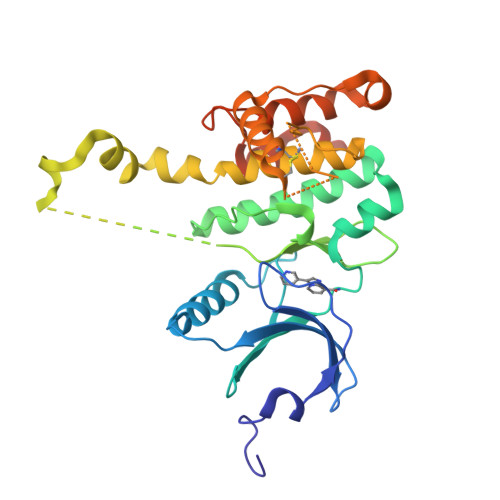

Crystal Structure of Mnk2-D228G in Complex With Inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free: 0.280
  • R-Value Work: 0.204
  • R-Value Observed: 0.207

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structure-based Design of Pyridone-Aminal eFT508 Targeting Dysregulated Translation by Selective Mitogen-activated Protein Kinase Interacting Kinases 1 and 2 (MNK1/2) Inhibition.

Reich, S.H.Sprengeler, P.A.Chiang, G.G.Appleman, J.R.Chen, J.Clarine, J.Eam, B.Ernst, J.T.Han, Q.Goel, V.K.Han, E.Z.R.Huang, V.Hung, I.N.J.Jemison, A.Jessen, K.A.Molter, J.Murphy, D.Neal, M.Parker, G.S.Shaghafi, M.Sperry, S.Staunton, J.Stumpf, C.R.Thompson, P.A.Tran, C.Webber, S.E.Wegerski, C.J.Zheng, H.Webster, K.R.

(2018) J Med Chem 61: 3516-3540

  • DOI: https://doi.org/10.1021/acs.jmedchem.7b01795
  • Primary Citation of Related Structures:
    6CJ5, 6CJE, 6CJH, 6CJW, 6CJY, 6CK3, 6CK6, 6CKI

  • PubMed Abstract:

    Dysregulated translation of mRNA plays a major role in tumorigenesis. Mitogen-activated protein kinase interacting kinases (MNK)1/2 are key regulators of mRNA translation integrating signals from oncogenic and immune signaling pathways through phosphorylation of eIF4E and other mRNA binding proteins. Modulation of these key effector proteins regulates mRNA, which controls tumor/stromal cell signaling. Compound 23 (eFT508), an exquisitely selective, potent dual MNK1/2 inhibitor, was designed to assess the potential for control of oncogene signaling at the level of mRNA translation. The crystal structure-guided design leverages stereoelectronic interactions unique to MNK culminating in a novel pyridone-aminal structure described for the first time in the kinase literature. Compound 23 has potent in vivo antitumor activity in models of diffuse large cell B-cell lymphoma and solid tumors, suggesting that controlling dysregulated translation has real therapeutic potential. Compound 23 is currently being evaluated in Phase 2 clinical trials in solid tumors and lymphoma. Compound 23 is the first highly selective dual MNK inhibitor targeting dysregulated translation being assessed clinically.


  • Organizational Affiliation

    eFFECTOR Therapeutics , 11180 Roselle Street , San Diego , California 92121 , United States.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
MAP kinase-interacting serine/threonine-protein kinase 2316Homo sapiensMutation(s): 1
Gene Names: MKNK2GPRK7MNK2
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q9HBH9 (Homo sapiens)
Explore Q9HBH9
Go to UniProtKB:  Q9HBH9
PHAROS:  Q9HBH9
GTEx:  ENSG00000099875
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9HBH9
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free: 0.280
  • R-Value Work: 0.204
  • R-Value Observed: 0.207
  • Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 105.37α = 90
b = 105.37β = 90
c = 72.4γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
AutoProcessdata processing
iMOSFLMdata reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

  • Released Date: 2018-05-09
  • Deposition Author(s): Han, Q.

Revision History  (Full details and data files)

  • Version 1.0: 2018-05-09
    Type: Initial release
  • Version 1.1: 2024-10-23
    Changes: Data collection, Database references, Refinement description, Structure summary
