6A8H | pdb_00006a8h

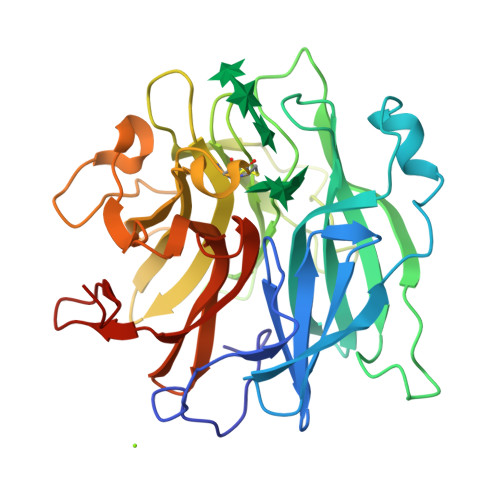

Crystal structure of endo-arabinanase ABN-TS D27A mutant in complex with arabinotriose


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.65 Å
  • R-Value Free:
    0.195 (Depositor), 0.200 (DCC)
  • R-Value Work:
    0.147 (Depositor), 0.159 (DCC)
  • R-Value Observed:
    0.149 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 6A8H

This is version 2.2 of the entry. See complete history

Literature

Structures of endo-1,5-alpha-L-arabinanase mutants from Bacillus thermodenitrificans TS-3 in complex with arabino-oligosaccharides.

Yamaguchi, A.Sogabe, Y.Fukuoka, S.Sakai, T.Tada, T.

(2018) Acta Crystallogr F Struct Biol Commun 74: 774-780

  • DOI: https://doi.org/10.1107/S2053230X18015947
  • Primary Citation Related Structures:
    6A8H, 6A8I

  • PubMed Abstract:

    The thermostable endo-1,5-α-L-arabinanase from Bacillus thermodenitrificans TS-3 (ABN-TS) hydrolyzes the α-1,5-L-arabinofuranoside linkages of arabinan. In this study, the crystal structures of inactive ABN-TS mutants, D27A and D147N, were determined in complex with arabino-oligosaccharides. The crystal structures revealed that ABN-TS has at least six subsites in the deep V-shaped cleft formed across one face of the propeller structure. The structural features indicate that substrate recognition is profoundly influenced by the remote subsites as well as by the subsites surrounding the active center. The `open' structure of the substrate-binding cleft of the endo-acting ABN-TS is suitable for the random binding of several sugar units in polymeric substrates.


  • Organizational Affiliation
    • Graduate School of Science, Osaka Prefecture University, Sakai, Osaka 599-8531, Japan.

Macromolecule Content

  • Total Structure Weight: 37.41 kDa
  • Atom Count: 2,847
  • Modeled Residue Count: 315
  • Deposited Residue Count: 321
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
endo-alpha-(1->5)-L-arabinanase321Geobacillus thermodenitrificansMutation(s): 1
Gene Names: abn-ts
EC: 3.2.1.99
UniProt
Find proteins for Q93HT9 (Geobacillus thermodenitrificans)
Explore Q93HT9
Go to UniProtKB:  Q93HT9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ93HT9
Sequence Annotations
Expand
Reference Sequence

Oligosaccharides

Help
Entity ID: 2
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-L-arabinofuranose-(1-5)-alpha-L-arabinofuranose-(1-5)-alpha-L-arabinofuranose
B, C
3N/A
Glycosylation Resources
GlyTouCan: G56809YT
GlyCosmos: G56809YT

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.65 Å
  • R-Value Free:  0.195 (Depositor), 0.200 (DCC)
  • R-Value Work:  0.147 (Depositor), 0.159 (DCC)
  • R-Value Observed: 0.149 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 40.125α = 90
b = 77.032β = 90
c = 88.701γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2018-12-19
    Type: Initial release
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Advisory, Atomic model, Data collection, Derived calculations, Structure summary
  • Version 2.1: 2023-11-22
    Changes: Data collection, Database references, Derived calculations, Refinement description, Structure summary
  • Version 2.2: 2024-11-06
    Changes: Structure summary
