5UTO

The crystal structure of the Staphylococcus aureus Fatty acid Kinase (Fak) B1 protein loaded with palmitic acid to 1.83 Angstrom resolution

• PDB DOI: https://doi.org/10.2210/pdb5UTO/pdb

• Classification: TRANSPORT PROTEIN
• Organism(s): Staphylococcus aureus
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2017-02-15 Released: 2018-02-21
• Deposition Author(s): Cuypers, M.G., Ericson, M., Subramanian, C., Broussard, T.C., Miller, D.J., White, S.W., Rock, C.O.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.83 Å
• R-Value Free: 0.191
• R-Value Work: 0.158
• R-Value Observed: 0.160

Starting Model: experimental

Literature

The crystal structure of the Staphylococcus aureus Fatty acid Kinase (Fak) B1 protein loaded with palmitic acid to 1.83 Angstroem resolution

Cuypers, M.G., Ericson, M., Subramanian, C., Broussard, T.C., Miller, D.J., White, S.W., Rock, C.O.

(2018) J Biol Chem

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

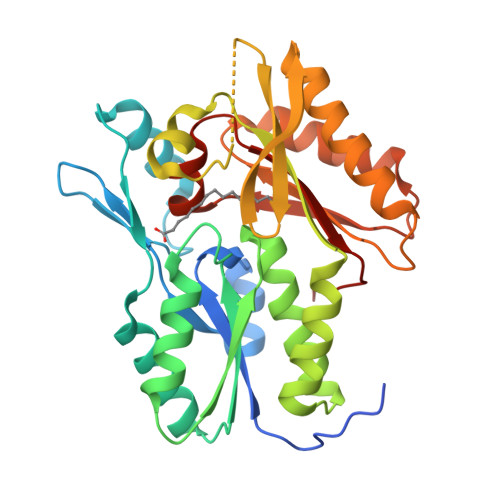

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 69.06 kDa
• Atom Count: 5,298
• Modelled Residue Count: 575
• Deposited Residue Count: 616
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
EDD domain protein, DegV family	A, B	308	Staphylococcus aureus	Mutation(s): 0  Gene Names: ERS072738_00223, ERS072840_01626, ERS074020_00218, HMPREF3211_01094
UniProt
Find proteins for P0A0N2 (Staphylococcus aureus) Explore P0A0N2  Go to UniProtKB:  P0A0N2

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
PLM	C [auth A], D [auth B]	PALMITIC ACID C16 H32 O2 IPCSVZSSVZVIGE-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.83 Å
• R-Value Free: 0.191
• R-Value Work: 0.158
• R-Value Observed: 0.160
• Space Group: P 1
• Diffraction Data: https://doi.org/10.18430/m35uto

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 33.191	α = 105.18
b = 54.289	β = 90.02
c = 84.396	γ = 107.5

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2018-02-21
Deposition Author(s): Cuypers, M.G., Ericson, M., Subramanian, C., Broussard, T.C., Miller, D.J., White, S.W., Rock, C.O.

Revision History

• Version 1.0: 2018-02-21
  Type: Initial release

• Version 1.1: 2018-11-21
  Changes: Data collection, Database references
• Version 1.2: 2023-10-04
  Changes: Data collection, Database references, Refinement description
