5QSL

PanDDA analysis group deposition -- Crystal Structure of human Brachyury in complex with Z1273312153

• PDB DOI: https://doi.org/10.2210/pdb5QSL/pdb
• Deposition Group: G_1002082 (changed state) ExploreG_1002082

• Classification: TRANSCRIPTION
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2019-05-25 Released: 2019-07-10
• Deposition Author(s): Newman, J.A., Gavard, A.E., Fernandez-Cid, A., Sherestha, L., Burgess-Brown, N.A., von Delft, F., Arrowsmith, C.H., Edwards, A., Bountra, C., Gileadi, O.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free: 0.305
• R-Value Work: 0.243
• R-Value Observed: 0.246

Literature

PanDDA analysis group deposition

Newman, J.A., Gavard, A.E., Fernandez-Cid, A., Sherestha, L., Burgess-Brown, N.A., von Delft, F., Arrowsmith, C.H., Edwards, A., Bountra, C., Gileadi, O.

To be published.

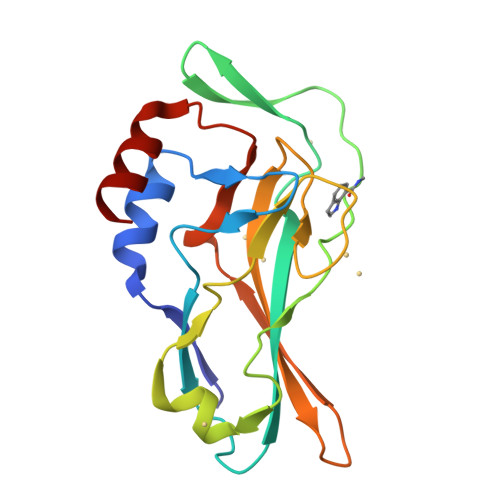

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 20.45 kDa
• Atom Count: 1,465
• Modelled Residue Count: 171
• Deposited Residue Count: 172
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
T-box transcription factor T	A	172	Homo sapiens	Mutation(s): 0  Gene Names: TBXT, T
UniProt & NIH Common Fund Data Resources
Find proteins for O15178 (Homo sapiens) Go to UniProtKB:  O15178
PHAROS:  O15178 GTEx:  ENSG00000164458

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
O2A (Subject of Investigation/LOI)	H [auth A]	N-methyl-1H-indole-7-carboxamide C10 H10 N2 O OKVUYVXDTGOYRU-UHFFFAOYSA-N
CD	B [auth A], C [auth A], D [auth A], E [auth A], F [auth A], G [auth A]	CADMIUM ION Cd WLZRMCYVCSSEQC-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free: 0.305
• R-Value Work: 0.243
• R-Value Observed: 0.246
• Space Group: P 4₁ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 59.902	α = 90
b = 59.902	β = 90
c = 109.696	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
PDB_EXTRACT	data extraction
XDS	data reduction
REFMAC	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2019-07-10
Deposition Author(s): Newman, J.A., Gavard, A.E., Fernandez-Cid, A., Sherestha, L., Burgess-Brown, N.A., von Delft, F., Arrowsmith, C.H., Edwards, A., Bountra, C., Gileadi, O.

Revision History

• Version 1.0: 2019-07-10
  Type: Initial release

• Version 1.1: 2019-08-07
  Changes: Author supporting evidence, Data collection, Structure summary
• Version 1.2: 2024-03-06
  Changes: Data collection, Database references, Derived calculations
