5LHI | pdb_00005lhi

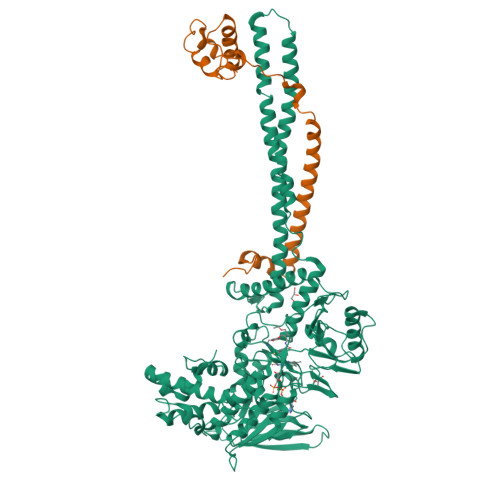

Structure of the KDM1A/CoREST complex with the inhibitor N-[3-(ethoxymethyl)-2-[[4-[[(3R)-pyrrolidin-3-yl]methoxy]phenoxy]methyl]phenyl]-4-methylthieno[3,2-b]pyrrole-5-carboxamide


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.40 Å
  • R-Value Free:
    0.225 (Depositor), 0.227 (DCC)
  • R-Value Work:
    0.195 (Depositor), 0.196 (DCC)
  • R-Value Observed:
    0.197 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 5LHI

Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history

Literature

Thieno[3,2-b]pyrrole-5-carboxamides as New Reversible Inhibitors of Histone Lysine Demethylase KDM1A/LSD1. Part 2: Structure-Based Drug Design and Structure-Activity Relationship.

Vianello, P.Sartori, L.Amigoni, F.Cappa, A.Faga, G.Fattori, R.Legnaghi, E.Ciossani, G.Mattevi, A.Meroni, G.Moretti, L.Cecatiello, V.Pasqualato, S.Romussi, A.Thaler, F.Trifiro, P.Villa, M.Botrugno, O.A.Dessanti, P.Minucci, S.Vultaggio, S.Zagarri, E.Varasi, M.Mercurio, C.

(2017) J Med Chem 60: 1693-1715

  • DOI: https://doi.org/10.1021/acs.jmedchem.6b01019
  • Primary Citation Related Structures:
    5LGT, 5LGU, 5LHG, 5LHH, 5LHI

  • PubMed Abstract:

    The balance of methylation levels at histone H3 lysine 4 (H3K4) is regulated by KDM1A (LSD1). KDM1A is overexpressed in several tumor types, thus representing an emerging target for the development of novel cancer therapeutics. We have previously described ( Part 1, DOI 10.1021.acs.jmedchem.6b01018 ) the identification of thieno[3,2-b]pyrrole-5-carboxamides as novel reversible inhibitors of KDM1A, whose preliminary exploration resulted in compound 2 with biochemical IC 50 = 160 nM. We now report the structure-guided optimization of this chemical series based on multiple ligand/KDM1A-CoRest cocrystal structures, which led to several extremely potent inhibitors. In particular, compounds 46, 49, and 50 showed single-digit nanomolar IC 50 values for in vitro inhibition of KDM1A, with high selectivity in secondary assays. In THP-1 cells, these compounds transcriptionally affected the expression of genes regulated by KDM1A such as CD14, CD11b, and CD86. Moreover, 49 and 50 showed a remarkable anticlonogenic cell growth effect on MLL-AF9 human leukemia cells.


  • Organizational Affiliation
    • Department of Experimental Oncology, Academic Drug Discovery, European Institute of Oncology , Via Adamello 16, 20139 Milano, Italy.

Macromolecule Content

  • Total Structure Weight: 147.6 kDa
  • Atom Count: 6,410
  • Modeled Residue Count: 799
  • Deposited Residue Count: 1,334
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
LYSINE-SPECIFIC HISTONE DEMETHYLASE 1852Homo sapiensMutation(s): 0
EC: 1.14.11 (UniProt), 1.14.99.66 (UniProt), 1.14.11.65 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for O60341 (Homo sapiens)
Explore O60341
Go to UniProtKB:  O60341
PHAROS:  O60341
GTEx:  ENSG00000004487
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO60341
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
REST corepressor 1482Homo sapiensMutation(s): 0
Gene Names: RCOR1KIAA0071RCOR
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UKL0 (Homo sapiens)
Explore Q9UKL0
Go to UniProtKB:  Q9UKL0
PHAROS:  Q9UKL0
GTEx:  ENSG00000089902
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UKL0
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Binding Affinity Annotations
IDSourceBinding Affinity
6X5 BindingDB:  5LHI IC50: 7.8 (nM) from 1 assay(s)

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.40 Å
  • R-Value Free:  0.225 (Depositor), 0.227 (DCC)
  • R-Value Work:  0.195 (Depositor), 0.196 (DCC)
  • R-Value Observed: 0.197 (Depositor)
Space Group: I 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 120.03α = 90
b = 180.37β = 90
c = 235.75γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
xia2data scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2017-02-22
    Type: Initial release
  • Version 1.1: 2017-03-22
    Changes: Database references
  • Version 1.2: 2019-10-16
    Changes: Data collection
  • Version 1.3: 2024-01-10
    Changes: Data collection, Database references, Refinement description
