5DGI | pdb_00005dgi

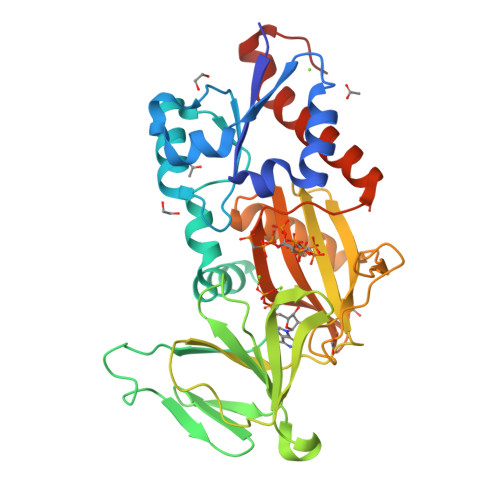

Crystal structure of the catalytic domain of human diphosphoinositol pentakisphosphate kinase 2 (PPIP5K2) in complex with ADP and 3,5-(PCP)2-IP4

  • Classification: TRANSFERASE
  • Organism(s): Homo sapiens
  • Expression System: Escherichia coli BL21
  • Mutation(s): No

  • Deposited: 2015-08-27 Released: 2016-08-10
  • Deposition Author(s): Wang, H., Shears, S.B.
  • Funding Organization(s): National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:
    0.203 (Depositor), 0.202 (DCC)
  • R-Value Work:
    0.150 (Depositor), 0.150 (DCC)
  • R-Value Observed:
    0.153 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 5DGI

Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history

Literature

Cellular Cations Control Conformational Switching of Inositol Pyrophosphate Analogues.

Hager, A.Wu, M.Wang, H.Brown, N.W.Shears, S.B.Veiga, N.Fiedler, D.

(2016) Chemistry 22: 12406-12414

  • DOI: https://doi.org/10.1002/chem.201601754
  • Primary Citation Related Structures:
    5DGH, 5DGI

  • PubMed Abstract:

    The inositol pyrophosphate messengers (PP-InsPs) are emerging as an important class of cellular regulators. These molecules have been linked to numerous biological processes, including insulin secretion and cancer cell migration, but how they trigger such a wide range of cellular responses has remained unanswered in many cases. Here, we show that the PP-InsPs exhibit complex speciation behaviour and propose that a unique conformational switching mechanism could contribute to their multifunctional effects. We synthesised non-hydrolysable bisphosphonate analogues and crystallised the analogues in complex with mammalian PPIP5K2 kinase. Subsequently, the bisphosphonate analogues were used to investigate the protonation sequence, metal-coordination properties, and conformation in solution. Remarkably, the presence of potassium and magnesium ions enabled the analogues to adopt two different conformations near physiological pH. Understanding how the intrinsic chemical properties of the PP-InsPs can contribute to their complex signalling outputs will be essential to elucidate their regulatory functions.


  • Organizational Affiliation
    • Department of Chemistry, Princeton University, Washington Rd., Princeton, New Jersey, 08544, USA.

Macromolecule Content

  • Total Structure Weight: 39.37 kDa
  • Atom Count: 3,088
  • Modeled Residue Count: 318
  • Deposited Residue Count: 330
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Inositol hexakisphosphate and diphosphoinositol-pentakisphosphate kinase 2330Homo sapiensMutation(s): 0
Gene Names: PPIP5K2HISPPD1KIAA0433VIP2
EC: 2.7.4.21 (PDB Primary Data), 2.7.4.24 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for O43314 (Homo sapiens)
Explore O43314
Go to UniProtKB:  O43314
PHAROS:  O43314
GTEx:  ENSG00000145725
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO43314
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
5A2

Query on 5A2



Download:Ideal Coordinates CCD File
C [auth A]3,5-di-methylenebisphosphonate inositol tetrakisphosphate
C8 H24 O28 P8
WDYISGXURTYYJP-XAZAIFFQSA-N
ADP

Query on ADP



Download:Ideal Coordinates CCD File
B [auth A]ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
EDO

Query on EDO



Download:Ideal Coordinates CCD File
H [auth A],
J [auth A],
K [auth A],
L [auth A],
N [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
ACT

Query on ACT



Download:Ideal Coordinates CCD File
G [auth A],
I [auth A],
M [auth A]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
MG

Query on MG



Download:Ideal Coordinates CCD File
D [auth A],
E [auth A],
F [auth A]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:  0.203 (Depositor), 0.202 (DCC)
  • R-Value Work:  0.150 (Depositor), 0.150 (DCC)
  • R-Value Observed: 0.153 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 88.268α = 90
b = 110.205β = 90
c = 41.236γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2016-08-10
    Type: Initial release
  • Version 1.1: 2016-08-24
    Changes: Database references
  • Version 1.2: 2017-09-20
    Changes: Author supporting evidence, Derived calculations, Refinement description
  • Version 1.3: 2019-12-18
    Changes: Author supporting evidence
  • Version 1.4: 2023-09-27
    Changes: Data collection, Database references, Refinement description
