4U6L

Crystal structure of DNA/RNA duplex obtained in the presence of [Co(NH3)6]Cl3 and SrCl2

• PDB DOI: https://doi.org/10.2210/pdb4U6L/pdb
• NAKB: 4U6L

• Classification: DNA/RNA
• Organism(s): synthetic construct
• Mutation(s): No


• Deposited: 2014-07-29 Released: 2015-08-19
• Deposition Author(s): Kondo, J., Nomura, Y., Kitahara, Y., Obika, S., Torigoe, H.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free: 0.275
• R-Value Work: 0.251

Literature

The crystal structure of a 2',4'-BNA(NC)[N-Me]-modified antisense gapmer in complex with the target RNA.

Kondo, J., Nomura, Y., Kitahara, Y., Obika, S., Torigoe, H.

(2016) Chem Commun (Camb) 52: 2354-2357

• PubMed: 26731288
• DOI: https://doi.org/10.1039/c5cc08300a
• Primary Citation of Related Structures:
  4U6K, 4U6L, 4U6M


• PubMed Abstract:


  It has been confirmed by our previous studies that a 2',4'-BNA(NC)[N-Me]-modified antisense gapmer displays high affinity and selectivity to the target RNA strand, promising mRNA inhibitory activity and excellent nuclease resistance. Herein, we have obtained a crystal structure that provides insights into these excellent antisense properties.

---

Organizational Affiliation:

Department of Materials and Life Sciences, Sophia University, 7-1 Kioi-cho, Chiyoda-ku, 102-8554 Tokyo, Japan. [e-mail].

Biological Assembly 1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 5.98 kDa
• Atom Count: 443
• Modelled Residue Count: 18
• Deposited Residue Count: 18
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image
RNA (5'-R(*GP*AP*AP*GP*AP*AP*GP*AP*G)-3')	A	9	synthetic construct

Entity ID: 2
Molecule	Chains	Length	Organism	Image
DNA (5'-D(*(5CM)P*TP*CP*TP*TP*CP*TP*TP*(5CM))-3')	B	9	synthetic construct

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NCO	C [auth A]	COBALT HEXAMMINE(III) Co H18 N6 DYLMFCCYOUSRTK-UHFFFAOYSA-N
SR	D [auth A], E [auth B]	STRONTIUM ION Sr PWYYWQHXAPXYMF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free: 0.275
• R-Value Work: 0.251
• Space Group: P 6₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 48.52	α = 90
b = 48.52	β = 90
c = 46.52	γ = 120

Software Package:

Software Name	Purpose
CrystalClear	data reduction
PHENIX	phasing
CNS	refinement
PDB_EXTRACT	data extraction
SOLVE	model building
d*TREK	data scaling
SOLVE	phasing

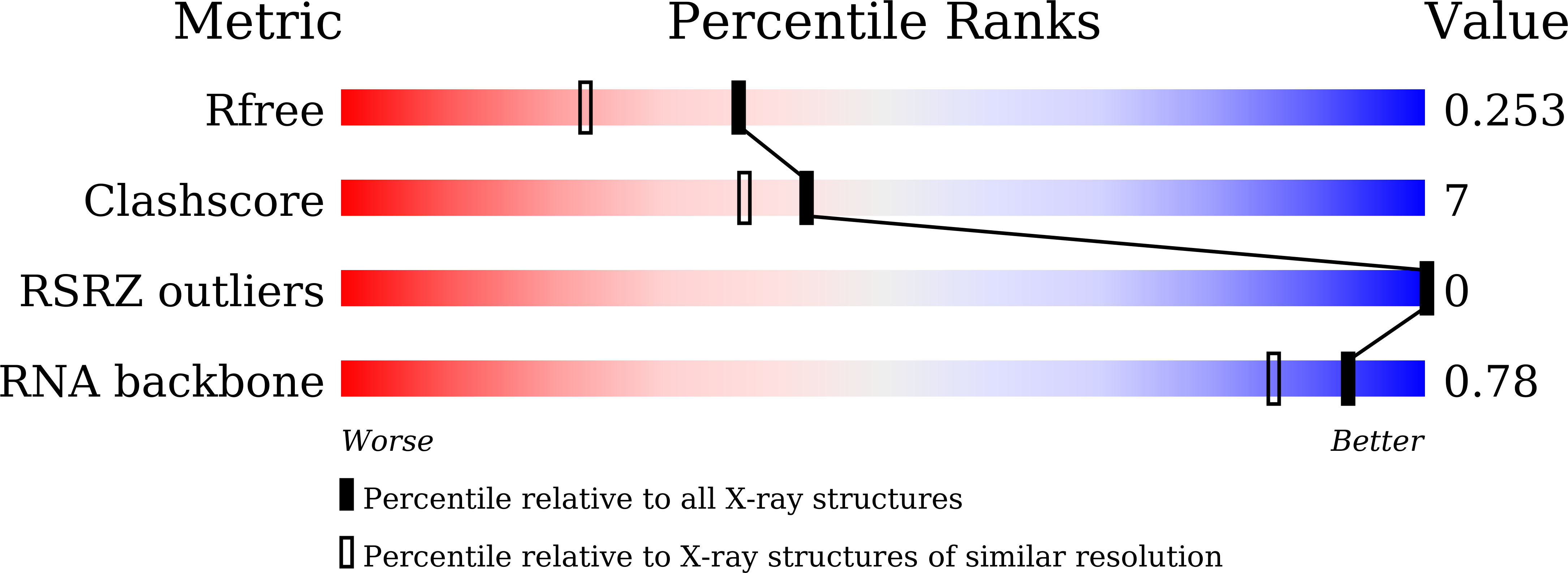

Structure Validation

Entry History

Deposition Data

• Released Date: 2015-08-19
Deposition Author(s): Kondo, J., Nomura, Y., Kitahara, Y., Obika, S., Torigoe, H.

Revision History

• Version 1.0: 2015-08-19
  Type: Initial release

• Version 1.1: 2020-01-29
  Changes: Data collection, Derived calculations, Refinement description
• Version 1.2: 2022-07-06
  Changes: Database references, Derived calculations
• Version 1.3: 2024-06-26
  Changes: Data collection
