4TXR

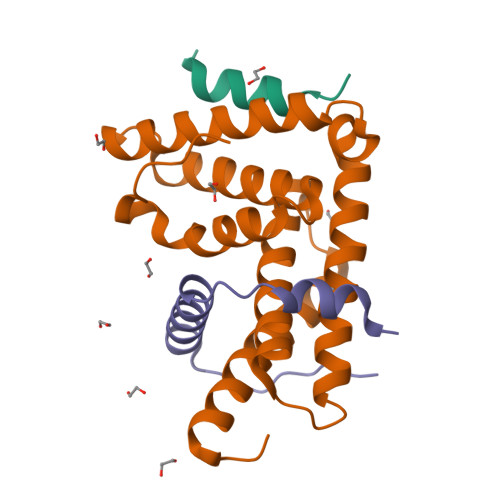

Crystal structure of LIP5 N-terminal domain complexed with CHMP1B MIM and CHMP5 MIM

  • Classification: PROTEIN TRANSPORT
  • Organism(s): Homo sapiens
  • Expression System: Escherichia coli
  • Mutation(s): No

  • Deposited: 2014-07-04 Released: 2015-02-11
  • Deposition Author(s): Vild, C.J., Xu, Z.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.00 Å
  • R-Value Free: 0.180
  • R-Value Work: 0.164
  • R-Value Observed: 0.164

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 2.1 of the entry. See complete history


Literature

A Novel Mechanism of Regulating the ATPase VPS4 by Its Cofactor LIP5 and the Endosomal Sorting Complex Required for Transport (ESCRT)-III Protein CHMP5.

Vild, C.J.Li, Y.Guo, E.Z.Liu, Y.Xu, Z.

(2015) J Biol Chem 290: 7291-7303

  • DOI: https://doi.org/10.1074/jbc.M114.616730
  • Primary Citation of Related Structures:
    4TXP, 4TXQ, 4TXR

  • PubMed Abstract:

    Disassembly of the endosomal sorting complex required for transport (ESCRT) machinery from biological membranes is a critical final step in cellular processes that require the ESCRT function. This reaction is catalyzed by VPS4, an AAA-ATPase whose activity is tightly regulated by a host of proteins, including LIP5 and the ESCRT-III proteins. Here, we present structural and functional analyses of molecular interactions between human VPS4, LIP5, and the ESCRT-III proteins. The N-terminal domain of LIP5 (LIP5NTD) is required for LIP5-mediated stimulation of VPS4, and the ESCRT-III protein CHMP5 strongly inhibits the stimulation. Both of these observations are distinct from what was previously described for homologous yeast proteins. The crystal structure of LIP5NTD in complex with the MIT (microtubule-interacting and transport)-interacting motifs of CHMP5 and a second ESCRT-III protein, CHMP1B, was determined at 1 Å resolution. It reveals an ESCRT-III binding induced moderate conformational change in LIP5NTD, which results from insertion of a conserved CHMP5 tyrosine residue (Tyr(182)) at the core of LIP5NTD structure. Mutation of Tyr(182) partially relieves the inhibition displayed by CHMP5. Together, these results suggest a novel mechanism of VPS4 regulation in metazoans, where CHMP5 functions as a negative allosteric switch to control LIP5-mediated stimulation of VPS4.


  • Organizational Affiliation

    From the Life Sciences Institute and Department of Biological Chemistry, Medical School, University of Michigan, Ann Arbor, Michigan 48109.


Macromolecules

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Charged multivesicular body protein 1bA [auth B]25Homo sapiensMutation(s): 0
Gene Names: CHMP1BC18orf2
UniProt & NIH Common Fund Data Resources
Find proteins for Q7LBR1 (Homo sapiens)
Explore Q7LBR1
Go to UniProtKB:  Q7LBR1
PHAROS:  Q7LBR1
GTEx:  ENSG00000255112
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7LBR1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Vacuolar protein sorting-associated protein VTA1 homologB [auth A]163Homo sapiensMutation(s): 0
Gene Names: VTA1C6orf55HSPC228My012
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NP79 (Homo sapiens)
Explore Q9NP79
Go to UniProtKB:  Q9NP79
PHAROS:  Q9NP79
GTEx:  ENSG00000009844
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NP79
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Charged multivesicular body protein 558Homo sapiensMutation(s): 0
Gene Names: CHMP5C9orf83SNF7DC2CGI-34HSPC177PNAS-114PNAS-2
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NZZ3 (Homo sapiens)
Explore Q9NZZ3
Go to UniProtKB:  Q9NZZ3
PHAROS:  Q9NZZ3
GTEx:  ENSG00000086065
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NZZ3
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
EDO
Query on EDO

Download Ideal Coordinates CCD File
E [auth A]
F [auth A]
G [auth A]
H [auth A]
I [auth A]
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A],
J [auth A],
K [auth A],
L [auth A],
M [auth C]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
ACT
Query on ACT

Download Ideal Coordinates CCD File
D [auth A]ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.00 Å
  • R-Value Free: 0.180
  • R-Value Work: 0.164
  • R-Value Observed: 0.164
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 34.197α = 90
b = 60.567β = 90.39
c = 52.048γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesF027259

Revision History  (Full details and data files)

  • Version 1.0: 2015-02-11
    Type: Initial release
  • Version 1.1: 2015-02-18
    Changes: Database references
  • Version 1.2: 2015-02-25
    Changes: Derived calculations
  • Version 1.3: 2015-03-25
    Changes: Database references
  • Version 2.0: 2019-12-04
    Changes: Advisory, Atomic model, Author supporting evidence, Data collection, Database references, Derived calculations, Source and taxonomy
  • Version 2.1: 2023-09-27
    Changes: Data collection, Database references, Refinement description
