4ZQG | pdb_00004zqg

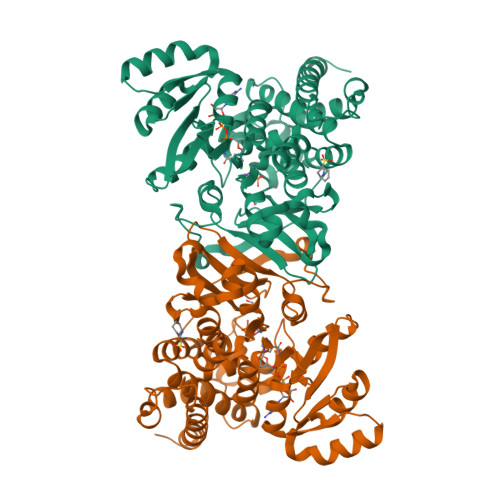

Crystal structure of the Moraxella catarrhalis DOX-P Reductoisomerase in complex with NADH, fosmidomycin and magnesium

PDB DOI: https://doi.org/10.2210/pdb4ZQG/pdb

Classification: OXIDOREDUCTASE
Organism(s): Moraxella catarrhalis
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2015-05-10 Released: 2016-06-29
Deposition Author(s): Birkinshaw, R.W., Brady, R.L.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.50 Å
R-Value Free:
0.230 (Depositor), 0.224 (DCC)
R-Value Work:
0.188 (Depositor), 0.191 (DCC)
R-Value Observed:
0.190 (Depositor)

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Crystal structures of the Moraxella catarrhalis DOX-P Reductoisomerase

Birkinshaw, R.W., Brady, R.L.

To be published.

Macromolecule Content

Total Structure Weight: 91.33 kDa
Atom Count: 6,400
Modeled Residue Count: 816
Deposited Residue Count: 830
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
1-deoxy-D-xylulose 5-phosphate reductoisomerase	A, B	415	Moraxella catarrhalis	Mutation(s): 0 Gene Names: dxr, DR90_1378 EC: 1.1.1.267

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAD Query on NAD Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain H [auth B] MOL2 format, chain C [auth A] MOL2 format, chain H [auth B] mmCIF format, chain C [auth A] mmCIF format, chain H [auth B]	C [auth A], H [auth B]	NICOTINAMIDE-ADENINE-DINUCLEOTIDE C₂₁ H₂₇ N₇ O₁₄ P₂ BAWFJGJZGIEFAR-NNYOXOHSSA-N		Interactions Focus chain C [auth A] Focus chain H [auth B] Interactions & Density Focus chain C [auth A] Focus chain H [auth B]
NHE Query on NHE Download:Ideal Coordinates CCD File SDF format, chain L [auth B] SDF format, chain G [auth A] MOL2 format, chain L [auth B] MOL2 format, chain G [auth A] mmCIF format, chain L [auth B] mmCIF format, chain G [auth A]	G [auth A], L [auth B]	2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID C₈ H₁₇ N O₃ S MKWKNSIESPFAQN-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain L [auth B] Interactions & Density Focus chain G [auth A] Focus chain L [auth B]
FOM Query on FOM Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain J [auth B] MOL2 format, chain E [auth A] MOL2 format, chain J [auth B] mmCIF format, chain E [auth A] mmCIF format, chain J [auth B]	E [auth A], J [auth B]	3-[FORMYL(HYDROXY)AMINO]PROPYLPHOSPHONIC ACID C₄ H₁₀ N O₅ P GJXWDTUCERCKIX-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain J [auth B] Interactions & Density Focus chain E [auth A] Focus chain J [auth B]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain K [auth B] MOL2 format, chain F [auth A] MOL2 format, chain K [auth B] mmCIF format, chain F [auth A] mmCIF format, chain K [auth B]	F [auth A], K [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain K [auth B] Interactions & Density Focus chain F [auth A] Focus chain K [auth B]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain I [auth B] MOL2 format, chain D [auth A] MOL2 format, chain I [auth B] mmCIF format, chain D [auth A] mmCIF format, chain I [auth B]	D [auth A], I [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain I [auth B] Interactions & Density Focus chain D [auth A] Focus chain I [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.50 Å
R-Value Free: 0.230 (Depositor), 0.224 (DCC)
R-Value Work: 0.188 (Depositor), 0.191 (DCC)
R-Value Observed: 0.190 (Depositor)

Space Group: P 6₅

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 65.719	α = 90
b = 65.719	β = 90
c = 390.106	γ = 120

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
SCALA	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

Deposition Data

Released Date: 2016-06-29

Deposition Author(s):

Birkinshaw, R.W.

Brady, R.L.

Revision History (Full details and data files)

Version 1.0: 2016-06-29
Type: Initial release
Version 1.1: 2024-05-08
Changes: Data collection, Database references, Derived calculations, Refinement description
