4MJ6

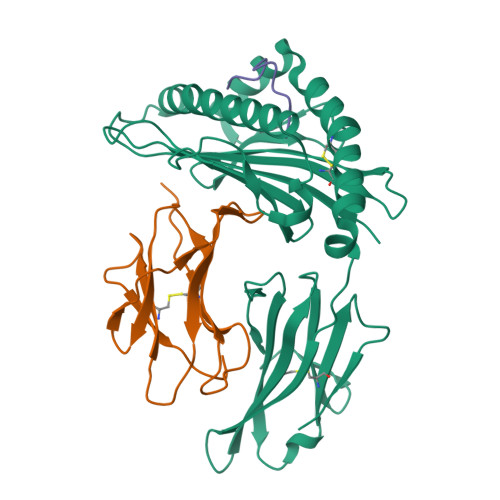

Crystal Structure of HLA-A*1101 in complex with H7-22, an influenza A(H7N9) virus epitope


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.57 Å
  • R-Value Free: 0.247
  • R-Value Work: 0.186
  • R-Value Observed: 0.189

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Cross-immunity Against Avian Influenza A(H7N9) Virus in the Healthy Population Is Affected by Antigenicity-Dependent Substitutions.

Liu, W.J.Tan, S.Zhao, M.Quan, C.Bi, Y.Wu, Y.Zhang, S.Zhang, H.Xiao, H.Qi, J.Yan, J.Liu, W.Yu, H.Shu, Y.Wu, G.Gao, G.F.

(2016) J Infect Dis 214: 1937-1946

  • DOI: https://doi.org/10.1093/infdis/jiw471
  • Primary Citation of Related Structures:
    4MJ5, 4MJ6

  • PubMed Abstract:

     The emergence of infections by the novel avian influenza A(H7N9) virus has posed a threat to human health. Cross-immunity between A(H7N9) and other heterosubtypic influenza viruses affected by antigenicity-dependent substitutions needs to be investigated.  We investigated the cellular and humoral immune responses against A(H7N9) and 2009 pandemic influenza A(H1N1) virus (A[H1N1]pdm09), by serological and T-cell-specific assays, in a healthy population. The molecular bases of the cellular and humoral antigenic variability of A(H7N9) were illuminated by structural determination.  We not only found that antibodies against A(H7N9) were lacking in the studied population, but also revealed that both CD4 + and CD8 + T cells that cross-reacted with A(H7N9) were at significantly lower levels than those against the A(H1N1)pdm09 peptides with substitutions. Moreover, individual peptides for A(H7N9) with low cross-reactivity were identified. Structural determination indicated that substitutions within these peptides influence the antigenic variability of A(H7N9) through both major histocompatibility complex (MHC) binding and T-cell receptor docking.  The impact of antigenicity-dependent substitutions on cross-reactivity of T-cell immunity against the novel influenza virus A(H7N9) in the healthy population benefits the understanding of immune evasion of influenza viruses and provides a useful reference for universal vaccine development.


  • Organizational Affiliation

    Key Laboratory of Medical Virology, Ministry of Health, National Institute for Viral Disease Control and Prevention.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
HLA class I histocompatibility antigen, A-11 alpha chain274Homo sapiensMutation(s): 0
Gene Names: HLA-AHLAA
UniProt & NIH Common Fund Data Resources
Find proteins for P04439 (Homo sapiens)
Explore P04439
Go to UniProtKB:  P04439
PHAROS:  P04439
GTEx:  ENSG00000206503
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04439
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Beta-2-microglobulin100Homo sapiensMutation(s): 0
Gene Names: B2MCDABP0092HDCMA22P
UniProt & NIH Common Fund Data Resources
Find proteins for P61769 (Homo sapiens)
Explore P61769
Go to UniProtKB:  P61769
PHAROS:  P61769
GTEx:  ENSG00000166710
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61769
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Nucleoprotein11Influenza A virus (A/chicken/Soc Trang/4/2012(H5N1))Mutation(s): 0
UniProt
Find proteins for Q9Q0U8 (Influenza A virus (strain A/Goose/Guangdong/1/1996 H5N1 genotype Gs/Gd))
Explore Q9Q0U8
Go to UniProtKB:  Q9Q0U8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Q0U8
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.57 Å
  • R-Value Free: 0.247
  • R-Value Work: 0.186
  • R-Value Observed: 0.189
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 54.993α = 90
b = 65.052β = 90
c = 109.739γ = 90
Software Package:
Software NamePurpose
HKL-2000data collection
PHASESphasing
PHENIXrefinement
DENZOdata reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2014-10-08
    Type: Initial release
  • Version 1.1: 2016-12-07
    Changes: Database references, Structure summary
  • Version 1.2: 2022-08-24
    Changes: Database references
  • Version 1.3: 2024-11-13
    Changes: Data collection, Structure summary
