3UBT

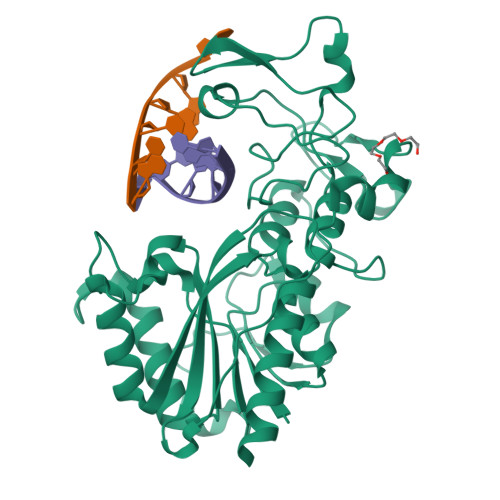

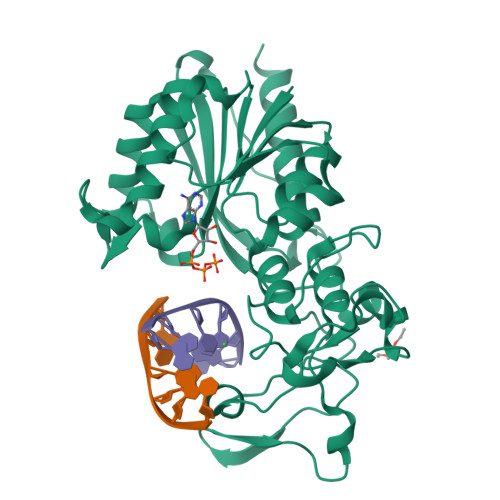

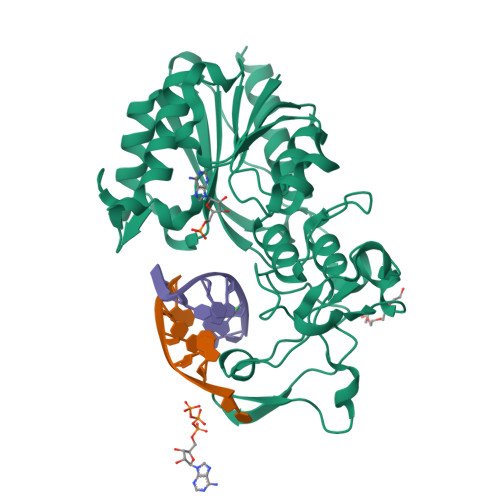

Crystal Structure of C71S Mutant of DNA Cytosine-5 Methyltransferase M.HaeIII Bound to DNA


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free: 0.221
  • R-Value Work: 0.182
  • R-Value Observed: 0.184

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Structural origins of DNA target selection and nucleobase extrusion by a DNA Cytosine methyltransferase.

Didovyk, A.Verdine, G.L.

(2012) J Biol Chem 287: 40099-40105

  • DOI: https://doi.org/10.1074/jbc.M112.413054
  • Primary Citation of Related Structures:
    3UBT

  • PubMed Abstract:

    How DNA 5-cytosine methyltransferases (DCMTases) select their substrate nucleobase for extrusion from DNA duplex is poorly understood. The crystal structure of a pre-extrusion M.HaeIII DCMTase-substrate DNA complex is reported here. M.HaeIII selects its substrate cytosine for extrusion by selectively interfering with its stacking and hydrogen bonding interactions within the DNA duplex. This is the first structural elucidation of the target cytosine selection by a DCMTase. Epigenetic methylation of cytosine residues in DNA is an essential element of genome maintenance and function in organisms ranging from bacteria to humans. DNA 5-cytosine methyltransferase enzymes (DCMTases) catalyze cytosine methylation via reaction intermediates in which the DNA is drastically remodeled, with the target cytosine residue extruded from the DNA helix and plunged into the active site pocket of the enzyme. We have determined a crystal structure of M.HaeIII DCMTase in complex with its DNA substrate at a previously unobserved state, prior to extrusion of the target cytosine and frameshifting of the DNA recognition sequence. The structure reveals that M.HaeIII selects the target cytosine and destabilizes its base-pairing through a precise, focused, and coordinated assault on the duplex DNA, which isolates the target cytosine from its nearest neighbors and thereby facilitates its extrusion from DNA.


  • Organizational Affiliation

    Department of Molecular and Cellular Biology, Harvard University, Cambridge, MA 02138, USA.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Modification methylase HaeIIIA [auth Y],
B [auth A],
C [auth B]
331Haemophilus aegyptiusMutation(s): 1
Gene Names: haeIIIM
EC: 2.1.1.37
UniProt
Find proteins for P20589 (Haemophilus aegyptius)
Explore P20589
Go to UniProtKB:  P20589
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20589
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains LengthOrganismImage
5'-D(*TP*GP*GP*CP*CP*A)-3'
D,
E,
F,
G,
H,
I [auth C]
6N/A
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP
Query on ATP

Download Ideal Coordinates CCD File
K [auth Y],
L [auth Y],
O [auth A]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
2PE
Query on 2PE

Download Ideal Coordinates CCD File
M [auth Y],
P [auth A],
R [auth B]
NONAETHYLENE GLYCOL
C18 H38 O10
YZUUTMGDONTGTN-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
J [auth Y],
N [auth A],
Q [auth B]
CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free: 0.221
  • R-Value Work: 0.182
  • R-Value Observed: 0.184
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 57.564α = 90
b = 129.588β = 90
c = 132.381γ = 90
Software Package:
Software NamePurpose
XSCALEdata scaling
PHENIXrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2012-10-03
    Type: Initial release
  • Version 1.1: 2012-12-19
    Changes: Database references
  • Version 1.2: 2014-10-08
    Changes: Refinement description
  • Version 1.3: 2024-02-28
    Changes: Data collection, Database references, Derived calculations
