3Q95 | pdb_00003q95

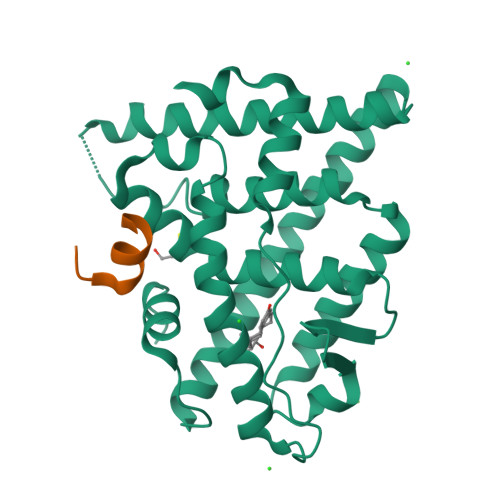

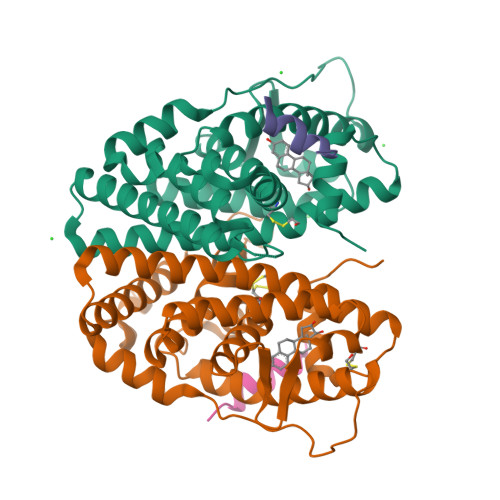

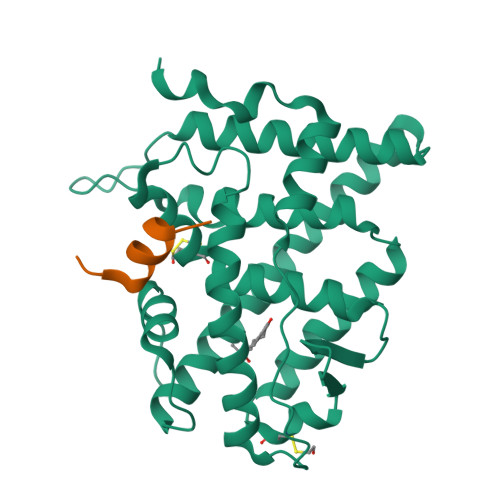

Crystal structure of human estrogen receptor alpha LBD in complex with GRIP peptide and estriol

PDB DOI: https://doi.org/10.2210/pdb3Q95/pdb

Classification: TRANSCRIPTION REGULATOR
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2011-01-07 Released: 2012-01-11
Deposition Author(s): Rajan, S.S., Kim, Y., Vanek, K., Joachimiak, A., Greene, G.L.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free:
0.241 (Depositor), 0.247 (DCC)
R-Value Work:
0.196 (Depositor), 0.202 (DCC)
R-Value Observed:
0.199 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.2 of the entry. See complete history.

Literature

Crystal structure of human estrogen receptor alpha LBD in complex with GRIP peptide and Estriol

Rajan, S.S., Kim, Y., Vanek, K., Joachimiak, A., Greene, G.L.

To be published.

Macromolecule Content

Total Structure Weight: 63.25 kDa
Atom Count: 4,389
Modeled Residue Count: 521
Deposited Residue Count: 546
Unique protein chains: 3

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Estrogen receptor	A	260	Homo sapiens	Mutation(s): 1 Gene Names: ER alpha, ESR, ESR1, NR3A1
UniProt & NIH Common Fund Data Resources
Find proteins for P03372 (Homo sapiens) Explore P03372 Go to UniProtKB: P03372
PHAROS: P03372 GTEx: ENSG00000091831
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P03372
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Estrogen receptor	B	260	Homo sapiens	Mutation(s): 1 Gene Names: ER alpha, ESR, ESR1, NR3A1
UniProt & NIH Common Fund Data Resources
Find proteins for P03372 (Homo sapiens) Explore P03372 Go to UniProtKB: P03372
PHAROS: P03372 GTEx: ENSG00000091831
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P03372
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Nuclear receptor coactivator 2	C, D	13	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q15596 (Homo sapiens) Explore Q15596 Go to UniProtKB: Q15596
PHAROS: Q15596 GTEx: ENSG00000140396
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q15596
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ESL Query on ESL Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain J [auth B] MOL2 format, chain E [auth A] MOL2 format, chain J [auth B] mmCIF format, chain E [auth A] mmCIF format, chain J [auth B]	E [auth A], J [auth B]	ESTRIOL C₁₈ H₂₄ O₃ PROQIPRRNZUXQM-ZXXIGWHRSA-N		Interactions Focus chain E [auth A] Focus chain J [auth B] Interactions & Density Focus chain E [auth A] Focus chain J [auth B]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A]	F [auth A], G [auth A], H [auth A], I [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
CME Query on CME	A	L-PEPTIDE LINKING	C₅ H₁₁ N O₃ S₂		CYS

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free: 0.241 (Depositor), 0.247 (DCC)
R-Value Work: 0.196 (Depositor), 0.202 (DCC)
R-Value Observed: 0.199 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 56.528	α = 90
b = 81.865	β = 111.13
c = 58.886	γ = 90

Software Package:

Software Name	Purpose
HKL-3000	data collection
PHASER	phasing
REFMAC	refinement
HKL-3000	data reduction
HKL-3000	data scaling

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

Deposition Data

Released Date: 2012-01-11

Deposition Author(s):

Revision History (Full details and data files)

Version 1.0: 2012-01-11
Type: Initial release
Version 1.1: 2023-09-13
Changes: Data collection, Database references, Derived calculations, Refinement description
Version 1.2: 2024-10-30
Changes: Structure summary
