3KA9 | pdb_00003ka9

Frog M-ferritin, EEH mutant, with cobalt

PDB DOI: https://doi.org/10.2210/pdb3KA9/pdb

Classification: OXIDOREDUCTASE
Organism(s): Aquarana catesbeiana
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2009-10-19 Released: 2010-10-06
Deposition Author(s): Tosha, T., Ng, H.L., Theil, E., Alber, T., Bhattasali, O.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.45 Å
R-Value Free:
0.165 (Depositor), 0.162 (DCC)
R-Value Work:
0.129 (Depositor), 0.130 (DCC)
R-Value Observed:
0.131 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

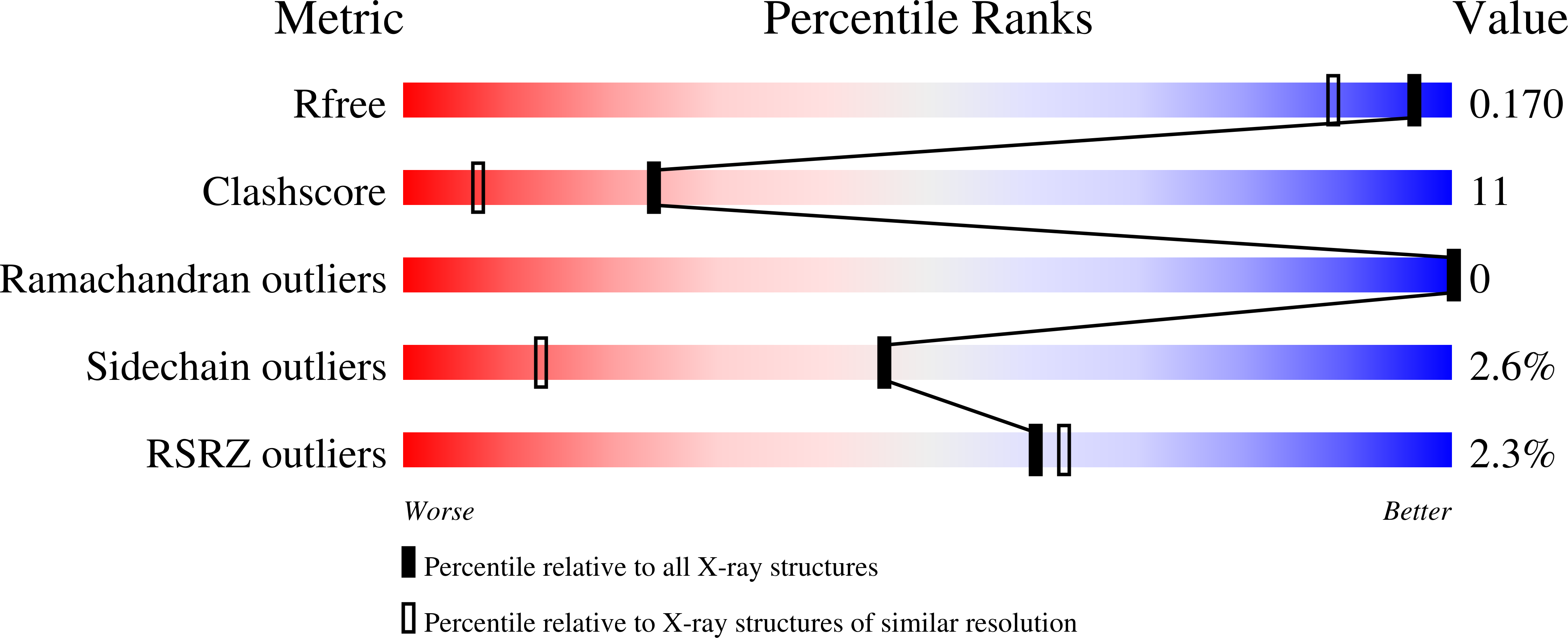

Validation slider image for 3KA9

This is version 1.3 of the entry. See complete history.

Literature

Frog M-ferritin, EEH mutant, with cobalt

Tosha, T., Ng, H.L., Theil, E., Alber, T., Bhattasali, O.

To be published.

Macromolecule Content

Total Structure Weight: 21.36 kDa
Atom Count: 1,806
Modeled Residue Count: 173
Deposited Residue Count: 176
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Ferritin, middle subunit	A	176	Aquarana catesbeiana	Mutation(s): 2 EC: 1.16.3.1
UniProt
Find proteins for P07798 (Aquarana catesbeiana) Explore P07798 Go to UniProtKB: P07798
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P07798
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CO Query on CO Download:Ideal Coordinates CCD File SDF format, chain B [auth A] SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] MOL2 format, chain B [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] mmCIF format, chain B [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A]	B [auth A] C [auth A] D [auth A] E [auth A] F [auth A] B [auth A], C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A]	COBALT (II) ION Co XLJKHNWPARRRJB-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Interactions & Density Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain Q [auth A] SDF format, chain R [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain R [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain R [auth A]	K [auth A], L [auth A], M [auth A], Q [auth A], R [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain Q [auth A] Focus chain R [auth A] Interactions & Density Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain Q [auth A] Focus chain R [auth A]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain P [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain P [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain P [auth A]	I [auth A], J [auth A], N [auth A], O [auth A], P [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain J [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Interactions & Density Focus chain I [auth A] Focus chain J [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.45 Å
R-Value Free: 0.165 (Depositor), 0.162 (DCC)
R-Value Work: 0.129 (Depositor), 0.130 (DCC)
R-Value Observed: 0.131 (Depositor)

Space Group: F 4 3 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 183.452	α = 90
b = 183.452	β = 90
c = 183.452	γ = 90

Software Package:

Software Name	Purpose
SCALA	data scaling
PHASER	phasing
REFMAC	refinement
PDB_EXTRACT	data extraction
ADSC	data collection
MOSFLM	data reduction

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

Deposition Data

Released Date: 2010-10-06

Deposition Author(s):

Revision History (Full details and data files)

Version 1.0: 2010-10-06
Type: Initial release
Version 1.1: 2011-07-13
Changes: Version format compliance
Version 1.2: 2021-10-13
Changes: Database references, Derived calculations
Version 1.3: 2023-09-06
Changes: Data collection, Refinement description
