34RH | pdb_000034rh

Trametes ljubarski GH12 endoglucanase bound to xyloglucan (XXXG)

PDB DOI: https://doi.org/10.2210/pdb34RH/pdb

Classification: HYDROLASE
Organism(s): Pilatotrama ljubarskyi
Expression System: Komagataella pastoris
Mutation(s): No

Deposited: 2026-09-28 Released: 2026-10-28
Deposition Author(s): Correa, T.L.R., McGregor, N.G.S., de Boer, C., Schroder, S.P., Foucart, Q., Moroz, O., Willems, L.I., Berrin, J.-G., Faure, R., Overkleeft, H.S., Davies, G.J.D.
Funding Organization(s): European Research Council (ERC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free:
0.239 (Depositor), 0.249 (DCC)
R-Value Work:
0.211 (Depositor), 0.219 (DCC)
R-Value Observed:
0.213 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 34RH

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Complementary chemical probes and substrates reveal split subsite specificity in a fungal GH12 glucanase

Correa, T.L.R., McGregor, N.G.S., de Boer, C., Schroder, S.P., Foucart, Q., Moroz, O., Willems, L.I., Berrin, J.-G., Faure, R., Overkleeft, H.S., Davies, G.J.

To be published.

Macromolecule Content

Total Structure Weight: 27.2 kDa
Atom Count: 1,896
Modeled Residue Count: 227
Deposited Residue Count: 235
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

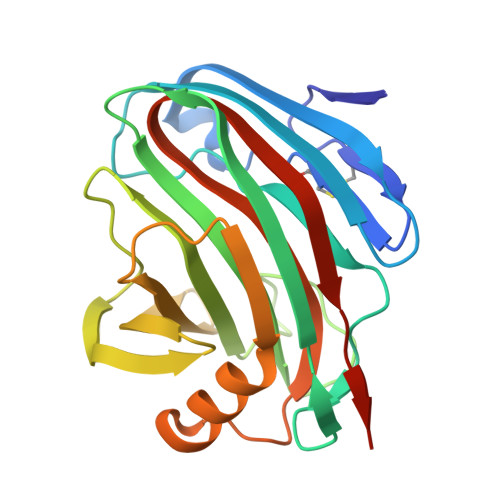

Molecule	Chains	Sequence Length	Organism	Details	Image
GH12 endoglucanase	A	235	Pilatotrama ljubarskyi	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain A
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-[alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-beta-D-glucopyranose	B	5		N/A	Interactions Focus chain B Interactions & Density Focus chain B

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	C	2		N-Glycosylation	Interactions Focus chain C Interactions & Density Focus chain C

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
XYS (Subject of Investigation/LOI) Query on XYS Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	alpha-D-xylopyranose C₅ H₁₀ O₅ SRBFZHDQGSBBOR-LECHCGJUSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free: 0.239 (Depositor), 0.249 (DCC)
R-Value Work: 0.211 (Depositor), 0.219 (DCC)
R-Value Observed: 0.213 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 101.95	α = 90
b = 149.41	β = 90
c = 50.38	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
xia2	data reduction
Aimless	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-28

Deposition Author(s):

McGregor, N.G.S.

Overkleeft, H.S.

Funding Organization	Location	Grant Number
European Research Council (ERC)	European Union	ERC-2020-SyG-951231

Revision History (Full details and data files)

Version 1.0: 2026-10-28
Type: Initial release
