32JA | pdb_000032ja

Structure of the pathogenic variant T186R of Human SHMT2 in the apo open dimeric conformation

PDB DOI: https://doi.org/10.2210/pdb32JA/pdb

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2026-07-10 Released: 2026-09-02
Deposition Author(s): Giardina, G., Boumis, G., Di Matteo, A., Breccia, S.
Funding Organization(s): European Commission

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.20 Å
R-Value Free:
0.232 (Depositor), 0.239 (DCC)
R-Value Work:
0.205 (Depositor), 0.213 (DCC)
R-Value Observed:
0.207 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 32JA

This is version 1.0 of the entry. See complete history.

Literature

Structural and functional defects of mitochondrial serine hydroxymethyltransferase genetic variants responsible for a novel neurodevelopmental syndrome

Giardina, G., Boumis, G., Di Matteo, A., Breccia, S.

To be published.

Macromolecule Content

Total Structure Weight: 53.87 kDa
Atom Count: 3,282
Modeled Residue Count: 424
Deposited Residue Count: 486
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

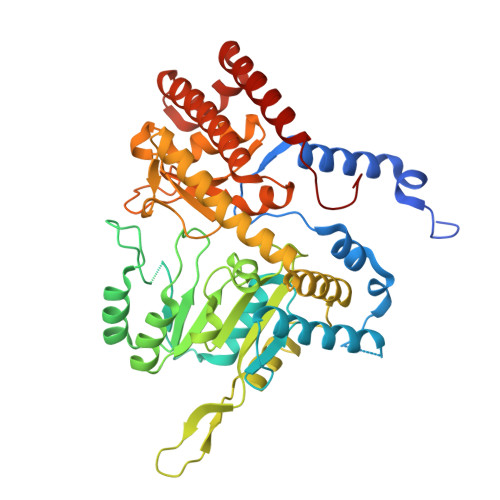

Isoform 3 of Serine hydroxymethyltransferase, mitochondrial	A	486	Homo sapiens	Mutation(s): 1 Gene Names: SHMT2 EC: 2.1.2.1
UniProt & NIH Common Fund Data Resources
Find proteins for P34897 (Homo sapiens) Go to UniProtKB: P34897
PHAROS: P34897 GTEx: ENSG00000182199
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P34897-3
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.20 Å
R-Value Free: 0.232 (Depositor), 0.239 (DCC)
R-Value Work: 0.205 (Depositor), 0.213 (DCC)
R-Value Observed: 0.207 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 94.532	α = 90
b = 74.469	β = 108.53
c = 75.002	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
XDS	data reduction
MOLREP	phasing
PDB_EXTRACT	data extraction

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-02

Deposition Author(s):

Funding Organization	Location	Grant Number
European Commission	European Union	20205534

Revision History (Full details and data files)

Version 1.0: 2026-09-02
Type: Initial release
