30QN | pdb_000030qn

Cryo-EM Structure of Native Monomeric Quinol-Dependent Nitric Oxide Reductase from Achromobacter xylosoxidans.

PDB DOI: https://doi.org/10.2210/pdb30QN/pdb
EM Map EMD-57960: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Achromobacter xylosoxidans
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2026-05-08 Released: 2026-08-26
Deposition Author(s): Khaja, F., Antonyuk, S.V., Muench, S.P., Hasnain, S.S.
Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 30QN

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM Structure of Native Monomeric Quinol-Dependent Nitric Oxide Reductase from Achromobacter xylosoxidans.

Khaja, F., Antonyuk, S.V., Muench, S.P., Hasnain, S.S.

To be published.

Macromolecule Content

Total Structure Weight: 86.12 kDa
Atom Count: 6,004
Modeled Residue Count: 750
Deposited Residue Count: 761
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

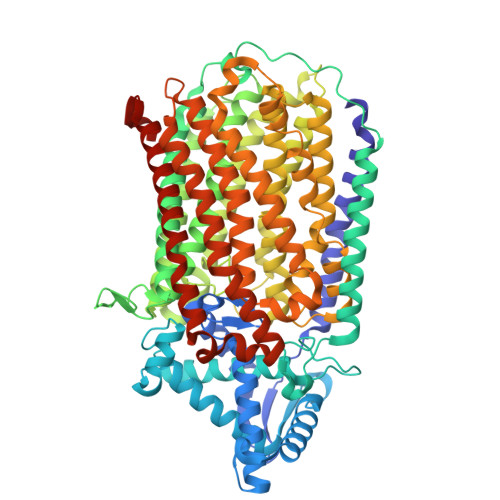

Nitric oxide reductase subunit B	A	761	Achromobacter xylosoxidans	Mutation(s): 0 Gene Names: norB_1, ERS451415_02175, IUJ48_17015 EC: 1.7.2.5
UniProt
Find proteins for A0ABF7PH53 (Alcaligenes xylosoxydans xylosoxydans) Explore A0ABF7PH53 Go to UniProtKB: A0ABF7PH53
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0ABF7PH53
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
HEM (Subject of Investigation/LOI) Query on HEM Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A]	C [auth A], D [auth A]	PROTOPORPHYRIN IX CONTAINING FE C₃₄ H₃₂ Fe N₄ O₄ KABFMIBPWCXCRK-RGGAHWMASA-L		Interactions Focus chain C [auth A] Focus chain D [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A]
CU Query on CU Download:Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	COPPER (II) ION Cu JPVYNHNXODAKFH-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]
FE Query on FE Download:Ideal Coordinates CCD File SDF format, chain F [auth A] MOL2 format, chain F [auth A] mmCIF format, chain F [auth A]	F [auth A]	FE (III) ION Fe VTLYFUHAOXGGBS-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Interactions & Density Focus chain F [auth A]
CA Query on CA Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.1_5286
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-26

Deposition Author(s):

Funding Organization	Location	Grant Number
Biotechnology and Biological Sciences Research Council (BBSRC)	United Kingdom	BB/X015491/1

Revision History (Full details and data files)

Version 1.0: 2026-08-26
Type: Initial release
