2PSJ

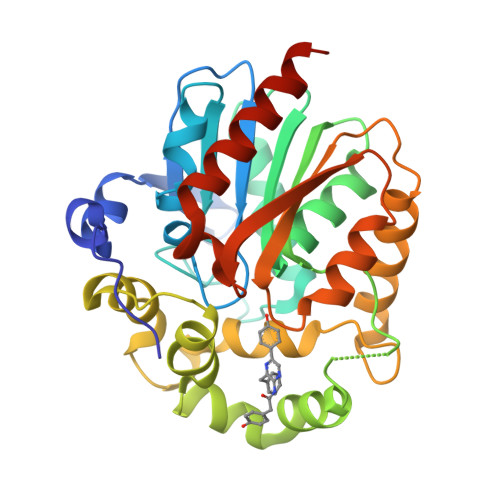

Crystal Structures of the Luciferase and Green Fluorescent Protein from Renilla Reniformis


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.216
  • R-Value Work: 0.188
  • R-Value Observed: 0.189

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history


Literature

Crystal Structures of the Luciferase and Green Fluorescent Protein from Renilla reniformis.

Loening, A.M.Fenn, T.D.Gambhir, S.S.

(2007) J Mol Biol 374: 1017-1028

  • DOI: https://doi.org/10.1016/j.jmb.2007.09.078
  • Primary Citation of Related Structures:
    2PSD, 2PSE, 2PSF, 2PSH, 2PSJ, 2RH7

  • PubMed Abstract:

    Due to its ability to emit light, the luciferase from Renilla reniformis (RLuc) is widely employed in molecular biology as a reporter gene in cell culture experiments and small animal imaging. To accomplish this bioluminescence, the 37-kDa enzyme catalyzes the degradation of its substrate coelenterazine in the presence of molecular oxygen, resulting in the product coelenteramide, carbon dioxide, and the desired photon of light. We successfully crystallized a stabilized variant of this important protein (RLuc8) and herein present the first structures for any coelenterazine-using luciferase. These structures are based on high-resolution data measured to 1.4 A and demonstrate a classic alpha/beta-hydrolase fold. We also present data of a coelenteramide-bound luciferase and reason that this structure represents a secondary conformational form following shift of the product out of the primary active site. During the course of this work, the structure of the luciferase's accessory green fluorescent protein (RrGFP) was also determined and shown to be highly similar to that of Aequorea victoria GFP.


  • Organizational Affiliation

    Molecular Imaging Program at Stanford, Department of Radiology and Bio-X Program, The James H. Clark Center, Stanford University School of Medicine, 318 Campus Drive, Clark E150, Stanford, CA 94305-5427, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Renilla-luciferin 2-monooxygenase
A, B
319Renilla reniformisMutation(s): 9
Gene Names: rluc
EC: 1.13.12.5
UniProt
Find proteins for P27652 (Renilla reniformis)
Explore P27652
Go to UniProtKB:  P27652
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP27652
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CEI
Query on CEI

Download Ideal Coordinates CCD File
C [auth A],
D [auth B]
N-[3-BENZYL-5-(4-HYDROXYPHENYL)PYRAZIN-2-YL]-2-(4-HYDROXYPHENYL)ACETAMIDE
C25 H21 N3 O3
CJIIERPDFZUYPI-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
CEI PDBBind:  2PSJ Ki: 20 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.216
  • R-Value Work: 0.188
  • R-Value Observed: 0.189
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 51.329α = 90
b = 74.473β = 103.45
c = 89.249γ = 90
Software Package:
Software NamePurpose
REFMACrefinement

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2007-06-05
    Type: Initial release
  • Version 1.1: 2007-11-19
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Advisory, Version format compliance
  • Version 1.3: 2021-10-20
    Changes: Database references, Derived calculations
  • Version 1.4: 2024-02-21
    Changes: Data collection, Refinement description
