2GN4 | pdb_00002gn4

Crystal structure of UDP-GlcNAc inverting 4,6-dehydratase in complex with NADPH and UDP-GlcNAc


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:
    0.229 (Depositor), 0.232 (DCC)
  • R-Value Work:
    0.197 (Depositor), 0.200 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 2GN4

Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history

Literature

Structural Studies of FlaA1 from Helicobacter pylori Reveal the Mechanism for Inverting 4,6-Dehydratase Activity.

Ishiyama, N.Creuzenet, C.Miller, W.L.Demendi, M.Anderson, E.M.Harauz, G.Lam, J.S.Berghuis, A.M.

(2006) J Biological Chem 281: 24489-24495

  • DOI: https://doi.org/10.1074/jbc.M602393200
  • Primary Citation Related Structures:
    2GN4, 2GN6, 2GN8, 2GN9, 2GNA

  • PubMed Abstract:

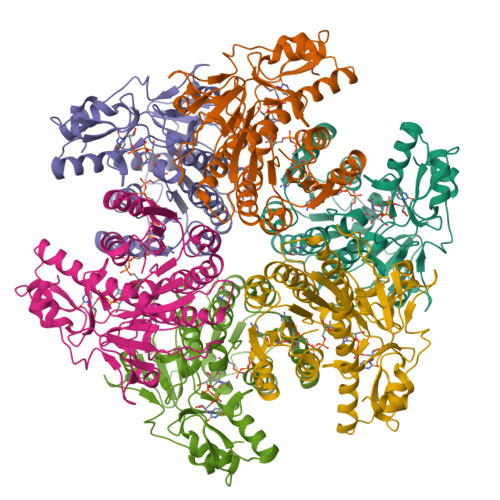

    FlaA1 from the human pathogen Helicobacter pylori is an enzyme involved in saccharide biosynthesis that has been shown to be essential for pathogenicity. Here we present five crystal structures of FlaA1 in the presence of substrate, inhibitors, and bound cofactor, with resolutions ranging from 2.8 to 1.9 A. These structures reveal that the enzyme is a novel member of the short-chain dehydrogenase/reductase superfamily. Additional electron microscopy studies show the enzyme to possess a hexameric doughnut-shaped quaternary structure. NMR analyses of "real time" enzyme-substrate reactions indicate that FlaA1 is a UDP-GlcNAc-inverting 4,6-dehydratase, suggesting that the enzyme catalyzes the first step in the biosynthetic pathway of a pseudaminic acid derivative, which is implicated in protein glycosylation. Guided by evidence from site-directed mutagenesis and computational simulations, a three-step reaction mechanism is proposed that involves Lys-133 functioning as both a catalytic acid and base.


  • Organizational Affiliation
    • Department of Biochemistry and Department of Microbiology and Immunology, McGill University, Montreal, Quebec.

Macromolecule Content

  • Total Structure Weight: 80.55 kDa
  • Atom Count: 5,719
  • Modeled Residue Count: 656
  • Deposited Residue Count: 688
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
UDP-GlcNAc C6 dehydratase
A, B
344Helicobacter pyloriMutation(s): 0
Gene Names: HP0840
EC: 4.2.1 (PDB Primary Data), 4.2.1.115 (UniProt)
UniProt
Find proteins for O25511 (Helicobacter pylori (strain ATCC 700392 / 26695))
Explore O25511
Go to UniProtKB:  O25511
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO25511
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NDP

Query on NDP



Download:Ideal Coordinates CCD File
C [auth A],
E [auth B]
NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
C21 H30 N7 O17 P3
ACFIXJIJDZMPPO-NNYOXOHSSA-N
UD1

Query on UD1



Download:Ideal Coordinates CCD File
D [auth A],
F [auth B]
URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE
C17 H27 N3 O17 P2
LFTYTUAZOPRMMI-CFRASDGPSA-N
MES

Query on MES



Download:Ideal Coordinates CCD File
G [auth B],
H [auth B]
2-(N-MORPHOLINO)-ETHANESULFONIC ACID
C6 H13 N O4 S
SXGZJKUKBWWHRA-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:  0.229 (Depositor), 0.232 (DCC)
  • R-Value Work:  0.197 (Depositor), 0.200 (DCC)
Space Group: P 63
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 111.357α = 90
b = 111.357β = 90
c = 107.991γ = 120
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
CNSrefinement
PDB_EXTRACTdata extraction
ADSCdata collection
HKL-2000data scaling
CNSphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2006-05-09
    Type: Initial release
  • Version 1.1: 2008-05-01
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2017-10-18
    Changes: Refinement description
  • Version 1.4: 2023-08-30
    Changes: Data collection, Database references, Derived calculations, Refinement description
