29KL | pdb_000029kl

Crystal structure of Human Catenin Beta-1 in complex with cyclic beta sheet peptide inhibitor

PDB DOI: https://doi.org/10.2210/pdb29KL/pdb

Classification: SIGNALING PROTEIN
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2026-03-18 Released: 2026-09-23
Deposition Author(s): Klintrot, C.I.R., Steiner, F.J., Grossmann, T.N., Hennig, S.
Funding Organization(s): European Research Council (ERC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.09 Å
R-Value Free:
0.217 (Depositor), 0.226 (DCC)
R-Value Work:
0.188 (Depositor), 0.197 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

To be decided please

Klintrot, C.I.R., Hennig, S., Grossmann, T.N.

To be published.

Macromolecule Content

Total Structure Weight: 58.31 kDa
Atom Count: 4,230
Modeled Residue Count: 522
Deposited Residue Count: 522
Unique protein chains: 2

Macromolecules

Find similar proteins by:

| 3D Structure

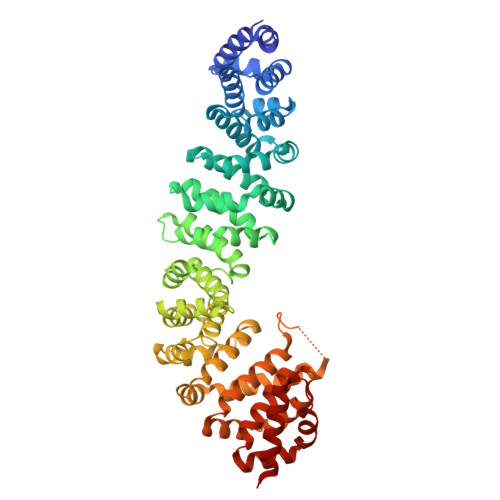

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Catenin beta-1	A	506	Homo sapiens	Mutation(s): 0 Gene Names: CTNNB1, CTNNB, OK/SW-cl.35, PRO2286
UniProt & NIH Common Fund Data Resources
Find proteins for P35222 (Homo sapiens) Explore P35222 Go to UniProtKB: P35222
PHAROS: P35222 GTEx: ENSG00000168036
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P35222
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

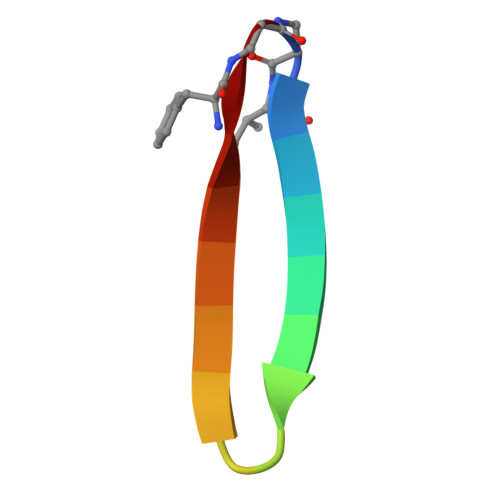

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
cyclic kilo N4V	B	16	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GLC Query on GLC Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], I [auth A]	alpha-D-glucopyranose C₆ H₁₂ O₆ WQZGKKKJIJFFOK-DVKNGEFBSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain J [auth A] MOL2 format, chain J [auth A] mmCIF format, chain J [auth A]	J [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain J [auth A] Interactions & Density Focus chain J [auth A]
NA Query on NA Download:Ideal Coordinates CCD File SDF format, chain K [auth A] MOL2 format, chain K [auth A] mmCIF format, chain K [auth A]	K [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Interactions & Density Focus chain K [auth A]
