 29IW | pdb_000029iw

Human monosomes with bound toxin NT-2, focus on 60S subunit. Cells treated with NT-2.

  • Classification: RIBOSOME
  • Organism(s): Homo sapiens
  • Mutation(s): No

  • Deposited: 2026-03-15 Released: 2026-09-30
  • Deposition Author(s): Rabl, J., Karousis, E.D.
  • Funding Organization(s): Swiss National Science Foundation

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 1.77 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 29IW

This is version 1.1 of the entry. See complete history.

Literature

A human cell-free translation screen identifies the NT-2 mycotoxin as a ribosomal inhibitor that binds the peptidyl transferase center.

Schwaller, N., Andenmatten, D., Luginbuhl, J., Rabl, J., Baur, H., Chambon, M., Vesin, J., Turcatti, G., Karousis, E.D.

(2026) Commun Biol 9

  • DOI: https://doi.org/10.1038/s42003-026-10743-6
  • Primary Citation Related Structures:
    29IW, 29IX, 29IY, 29IZ

  • PubMed Abstract:

    Translation inhibitors are invaluable for probing ribosome function and therapeutic applications, but systematic discovery in human systems is limited by the lack of scalable, screening-compatible cell-free platforms. Here, we establish a robust high-throughput screening using human lysates that bypasses cellular cytotoxic effects. After screening ~28,000 small molecules, we identified known and a novel translation inhibitor, including NT-2, a trichothecene mycotoxin produced by the pathogenic Fusarium sporotrichioides. NT-2 suppressed protein synthesis in human cells and yeast lysates, while sparing translation in bacteria and intact yeast cells. Cryo-EM at 1.76 Å revealed NT-2 bound at the peptidyl transferase center of the human 60S ribosome. In addition, cryoEM classification of NT-2 treated cells shows ribosomes in an inactive eEF2/SERBP1-bound dormant state. Together, these results expose NT-2 as a previously unrecognized environmental inhibitor of mammalian protein synthesis and demonstrate the power of cell-free translation screening to reveal new inhibitors with unexpected ribosome fates.


  • Organizational Affiliation:
    • Department of Chemistry, Biochemistry and Pharmaceutical Sciences, University of Bern, Bern, Switzerland.

Macromolecule Content

  • Total Structure Weight: 2,563.79 kDa
  • Atom Count: 143,501
  • Modeled Residue Count: 10,126
  • Deposited Residue Count: 12,533
  • Unique protein chains: 41
  • Unique nucleic acid chains: 3

Macromolecules


Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

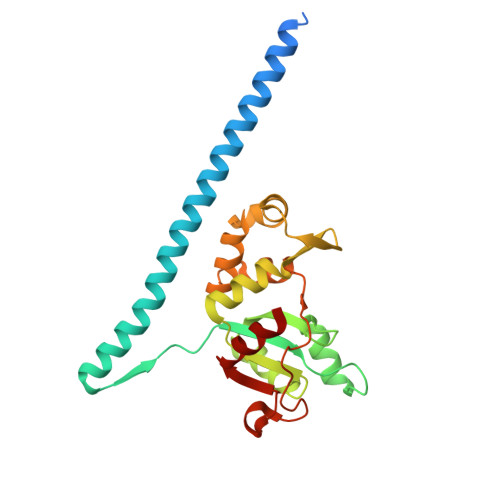

Large ribosomal subunit protein uL30A [auth AA]248Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P18124 (Homo sapiens)
Explore P18124
Go to UniProtKB:  P18124
PHAROS:  P18124
GTEx:  ENSG00000147604
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18124
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

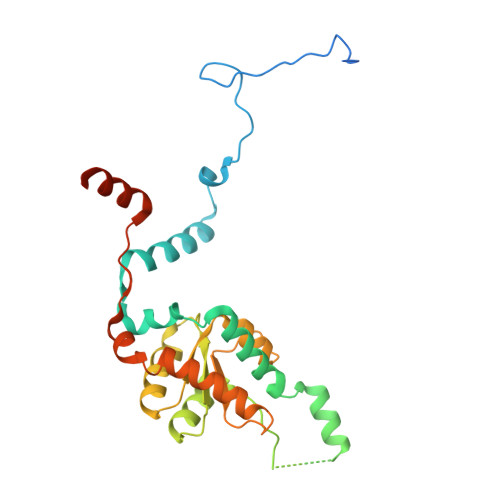

60S ribosomal protein L7aB [auth AB]266Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62424 (Homo sapiens)
Explore P62424
Go to UniProtKB:  P62424
PHAROS:  P62424
GTEx:  ENSG00000148303
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62424
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

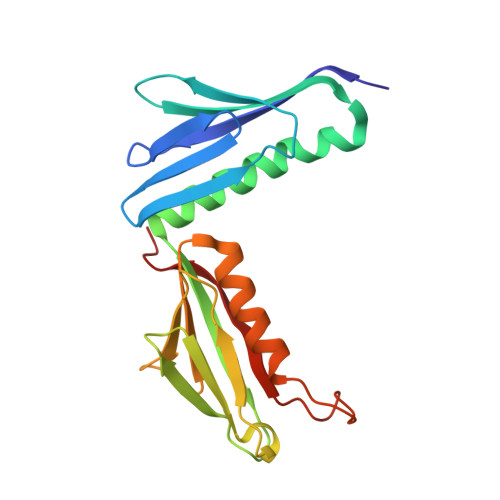

60S ribosomal protein L9C [auth AC]192Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P32969 (Homo sapiens)
Explore P32969
Go to UniProtKB:  P32969
PHAROS:  P32969
GTEx:  ENSG00000163682
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32969
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

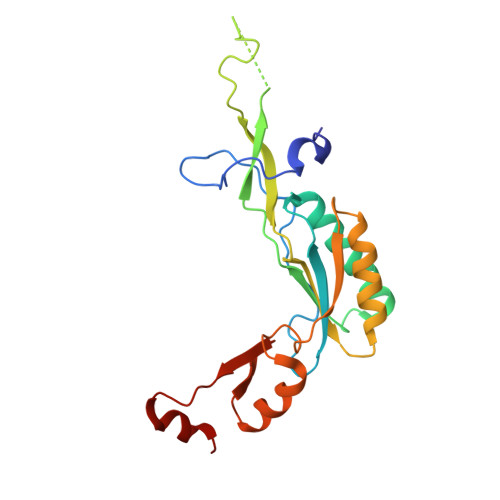

Ribosomal protein uL16-likeD [auth AD]214Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96L21 (Homo sapiens)
Explore Q96L21
Go to UniProtKB:  Q96L21
PHAROS:  Q96L21
GTEx:  ENSG00000165496
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96L21
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L11E [auth AE]178Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62913 (Homo sapiens)
Explore P62913
Go to UniProtKB:  P62913
PHAROS:  P62913
GTEx:  ENSG00000142676
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62913
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

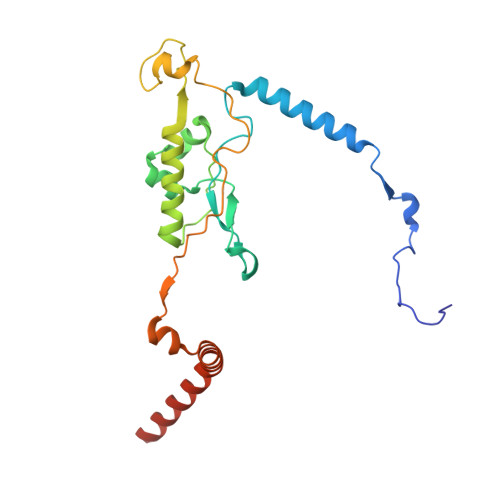

60S ribosomal protein L13F [auth AF]211Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P26373 (Homo sapiens)
Explore P26373
Go to UniProtKB:  P26373
PHAROS:  P26373
GTEx:  ENSG00000167526
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP26373
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

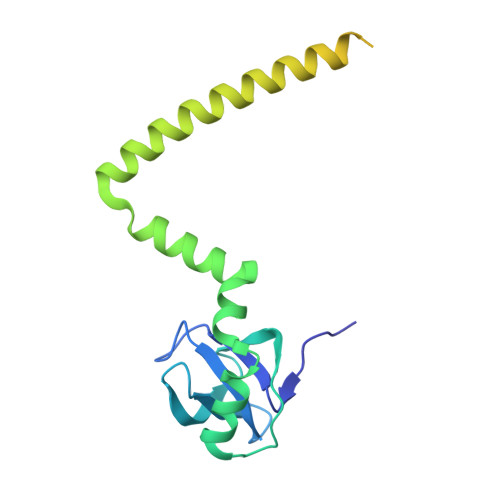

60S ribosomal protein L14G [auth AG]215Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P50914 (Homo sapiens)
Explore P50914
Go to UniProtKB:  P50914
PHAROS:  P50914
GTEx:  ENSG00000188846
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP50914
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

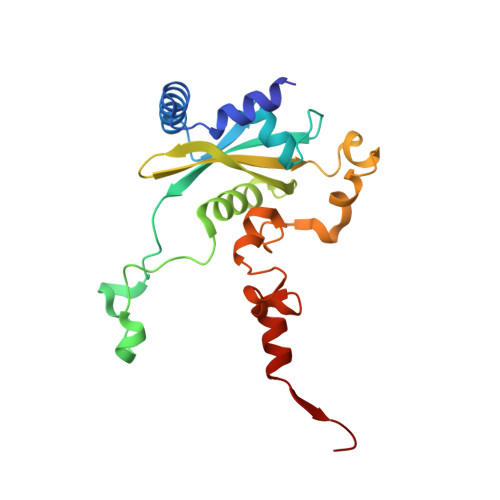

60S ribosomal protein L15H [auth AH]204Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61313 (Homo sapiens)
Explore P61313
Go to UniProtKB:  P61313
PHAROS:  P61313
GTEx:  ENSG00000174748
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61313
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage

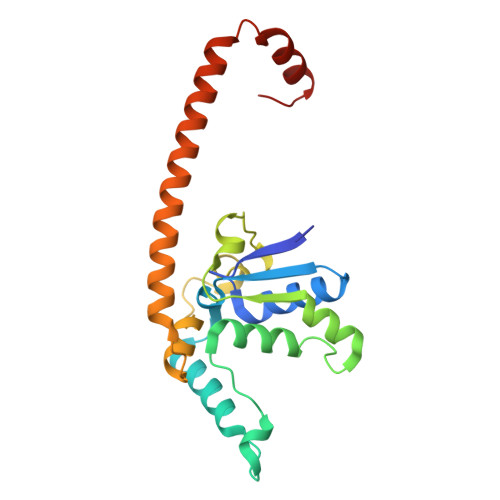

60S ribosomal protein L13aI [auth AI]203Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P40429 (Homo sapiens)
Explore P40429
Go to UniProtKB:  P40429
PHAROS:  P40429
GTEx:  ENSG00000142541
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40429
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage

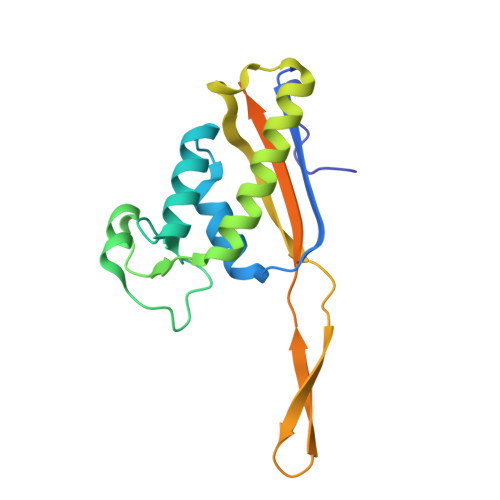

60S ribosomal protein L17J [auth AJ]184Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P18621 (Homo sapiens)
Explore P18621
Go to UniProtKB:  P18621
PHAROS:  P18621
GTEx:  ENSG00000265681
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18621
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage

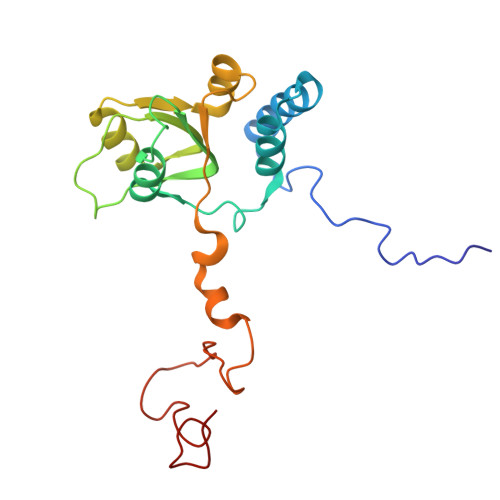

60S ribosomal protein L18K [auth AK]188Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q07020 (Homo sapiens)
Explore Q07020
Go to UniProtKB:  Q07020
PHAROS:  Q07020
GTEx:  ENSG00000063177
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ07020
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage

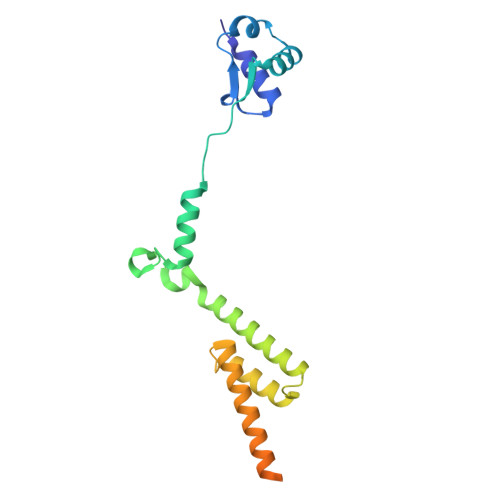

60S ribosomal protein L19L [auth AL]196Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P84098 (Homo sapiens)
Explore P84098
Go to UniProtKB:  P84098
PHAROS:  P84098
GTEx:  ENSG00000108298
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP84098
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L18aM [auth AM]176Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q02543 (Homo sapiens)
Explore Q02543
Go to UniProtKB:  Q02543
GTEx:  ENSG00000105640
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ02543
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage

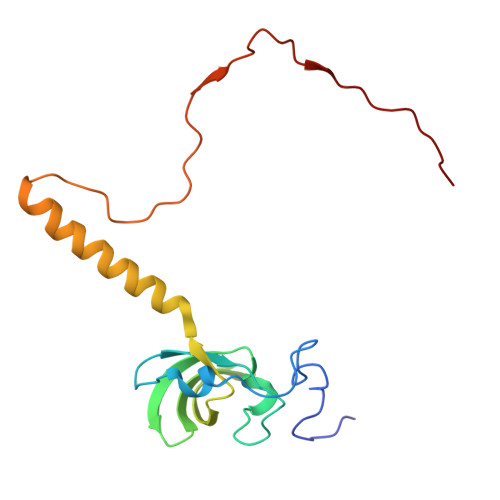

60S ribosomal protein L21N [auth AN]160Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P46778 (Homo sapiens)
Explore P46778
Go to UniProtKB:  P46778
PHAROS:  P46778
GTEx:  ENSG00000122026
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP46778
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage

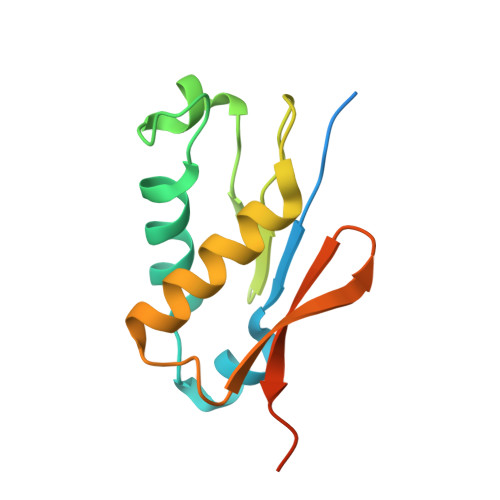

60S ribosomal protein L22O [auth AO]128Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P35268 (Homo sapiens)
Explore P35268
Go to UniProtKB:  P35268
PHAROS:  P35268
GTEx:  ENSG00000116251
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP35268
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 16
MoleculeChains  Sequence LengthOrganismDetailsImage

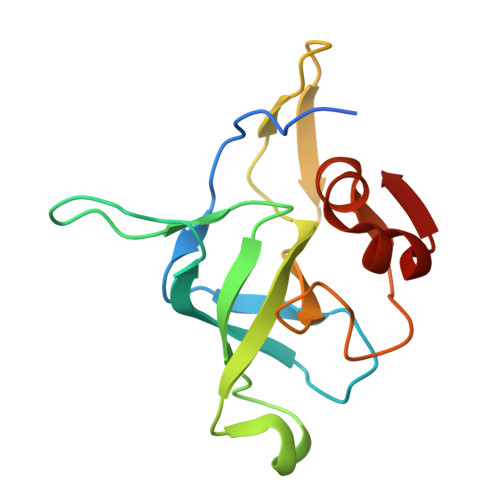

60S ribosomal protein L23P [auth AP]140Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62829 (Homo sapiens)
Explore P62829
Go to UniProtKB:  P62829
PHAROS:  P62829
GTEx:  ENSG00000125691
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62829
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 17
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L24Q [auth AQ]157Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P83731 (Homo sapiens)
Explore P83731
Go to UniProtKB:  P83731
PHAROS:  P83731
GTEx:  ENSG00000114391
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP83731
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 18
MoleculeChains  Sequence LengthOrganismDetailsImage

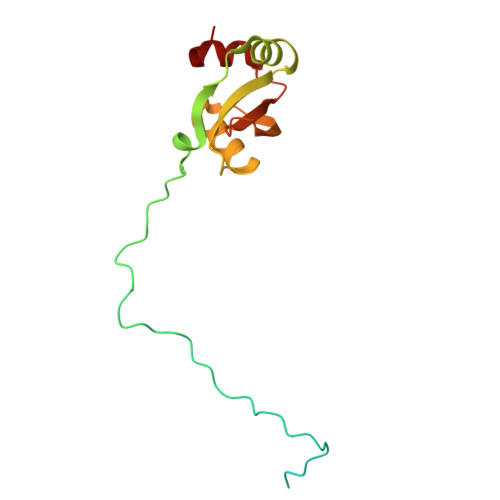

60S ribosomal protein L23aR [auth AR]156Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62750 (Homo sapiens)
Explore P62750
Go to UniProtKB:  P62750
PHAROS:  P62750
GTEx:  ENSG00000198242
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62750
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 19
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L26S [auth AS]145Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61254 (Homo sapiens)
Explore P61254
Go to UniProtKB:  P61254
PHAROS:  P61254
GTEx:  ENSG00000161970
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61254
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 20
MoleculeChains  Sequence LengthOrganismDetailsImage

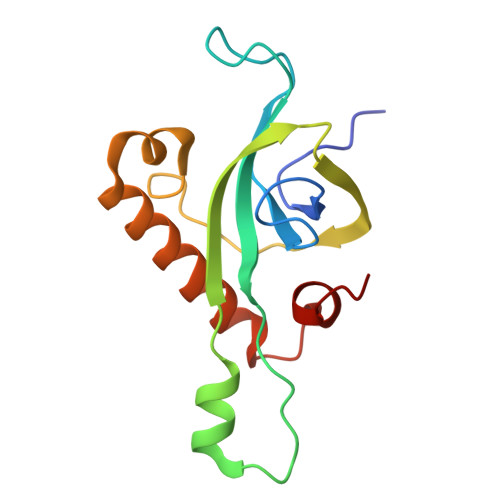

60S ribosomal protein L27T [auth AT]136Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61353 (Homo sapiens)
Explore P61353
Go to UniProtKB:  P61353
PHAROS:  P61353
GTEx:  ENSG00000131469
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61353
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 21
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL15U [auth AU]148Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P46776 (Homo sapiens)
Explore P46776
Go to UniProtKB:  P46776
PHAROS:  P46776
GTEx:  ENSG00000166441
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP46776
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 22
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L29V [auth AV]159Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P47914 (Homo sapiens)
Explore P47914
Go to UniProtKB:  P47914
GTEx:  ENSG00000162244
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP47914
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 23
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L30W [auth AW]115Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62888 (Homo sapiens)
Explore P62888
Go to UniProtKB:  P62888
PHAROS:  P62888
GTEx:  ENSG00000156482
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62888
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 24
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L31X [auth AX]125Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62899 (Homo sapiens)
Explore P62899
Go to UniProtKB:  P62899
PHAROS:  P62899
GTEx:  ENSG00000071082
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62899
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 25
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L32Y [auth AY]135Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62910 (Homo sapiens)
Explore P62910
Go to UniProtKB:  P62910
PHAROS:  P62910
GTEx:  ENSG00000144713
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62910
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 26
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein eL33Z [auth AZ]110Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P18077 (Homo sapiens)
Explore P18077
Go to UniProtKB:  P18077
PHAROS:  P18077
GTEx:  ENSG00000182899
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18077
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 27
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L34AA [auth Aa]117Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P49207 (Homo sapiens)
Explore P49207
Go to UniProtKB:  P49207
PHAROS:  P49207
GTEx:  ENSG00000109475
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49207
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 28
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L35BA [auth Ab]123Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P42766 (Homo sapiens)
Explore P42766
Go to UniProtKB:  P42766
PHAROS:  P42766
GTEx:  ENSG00000136942
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP42766
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 29
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L36CA [auth Ac]105Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y3U8 (Homo sapiens)
Explore Q9Y3U8
Go to UniProtKB:  Q9Y3U8
PHAROS:  Q9Y3U8
GTEx:  ENSG00000130255
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y3U8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 30
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein eL37DA [auth Ad]97Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61927 (Homo sapiens)
Explore P61927
Go to UniProtKB:  P61927
PHAROS:  P61927
GTEx:  ENSG00000145592
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61927
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 31
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L38EA [auth Ae]70Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P63173 (Homo sapiens)
Explore P63173
Go to UniProtKB:  P63173
PHAROS:  P63173
GTEx:  ENSG00000172809
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63173
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 32
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L39FA [auth Af]51Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62891 (Homo sapiens)
Explore P62891
Go to UniProtKB:  P62891
GTEx:  ENSG00000198918
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62891
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 33
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein eL40GA [auth Ag]128Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62987 (Homo sapiens)
Explore P62987
Go to UniProtKB:  P62987
PHAROS:  P62987
GTEx:  ENSG00000221983
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62987
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 34
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L36aHA [auth Ah]106Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P83881 (Homo sapiens)
Explore P83881
Go to UniProtKB:  P83881
PHAROS:  P83881
GTEx:  ENSG00000241343
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP83881
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 35
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L37aIA [auth Ai]92Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61513 (Homo sapiens)
Explore P61513
Go to UniProtKB:  P61513
PHAROS:  P61513
GTEx:  ENSG00000197756
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61513
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 36
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L28JA [auth Aj]137Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P46779 (Homo sapiens)
Explore P46779
Go to UniProtKB:  P46779
PHAROS:  P46779
GTEx:  ENSG00000108107
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP46779
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 37
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL3KA [auth BA]403Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P39023 (Homo sapiens)
Explore P39023
Go to UniProtKB:  P39023
PHAROS:  P39023
GTEx:  ENSG00000100316
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP39023
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 38
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L4LA [auth BB]427Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P36578 (Homo sapiens)
Explore P36578
Go to UniProtKB:  P36578
PHAROS:  P36578
GTEx:  ENSG00000174444
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP36578
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 39
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L5MA [auth BC]297Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P46777 (Homo sapiens)
Explore P46777
Go to UniProtKB:  P46777
PHAROS:  P46777
GTEx:  ENSG00000122406
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP46777
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 40
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein eL6NA [auth BD]288Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q02878 (Homo sapiens)
Explore Q02878
Go to UniProtKB:  Q02878
PHAROS:  Q02878
GTEx:  ENSG00000089009
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ02878
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 44
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL2RA [auth DD]257Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62917 (Homo sapiens)
Explore P62917
Go to UniProtKB:  P62917
GTEx:  ENSG00000161016
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62917
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 41
MoleculeChains LengthOrganismImage
28S rRNAOA [auth DA]5,069Homo sapiens
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 42
MoleculeChains LengthOrganismImage
5S rRNAPA [auth DB]120Homo sapiens
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 43
MoleculeChains LengthOrganismImage

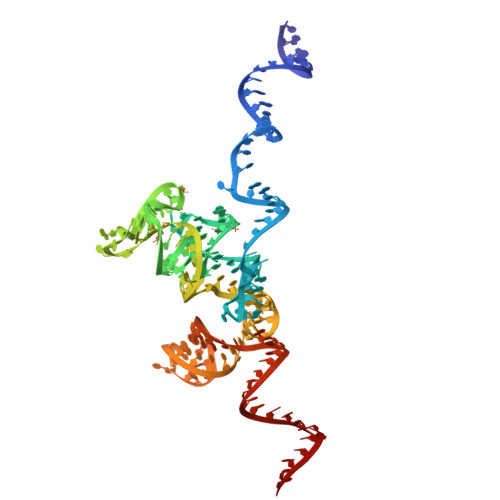

5.8S rRNAQA [auth DC]157Homo sapiens
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 7 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP

Query on ATP



Download:Ideal Coordinates CCD File
QB [auth DA]ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
A1JQ4
(Subject of Investigation/LOI)

Query on A1JQ4



Download:Ideal Coordinates CCD File
TJ [auth DA]Toxin NT-2
C17 H24 O7
CSYVMZMEBKUDRQ-BNWDXEGFSA-N
SPD

Query on SPD



Download:Ideal Coordinates CCD File
KB [auth DA]
LB [auth DA]
MB [auth DA]
NB [auth DA]
OB [auth DA]
KB [auth DA],
LB [auth DA],
MB [auth DA],
NB [auth DA],
OB [auth DA],
PB [auth DA]
SPERMIDINE
C7 H19 N3
ATHGHQPFGPMSJY-UHFFFAOYSA-N
PUT

Query on PUT



Download:Ideal Coordinates CCD File
GB [auth DA],
HB [auth DA],
IB [auth DA],
JB [auth DA],
UJ [auth DB]
1,4-DIAMINOBUTANE
C4 H12 N2
KIDHWZJUCRJVML-UHFFFAOYSA-N
ZN

Query on ZN



Download:Ideal Coordinates CCD File
AB [auth Ad],
CB [auth Ag],
DB [auth Ah],
EB [auth Ai],
ZA [auth Aa]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
K

Query on K



Download:Ideal Coordinates CCD File
AC [auth DA]
AD [auth DA]
BC [auth DA]
BD [auth DA]
BK [auth DD]
AC [auth DA],
AD [auth DA],
BC [auth DA],
BD [auth DA],
BK [auth DD],
CC [auth DA],
CD [auth DA],
CK [auth DD],
DC [auth DA],
DD [auth DA],
EC [auth DA],
ED [auth DA],
FC [auth DA],
FD [auth DA],
GC [auth DA],
HC [auth DA],
IC [auth DA],
JC [auth DA],
KC [auth DA],
LC [auth DA],
MC [auth DA],
NC [auth DA],
OC [auth DA],
PC [auth DA],
QC [auth DA],
RB [auth DA],
RC [auth DA],
SB [auth DA],
SC [auth DA],
TB [auth DA],
TC [auth DA],
UA [auth AM],
UB [auth DA],
UC [auth DA],
VA [auth AN],
VB [auth DA],
VC [auth DA],
WB [auth DA],
WC [auth DA],
XB [auth DA],
XC [auth DA],
XJ [auth DC],
YB [auth DA],
YC [auth DA],
ZB [auth DA],
ZC [auth DA]
POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
MG

Query on MG



Download:Ideal Coordinates CCD File
AE [auth DA]
AF [auth DA]
AG [auth DA]
AH [auth DA]
AI [auth DA]
AE [auth DA],
AF [auth DA],
AG [auth DA],
AH [auth DA],
AI [auth DA],
AJ [auth DA],
AK [auth DC],
BB [auth Ad],
BE [auth DA],
BF [auth DA],
BG [auth DA],
BH [auth DA],
BI [auth DA],
BJ [auth DA],
CE [auth DA],
CF [auth DA],
CG [auth DA],
CH [auth DA],
CI [auth DA],
CJ [auth DA],
DE [auth DA],
DF [auth DA],
DG [auth DA],
DH [auth DA],
DI [auth DA],
DJ [auth DA],
EE [auth DA],
EF [auth DA],
EG [auth DA],
EH [auth DA],
EI [auth DA],
EJ [auth DA],
FB [auth BA],
FE [auth DA],
FF [auth DA],
FG [auth DA],
FH [auth DA],
FI [auth DA],
FJ [auth DA],
GD [auth DA],
GE [auth DA],
GF [auth DA],
GG [auth DA],
GH [auth DA],
GI [auth DA],
GJ [auth DA],
HD [auth DA],
HE [auth DA],
HF [auth DA],
HG [auth DA],
HH [auth DA],
HI [auth DA],
HJ [auth DA],
ID [auth DA],
IE [auth DA],
IF [auth DA],
IG [auth DA],
IH [auth DA],
II [auth DA],
IJ [auth DA],
JD [auth DA],
JE [auth DA],
JF [auth DA],
JG [auth DA],
JH [auth DA],
JI [auth DA],
JJ [auth DA],
KD [auth DA],
KE [auth DA],
KF [auth DA],
KG [auth DA],
KH [auth DA],
KI [auth DA],
KJ [auth DA],
LD [auth DA],
LE [auth DA],
LF [auth DA],
LG [auth DA],
LH [auth DA],
LI [auth DA],
LJ [auth DA],
MD [auth DA],
ME [auth DA],
MF [auth DA],
MG [auth DA],
MH [auth DA],
MI [auth DA],
MJ [auth DA],
ND [auth DA],
NE [auth DA],
NF [auth DA],
NG [auth DA],
NH [auth DA],
NI [auth DA],
NJ [auth DA],
OD [auth DA],
OE [auth DA],
OF [auth DA],
OG [auth DA],
OH [auth DA],
OI [auth DA],
OJ [auth DA],
PD [auth DA],
PE [auth DA],
PF [auth DA],
PG [auth DA],
PH [auth DA],
PI [auth DA],
PJ [auth DA],
QD [auth DA],
QE [auth DA],
QF [auth DA],
QG [auth DA],
QH [auth DA],
QI [auth DA],
QJ [auth DA],
RD [auth DA],
RE [auth DA],
RF [auth DA],
RG [auth DA],
RH [auth DA],
RI [auth DA],
RJ [auth DA],
SA [auth AD],
SD [auth DA],
SE [auth DA],
SF [auth DA],
SG [auth DA],
SH [auth DA],
SI [auth DA],
SJ [auth DA],
TA [auth AJ],
TD [auth DA],
TE [auth DA],
TF [auth DA],
TG [auth DA],
TH [auth DA],
TI [auth DA],
UD [auth DA],
UE [auth DA],
UF [auth DA],
UG [auth DA],
UH [auth DA],
UI [auth DA],
VD [auth DA],
VE [auth DA],
VF [auth DA],
VG [auth DA],
VH [auth DA],
VI [auth DA],
VJ [auth DB],
WA [auth AP],
WD [auth DA],
WE [auth DA],
WF [auth DA],
WG [auth DA],
WH [auth DA],
WI [auth DA],
WJ [auth DB],
XA [auth AY],
XD [auth DA],
XE [auth DA],
XF [auth DA],
XG [auth DA],
XH [auth DA],
XI [auth DA],
YA [auth AZ],
YD [auth DA],
YE [auth DA],
YF [auth DA],
YG [auth DA],
YH [auth DA],
YI [auth DA],
YJ [auth DC],
ZD [auth DA],
ZE [auth DA],
ZF [auth DA],
ZG [auth DA],
ZH [auth DA],
ZI [auth DA],
ZJ [auth DC]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Modified Residues  3 Unique
IDChains Modified ResidueModification TypeFormula2D Diagram
V5N
Query on V5N
HISHydroxylationC6 H9 N3 O3
MLZ
Query on MLZ
LYSMethylationC7 H16 N2 O2
HIC
Query on HIC
HISMethylationC7 H11 N3 O2

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 1.77 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Swiss National Science FoundationSwitzerlandCRSK-3_220624

Revision History  (Full details and data files)

  • Version 1.0: 2026-09-30
    Type: Initial release
  • Version 1.1: 2026-10-07
    Changes: Data collection, Database references
