28NN | pdb_000028nn

RACB with GTPgS


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:
    0.273 (Depositor), 0.271 (DCC)
  • R-Value Work:
    0.215 (Depositor), 0.215 (DCC)
  • R-Value Observed:
    0.217 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 28NN

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

Nucleotide-dependent switching and RIPb effector recognition of the barley susceptibility factor RACB.

Mohamadi, M.Bradai, M.Janowski, R.Gunsel, U.Tran, M.Kahl, S.M.McCollum, C.Niessing, D.Huckelhoven, R.Hagn, F.

(2026) Commun Biol 9

  • DOI: https://doi.org/10.1038/s42003-026-10316-7
  • Primary Citation Related Structures:
    28NN

  • PubMed Abstract:

    ROP proteins are plant-specific members of the Rho family of small GTPases that orchestrate fundamental signaling pathways controlling cell polarity, directional growth, and immune responses. Although their biological importance is well established, the structural basis underlying their activation and interactions with downstream effectors has remained insufficiently understood. Here, we present an atomic-resolution structural analysis of RACB, a ROP GTPase from barley (Hordeum vulgare) that functions as a key susceptibility factor during fungal infection. Using an integrative approach combining X-ray crystallography, nuclear magnetic resonance spectroscopy, and hydrogen-deuterium exchange mass spectrometry, we capture high-resolution structural and dynamical snapshots of RACB in both its inactive and active conformations. This setup reveals the conformational flexibility and switching mechanism that are central to RACB function. Moreover, the structure of the complex between active RACB and its effector protein RIPb uncovers the fully activated state of RACB and identifies a conserved interaction motif within RIPb that mediates complex formation, providing mechanistic insights into how RIPb can link membrane-associated RACB to the microtubule cytoskeleton to facilitate membrane remodeling processes. These findings establish a detailed structural framework for plant Rho-type GTPase signaling and offer a molecular explanation for how pathogens exploit ROP-mediated pathways to promote infection in plants.


  • Organizational Affiliation
    • Bavarian NMR Center (BNMRZ) and Structural Membrane Biochemistry, Dept. of Bioscience, TUM School of Natural Sciences, Technical University of Munich, Garching, Germany.

Macromolecule Content

  • Total Structure Weight: 134.26 kDa
  • Atom Count: 8,470
  • Modeled Residue Count: 1,067
  • Deposited Residue Count: 1,200
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure

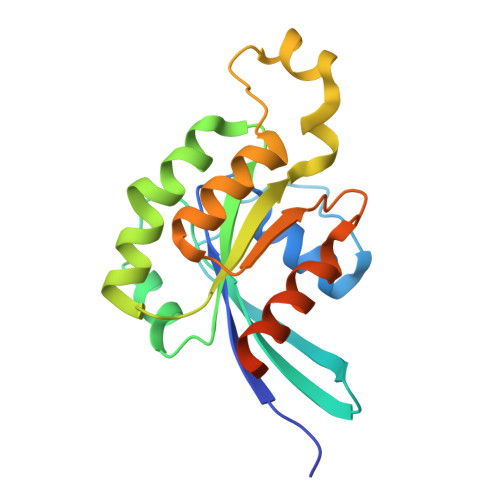

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
RACB protein
A, B, C, D, E
A, B, C, D, E, F
200Hordeum vulgareMutation(s): 0
Gene Names: pRacB
UniProt
Find proteins for Q8RW50 (Hordeum vulgare)
Explore Q8RW50
Go to UniProtKB:  Q8RW50
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8RW50
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GSP
(Subject of Investigation/LOI)

Query on GSP



Download:Ideal Coordinates CCD File
G [auth A]
J [auth B]
L [auth C]
N [auth D]
P [auth E]
G [auth A],
J [auth B],
L [auth C],
N [auth D],
P [auth E],
R [auth F]
5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE
C10 H16 N5 O13 P3 S
XOFLBQFBSOEHOG-UUOKFMHZSA-N
MG

Query on MG



Download:Ideal Coordinates CCD File
H [auth A]
I [auth A]
K [auth B]
M [auth C]
O [auth D]
H [auth A],
I [auth A],
K [auth B],
M [auth C],
O [auth D],
Q [auth E],
S [auth F]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:  0.273 (Depositor), 0.271 (DCC)
  • R-Value Work:  0.215 (Depositor), 0.215 (DCC)
  • R-Value Observed: 0.217 (Depositor)
Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 110.24α = 90
b = 132.51β = 90
c = 196.06γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
SCALAdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)Germany466160427

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-18
    Type: Initial release
  • Version 1.1: 2026-06-03
    Changes: Database references
