23GX | pdb_000023gx

The atomic coordinate of GPI-MT-I complex

PDB DOI: https://doi.org/10.2210/pdb23GX/pdb
EM Map EMD-68960: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Saccharomyces cerevisiae S288C
Expression System: Saccharomyces cerevisiae
Mutation(s): No

Deposited: 2026-02-06 Released: 2026-09-09
Deposition Author(s): Liu, J., Yang, Y.Z., Zhang, M., Yu, H.J.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.90 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation

Currently 23GX does not have a validation slider image.

This is version 1.0 of the entry. See complete history.

Literature

Structure of a membrane-bound glycosyltransferase

Liu, J., Yang, Y.Z., Zhang, M., Yu, H.J.

To be published.

Macromolecule Content

Total Structure Weight: 94.8 kDa
Atom Count: 6,644
Modeled Residue Count: 795
Deposited Residue Count: 795
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

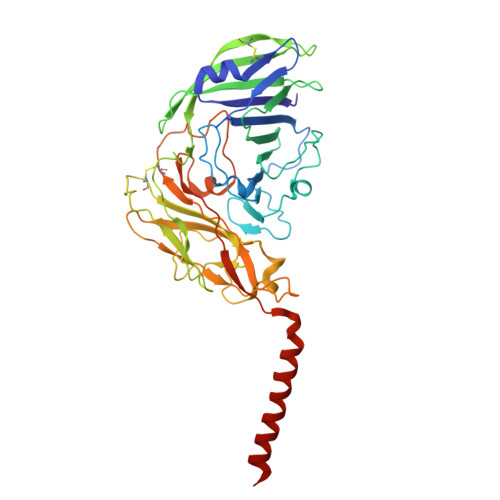

Protein PBN1	A	405	Saccharomyces cerevisiae S288C	Mutation(s): 0 Gene Names: PBN1, YCL052C, YCL52C
UniProt
Find proteins for P25580 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P25580 Go to UniProtKB: P25580
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P25580
Glycosylation
Glycosylation Sites: 3	Glycosylation Focus chain A	Go to GlyGen: P25580-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

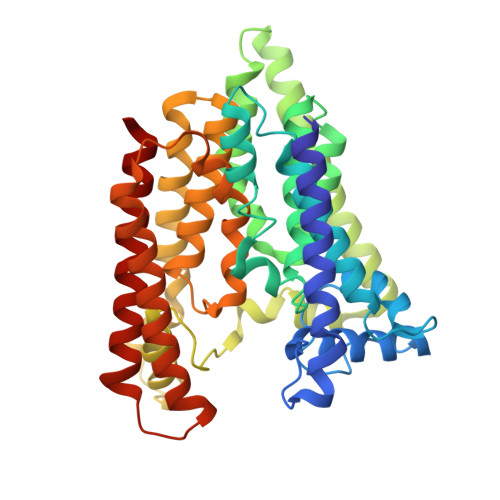

GPI mannosyltransferase 1	B	390	Saccharomyces cerevisiae S288C	Mutation(s): 0 Gene Names: GPI14, PMH1, YJR013W, J1444, YJR83.11 EC: 2.4.1
UniProt
Find proteins for P47088 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P47088 Go to UniProtKB: P47088
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P47088
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	C, D	2	N/A	N-Glycosylation	Interactions Focus chain C Focus chain D Interactions & Density Focus chain C Focus chain D

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E	3	N/A	N-Glycosylation	Interactions Focus chain E Interactions & Density Focus chain E

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MJC( Subject of Investigation/LOI) Query on MJC Download:Ideal Coordinates CCD File SDF format, chain F [auth B] MOL2 format, chain F [auth B] mmCIF format, chain F [auth B]	F [auth B]	dolichyl phosphate mannose C₆₁ H₁₀₃ O₉ P FVCCNKBLEFCPJO-ALFQADJPSA-N		Interactions Focus chain F [auth B] Interactions & Density Focus chain F [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.90 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC

Structure Validation

Currently 23GX does not have a validation slider image.

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-09

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-09-09
Type: Initial release
