 22GE | pdb_000022ge

The structure of HER2-r40-trastuzumab-pertuzumab


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 22GE

This is version 1.0 of the entry. See complete history.

Literature

Inhibition of HER2 signaling and breast cancer cell growth with a novel antibody targeting HER2 ECD III/IV.

Liu, C., Ren, Y., Luo, X., Zhou, P., Du, X., Wang, Q., Han, X., Xu, Y., Wang, P., Zhao, D., Yang, H.

(2026) PLoS One 21: e0338127-e0338127

  • DOI: https://doi.org/10.1371/journal.pone.0338127
  • Primary Citation Related Structures:
    22GC, 22GE

  • PubMed Abstract:

    Human epidermal growth factor receptor 2 (HER2), a ligand-independent tyrosine kinase receptor belonging to the EGFR family, serves as a key oncogenic driver in breast, gastric, and several other solid tumors. Although anti-HER2 therapies have substantially improved survival outcomes-particularly in breast and gastric cancers-treatment resistance and cancer recurrence remain major clinical challenges. Thus, developing novel antibodies exhibiting complementary effects to the current anti-HER2 therapies could provide additional therapeutic benefits. Here, we describe two novel HER2-targeting monoclonal antibodies, m66 (murine-derived) and r40 (rabbit-derived), which inhibit breast cancer cell proliferation in vitro. Of the two, antibody r40 exhibits stronger suppression of the PI3K/AKT and MAPK signaling pathways compared to m66. Moreover, the addition of r40 to the combination of trastuzumab and pertuzumab leads to a significantly enhanced inhibitory effect. We also determined the cryo-EM structures of the HER2-m66-trastuzumab ternary complex and the HER2-r40-trastuzumab-pertuzumab tetrameric complex, at overall resolutions of 3.2 Å and 3.1 Å, respectively. Structural analyses reveal that m66 recognizes an epitope overlapping with that of pertuzumab, whereas r40 binds within the HER2 ECD III/IV-a region distinct from the binding sites of both trastuzumab and pertuzumab. These findings identify r40 as a promising therapeutic candidate for use in combination with trastuzumab and pertuzumab in the treatment of HER2-positive breast cancer.


  • Organizational Affiliation:
    • Fudan University Shanghai Cancer Center, Institutes of Biomedical Sciences, Shanghai Key Laboratory of Radiation Oncology, and Shanghai Key Laboratory of Medical Epigenetics, Shanghai Medical College of Fudan University, Shanghai, China.

Macromolecule Content

  • Total Structure Weight: 227.34 kDa
  • Atom Count: 8,055
  • Modeled Residue Count: 1,638
  • Deposited Residue Count: 2,099
  • Unique protein chains: 7

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

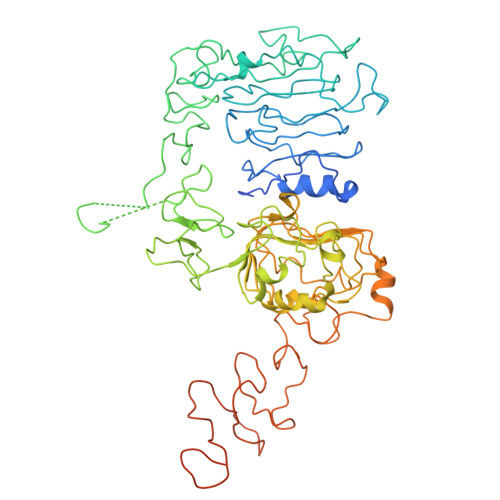

Receptor tyrosine-protein kinase erbB-2664Homo sapiensMutation(s): 0
Gene Names: ERBB2, HER2, MLN19, NEU, NGL
EC: 2.7.10.1
UniProt & NIH Common Fund Data Resources
Find proteins for P04626 (Homo sapiens)
Explore P04626
Go to UniProtKB:  P04626
PHAROS:  P04626
GTEx:  ENSG00000141736
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04626
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

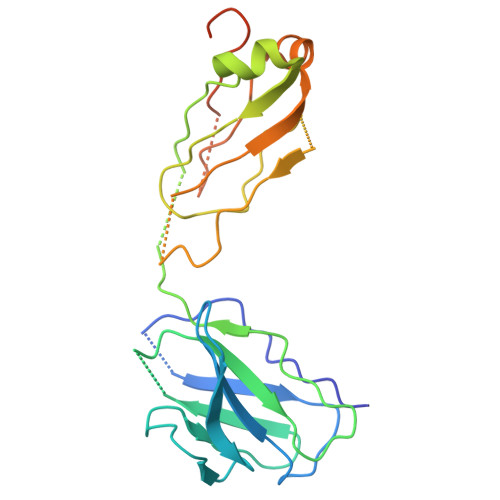

Pertuzumab FAB LIGHT CHAIN236Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

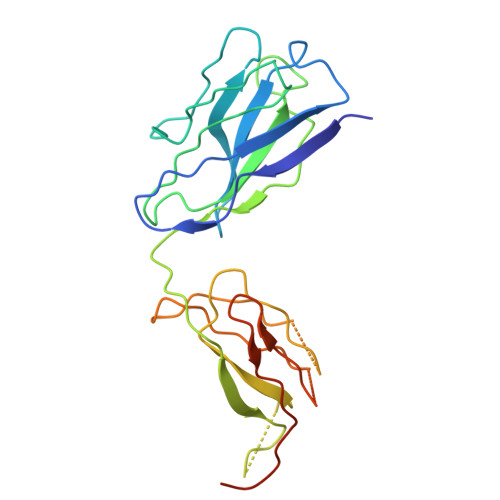

Pertuzumab FAB HEAVY CHAIN235Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

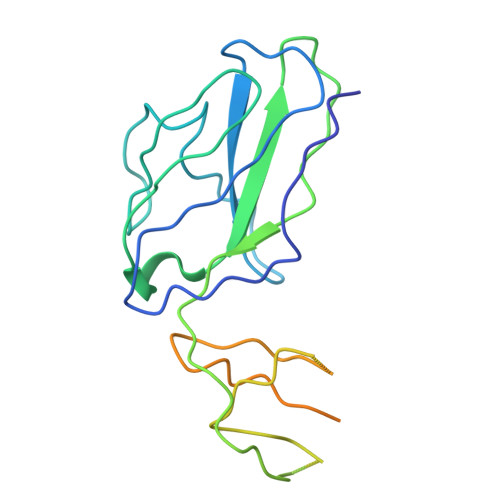

Trastuzumab FAB LIGHT CHAIN236Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

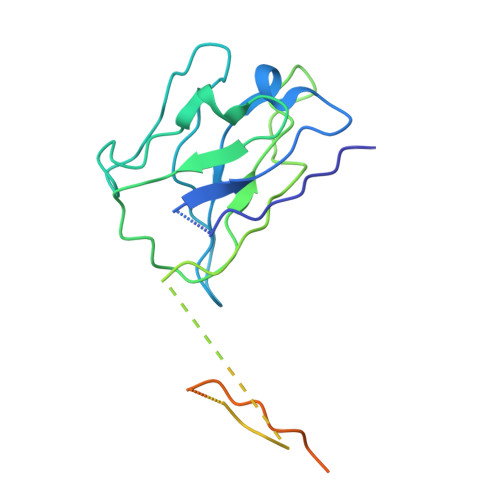

Trastuzumab FAB HEAVY CHAIN236Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

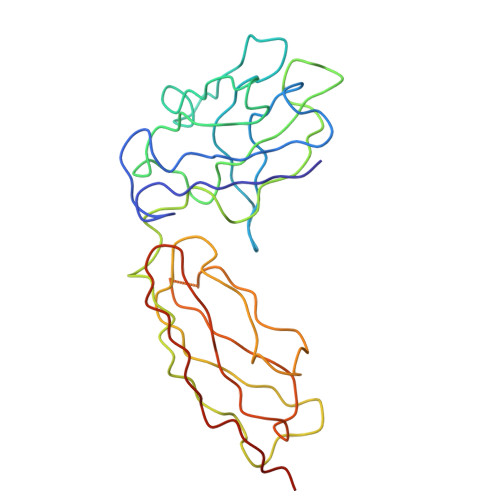

r40 (rabbit-derived) HEAVY CHAINF [auth G]237Oryctolagus cuniculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

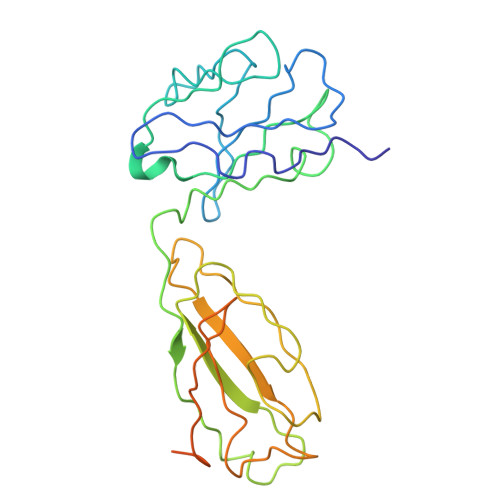

r40 (rabbit-derived) LIGHT CHAING [auth H]255Oryctolagus cuniculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.1_5286
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2026-10-28
    Type: Initial release
