22EE | pdb_000022ee

Structure of HLA-A2:01 with 9-mer peptide PGS

PDB DOI: https://doi.org/10.2210/pdb22EE/pdb

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens, Toxoplasma gondii
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2026-01-07 Released: 2026-06-24
Deposition Author(s): Li, Z.B., Liang, R.Y.
Funding Organization(s): Ministry of Science and Technology (MoST, China)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.99 Å
R-Value Free:
0.232 (Depositor)
R-Value Work:
0.193 (Depositor)
R-Value Observed:
0.196 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation

Currently 22EE does not have a validation slider image.

This is version 1.0 of the entry. See complete history.

Literature

Structure of HLA-A2:01 with the 9-mer peptide PGS

Li, Z.B., Liang, R.Y.

To be published.

Macromolecule Content

Total Structure Weight: 44.89 kDa
Atom Count: 3,406
Modeled Residue Count: 383
Deposited Residue Count: 385
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

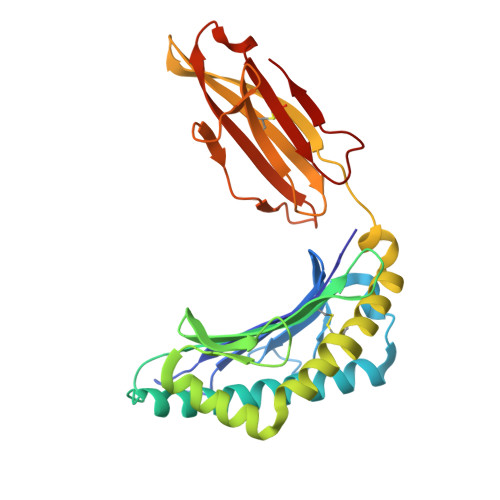

HLA class I antigen	A	276	Homo sapiens	Mutation(s): 0 Gene Names: HLA-A
UniProt
Find proteins for Q53Z42 (Homo sapiens) Explore Q53Z42 Go to UniProtKB: Q53Z42
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q53Z42
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

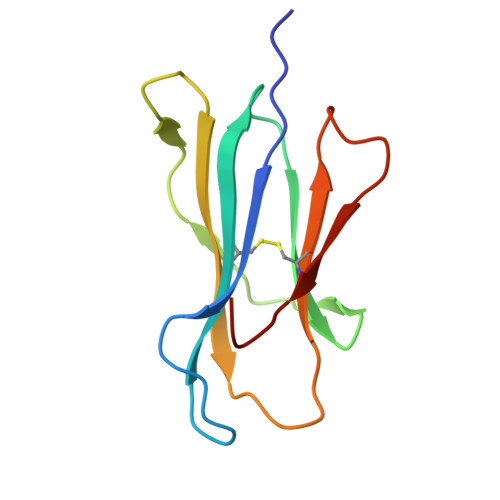

Beta-2-microglobulin	B	100	Homo sapiens	Mutation(s): 0 Gene Names: B2M, CDABP0092, HDCMA22P
UniProt & NIH Common Fund Data Resources
Find proteins for P61769 (Homo sapiens) Explore P61769 Go to UniProtKB: P61769
PHAROS: P61769 GTEx: ENSG00000166710
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P61769
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

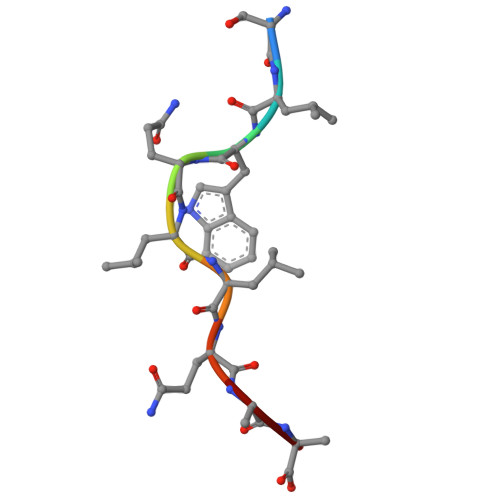

9-mer peptide from T. gondii glycogen synthase	C	9	Toxoplasma gondii	Mutation(s): 0

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.99 Å
R-Value Free: 0.232 (Depositor)
R-Value Work: 0.193 (Depositor)
R-Value Observed: 0.196 (Depositor)

Space Group: I 4

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 123.398	α = 90
b = 123.398	β = 90
c = 64.593	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-3000	data reduction
HKL-3000	data scaling
PHASER	phasing

Structure Validation

Currently 22EE does not have a validation slider image.

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-06-24

Deposition Author(s):

Funding Organization	Location	Grant Number
Ministry of Science and Technology (MoST, China)	China	2024YFD1800303

Revision History (Full details and data files)

Version 1.0: 2026-06-24
Type: Initial release
