21TL | pdb_000021tl

Enterovirus 71 Polymerase Elongation Complex with a remdesivir nucleotide at product strand positions +1 (C1S5 form)

• PDB DOI: https://doi.org/10.2210/pdb21TL/pdb
• NAKB: 21TL

• Classification: TRANSFERASE
• Organism(s): Enterovirus A71, synthetic construct
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2025-12-23 Released: 2026-10-07
• Deposition Author(s): Wang, M., Li, R., Gong, P.
• Funding Organization(s): Ministry of Science and Technology (MoST, China)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.70 Å
• R-Value Free:
  0.249 (Depositor), 0.250 (DCC)
• R-Value Work:
  0.217 (Depositor), 0.217 (DCC)
• R-Value Observed:
  0.219 (Depositor)

Starting Model: experimental

Literature

Highly effective viral RdRP translocation hindrance by the remdesivir nucleotide

Li, R., Shao, Q., Wang, M., Feng, C., Xu, Q., Wang, Q., Shang, L.

(2026) Nucleic Acids Res

• DOI: https://doi.org/10.1093/nar/gkag957

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 69.62 kDa
• Atom Count: 4,272
• Modeled Residue Count: 489
• Deposited Residue Count: 516
• Unique protein chains: 1
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

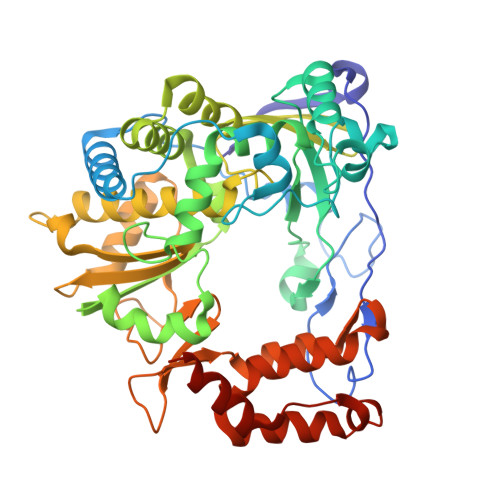

Enterovirus 71 polymerase	A	468	Enterovirus A71	Mutation(s): 0  EC: 3.4.22.29 (PDB Primary Data), 3.6.1.15 (PDB Primary Data), 3.4.22.28 (PDB Primary Data), 2.7.7.48 (PDB Primary Data)
UniProt
Find proteins for Q5DW46 (Human enterovirus 71) Explore Q5DW46  Go to UniProtKB:  Q5DW46

Entity ID: 2
Molecule	Chains	Length	Organism	Image

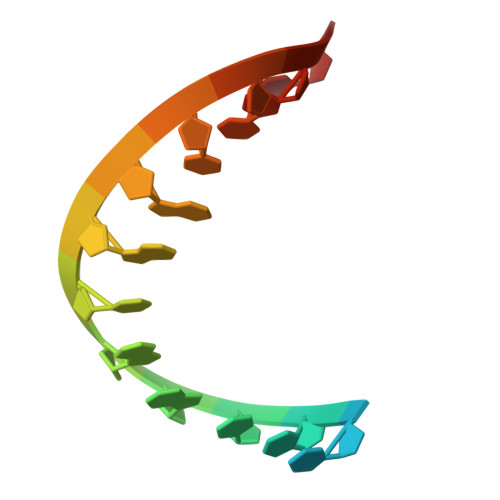

RNA (5'-R(*UP*GP*UP*UP*CP*GP*AP*CP*GP*AP*CP*UP*CP*U*(F86))-3')	B [auth C]	15	synthetic construct

Entity ID: 3
Molecule	Chains	Length	Organism	Image

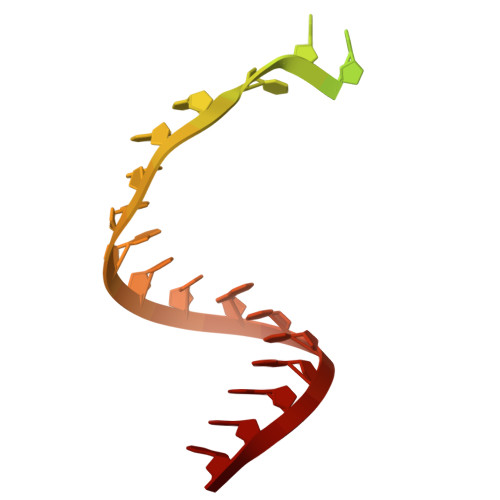

RNA (33-MER)	C [auth B]	33	synthetic construct

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
F86 (Subject of Investigation/LOI)	G [auth C]	[(2~{R},3~{S},4~{R},5~{R})-5-(4-azanylpyrrolo[2,1-f][1,2,4]triazin-7-yl)-5-cyano-3,4-bis(oxidanyl)oxolan-2-yl]methyl dihydrogen phosphate C12 H14 N5 O7 P ZBHOHJWLOOFLMW-LTGWCKQJSA-N
SO4	D [auth A], E [auth A]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L
ZN	F [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.70 Å
• R-Value Free:  0.249 (Depositor), 0.250 (DCC)
• R-Value Work:  0.217 (Depositor), 0.217 (DCC)
• R-Value Observed: 0.219 (Depositor)

Space Group: P 6₅ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 77.643	α = 90
b = 77.643	β = 90
c = 490.226	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
PHENIX	refinement
HKL-2000	data scaling
PHENIX	phasing
HKL-2000	data reduction

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-10-07
Deposition Author(s): Wang, M., Li, R., Gong, P.

---

Funding Organization	Location	Grant Number
Ministry of Science and Technology (MoST, China)	China	2022YFC2303300

Revision History

• Version 1.0: 2026-10-07
  Type: Initial release
