1IYL | pdb_00001iyl

Crystal Structure of Candida albicans N-myristoyltransferase with Non-peptidic Inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.20 Å
  • R-Value Free:
    0.366 (Depositor)
  • R-Value Work:
    0.284 (Depositor)
  • R-Value Observed:
    0.288 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 1IYL

This is version 1.3 of the entry. See complete history

Literature

Crystal Structures of Candida albicans N-Myristoyltransferase with Two Distinct Inhibitors

Sogabe, S.Masubuchi, M.Sakata, K.Fukami, T.A.Morikami, K.Shiratori, Y.Ebiike, H.Kawasaki, K.Aoki, Y.Shimma, N.D'Arcy, A.Winkler, F.K.Banner, D.W.Ohtsuka, T.

(2002) Chem Biol 9: 1119-1128

  • DOI: https://doi.org/10.1016/s1074-5521(02)00240-5
  • Primary Citation Related Structures:
    1IYK, 1IYL

  • PubMed Abstract:

    Myristoyl-CoA:protein N-myristoyltransferase (Nmt) is a monomeric enzyme that catalyzes the transfer of the fatty acid myristate from myristoyl-CoA to the N-terminal glycine residue of a variety of eukaryotic and viral proteins. Genetic and biochemical studies have established that Nmt is an attractive target for antifungal drugs. We present here crystal structures of C. albicans Nmt complexed with two classes of inhibitor competitive for peptide substrates. One is a peptidic inhibitor designed from the peptide substrate; the other is a nonpeptidic inhibitor having a benzofuran core. Both inhibitors are bound into the same binding groove, generated by some structural rearrangements of the enzyme, with the peptidic inhibitor showing a substrate-like binding mode and the nonpeptidic inhibitor binding differently. Further, site-directed mutagenesis for C. albicans Nmt has been utilized in order to define explicitly which amino acids are critical for inhibitor binding. The results suggest that the enzyme has some degree of flexibility for substrate binding and provide valuable information for inhibitor design.


  • Organizational Affiliation
    • Nippon Roche Research Center, 200 Kajiwara, Kamakura, Kanagawa 247-8530, Japan. satoshi.sogabe@roche.com

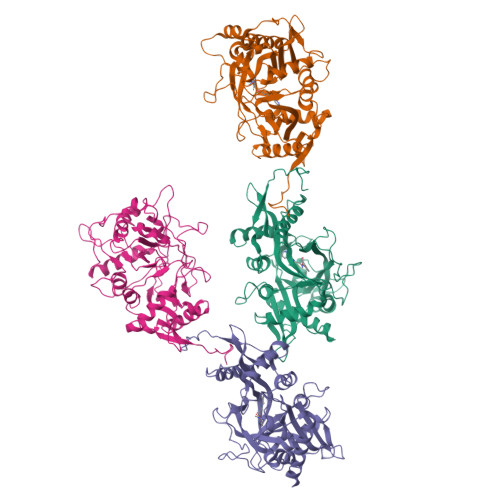

Macromolecule Content

  • Total Structure Weight: 182.9 kDa
  • Atom Count: 12,597
  • Modeled Residue Count: 1,525
  • Deposited Residue Count: 1,568
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Myristoyl-CoA:Protein N-Myristoyltransferase
A, B, C, D
392Candida albicansMutation(s): 0
EC: 2.3.1.97
UniProt
Find proteins for P30418 (Candida albicans (strain SC5314 / ATCC MYA-2876))
Explore P30418
Go to UniProtKB:  P30418
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30418
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
R64

Query on R64



Download:Ideal Coordinates CCD File
E [auth A],
F [auth B],
G [auth C]
(1-METHYL-1H-IMIDAZOL-2-YL)-(3-METHYL-4-{3-[(PYRIDIN-3-YLMETHYL)-AMINO]-PROPOXY}-BENZOFURAN-2-YL)-METHANONE
C23 H24 N4 O3
VZBQJKIOAOUYJL-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
R64 BindingDB:  1IYL IC50: 1 (nM) from 1 assay(s)

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.20 Å
  • R-Value Free:  0.366 (Depositor)
  • R-Value Work:  0.284 (Depositor)
  • R-Value Observed: 0.288 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 93.277α = 90
b = 96.885β = 90
c = 269.277γ = 90
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
AMoREphasing
CNXrefinement

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2002-12-30
    Type: Initial release
  • Version 1.1: 2008-04-27
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Derived calculations, Version format compliance
  • Version 1.3: 2023-10-25
    Changes: Data collection, Database references, Derived calculations, Refinement description
