11AA | pdb_000011aa

Yeast co-transcriptional pre-60S assembly intermediate Nop12 RNP

  • Classification: RIBOSOME
  • Organism(s): Saccharomyces cerevisiae S288C
  • Mutation(s): No

  • Deposited: 2026-02-13 Released: 2026-07-01
  • Deposition Author(s): Piwowarczyk, R., Klinge, S.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), Chan Zuckerberg Initiative

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.78 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 11AA

This is version 1.0 of the entry. See complete history.

Literature

Mechanism for the initiation of co-transcriptional pre-60 S assembly.

Piwowarczyk, R., Klinge, S.

(2026) bioRxiv

  • DOI: https://doi.org/10.64898/2026.05.22.727207
  • Primary Citation Related Structures:
    10ZY, 10ZZ, 11AA

  • PubMed Abstract:

    Eukaryotic ribosomal large subunit (60 S ) assembly requires an internal transcribed spacer 2 (ITS2) to license both nucleolar and nuclear pre-60 S assembly intermediates. The underlying molecular mechanisms responsible for nucleation of pre-60 S assembly, quality control, and installation of ITS2 during co-transcriptional stages remain unknown. Here we report the earliest co-transcriptional assembly intermediates of the eukaryotic 60 S subunits. Together with biochemical assays, our data reveal the architecture of co-transcriptional pre-60 S assembly initiation and progression, as well as the molecular logic of an assembly checkpoint. This study highlights an evolutionary solution by which complex RNA folding processes can be parallelized and integrated via biological AND-gating.

Macromolecule Content

  • Total Structure Weight: 1,795.11 kDa
  • Atom Count: 29,525
  • Modeled Residue Count: 3,047
  • Deposited Residue Count: 8,789
  • Unique protein chains: 14
  • Unique nucleic acid chains: 3

Macromolecules


Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

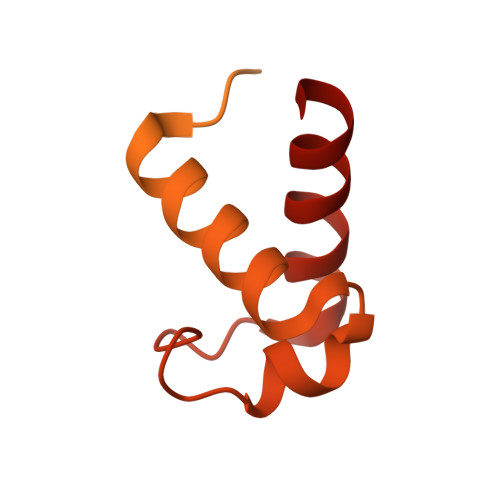

Nucleolar protein 16D [auth 7]231Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P40007 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40007
Go to UniProtKB:  P40007
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40007
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L8-AE [auth G]256Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P17076 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P17076
Go to UniProtKB:  P17076
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP17076
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

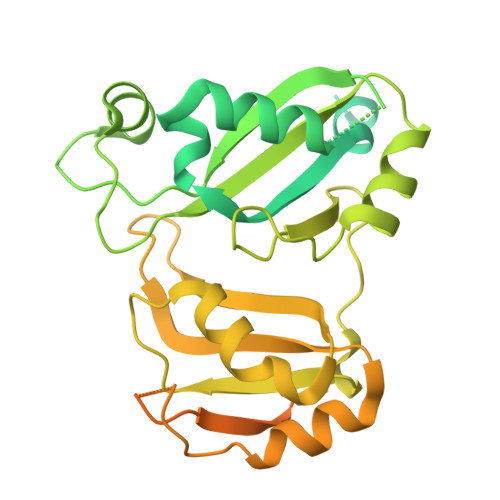

Nucleolar protein 12F [auth H]459Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for Q08208 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q08208
Go to UniProtKB:  Q08208
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ08208
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

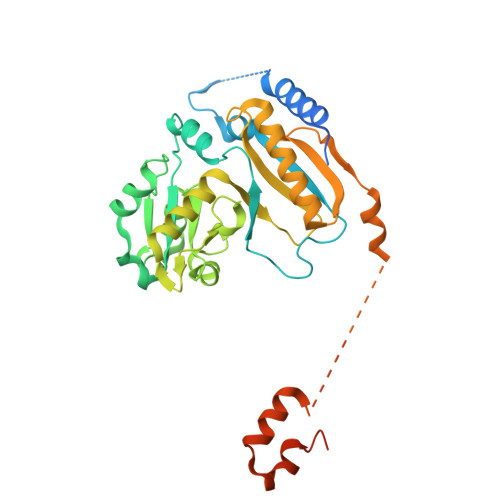

Proteasome-interacting protein CIC1G [auth K]376Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P38779 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38779
Go to UniProtKB:  P38779
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38779
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

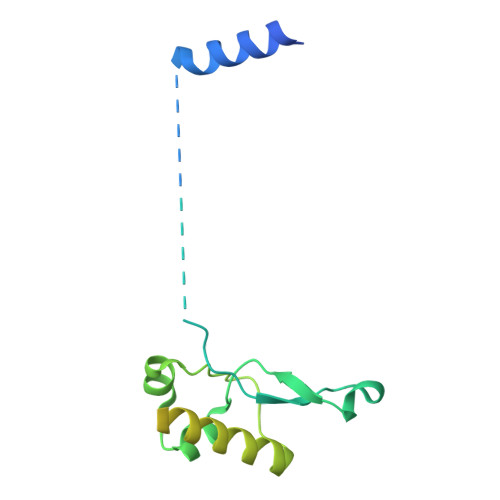

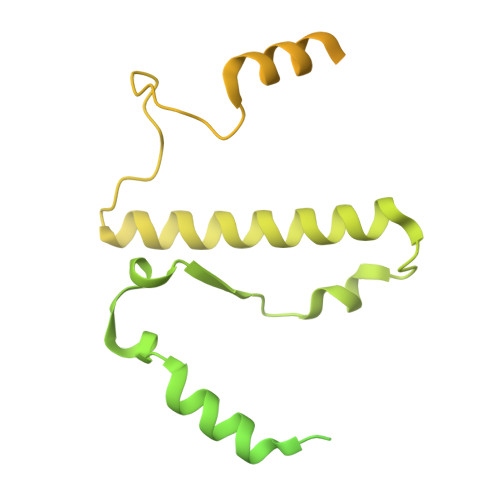

60S ribosomal protein L13-AH [auth L]199Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for Q12690 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q12690
Go to UniProtKB:  Q12690
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ12690
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage
60S ribosomal protein L15-AI [auth N]204Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P05748 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P05748
Go to UniProtKB:  P05748
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP05748
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage

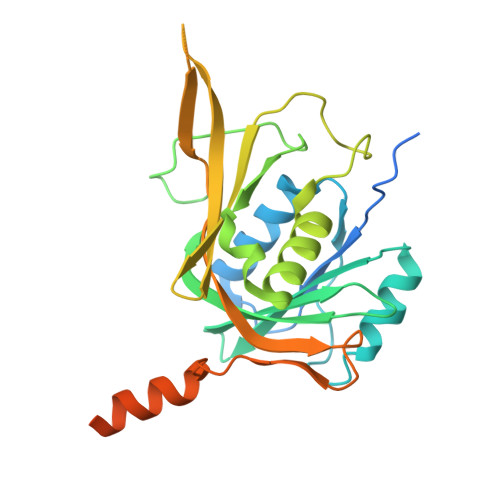

Ribosome biogenesis protein BRX1J [auth b]291Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for Q08235 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q08235
Go to UniProtKB:  Q08235
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ08235
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage

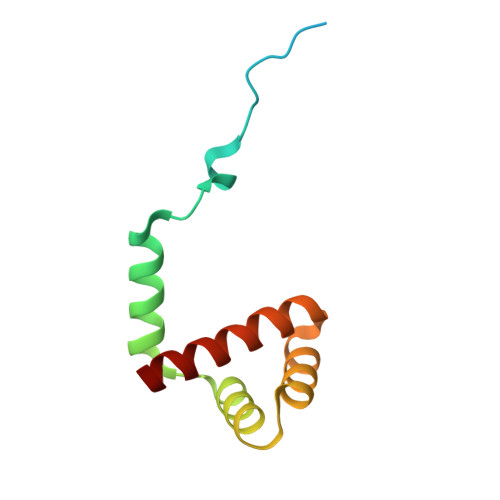

60S ribosomal protein L36-AK [auth i]100Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P05745 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P05745
Go to UniProtKB:  P05745
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP05745
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage
rRNA-processing protein EBP2L [auth m]427Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P36049 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P36049
Go to UniProtKB:  P36049
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP36049
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage

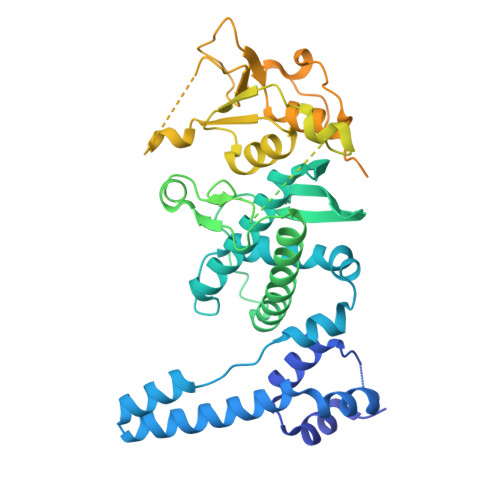

Pescadillo homologM [auth n]605Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P53261 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P53261
Go to UniProtKB:  P53261
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53261
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage

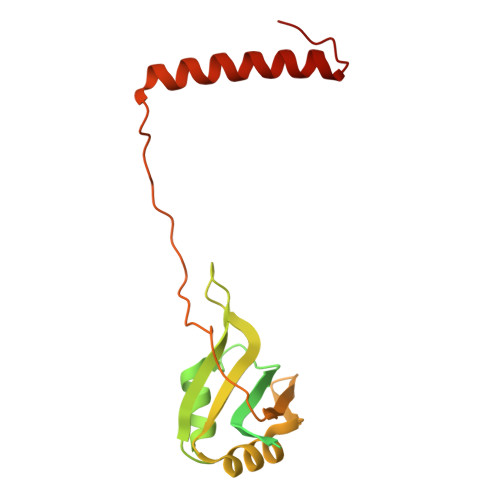

Ribosome biogenesis protein 15N [auth o]220Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P53927 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P53927
Go to UniProtKB:  P53927
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53927
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage

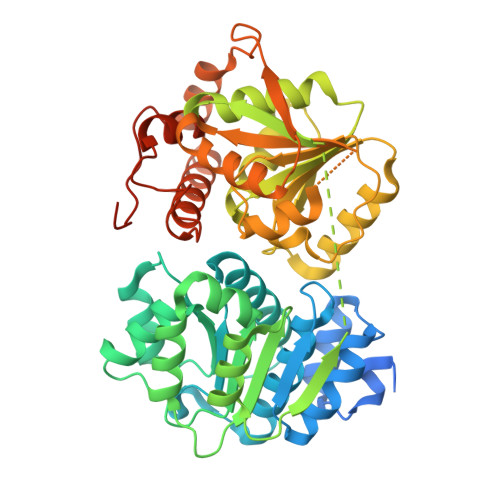

ATP-dependent RNA helicase HAS1O [auth p]505Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.6.4.13
UniProt
Find proteins for Q03532 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q03532
Go to UniProtKB:  Q03532
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ03532
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 16
MoleculeChains  Sequence LengthOrganismDetailsImage

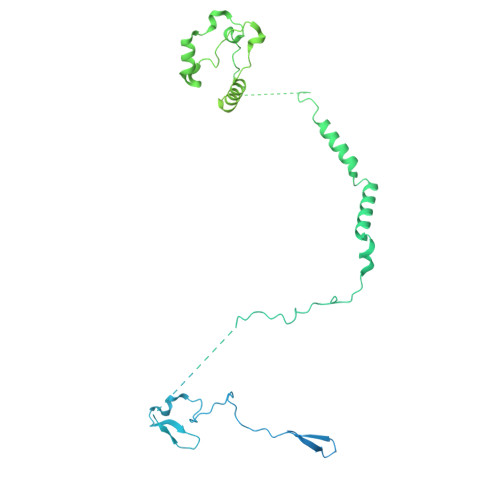

Ribosome biogenesis protein ERB1P [auth s]807Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for Q04660 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q04660
Go to UniProtKB:  Q04660
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ04660
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 17
MoleculeChains  Sequence LengthOrganismDetailsImage
Ribosome biogenesis protein RLP7Q [auth t]322Saccharomyces cerevisiae S288CMutation(s): 0
UniProt
Find proteins for P40693 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40693
Go to UniProtKB:  P40693
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40693
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 1
MoleculeChains LengthOrganismImage

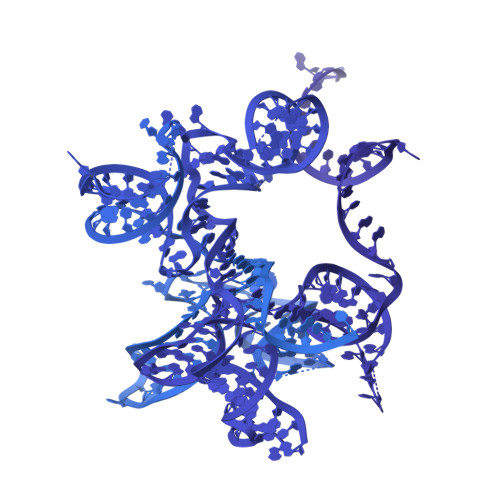

25S ribosomal RNAA [auth 1]3,396Saccharomyces cerevisiae S288C
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 2
MoleculeChains LengthOrganismImage

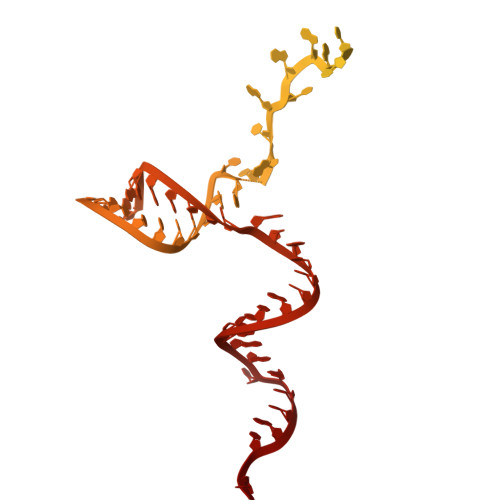

5.8S ribosomal RNAB [auth 2]159Saccharomyces cerevisiae S288C
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 3
MoleculeChains LengthOrganismImage

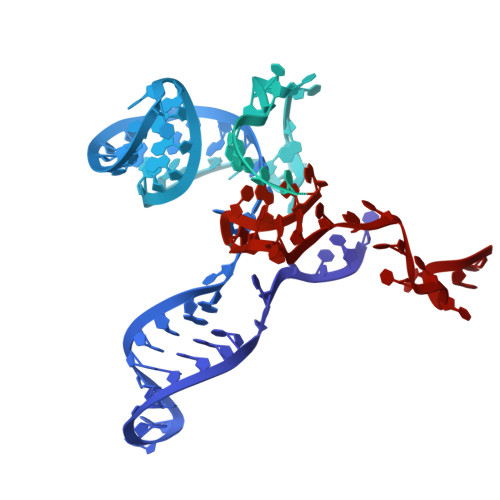

Internal transcribed spacer 2 ITS2C [auth 3]232Saccharomyces cerevisiae S288C
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.78 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC
MODEL REFINEMENTISOLDE
MODEL REFINEMENTPHENIX1.19.1_4122

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States5R01GM145950-03
Chan Zuckerberg InitiativeUnited States2023-332391

Revision History  (Full details and data files)

  • Version 1.0: 2026-07-01
    Type: Initial release
